Typical Industrial GroWeather/EnviroMonitor Installation

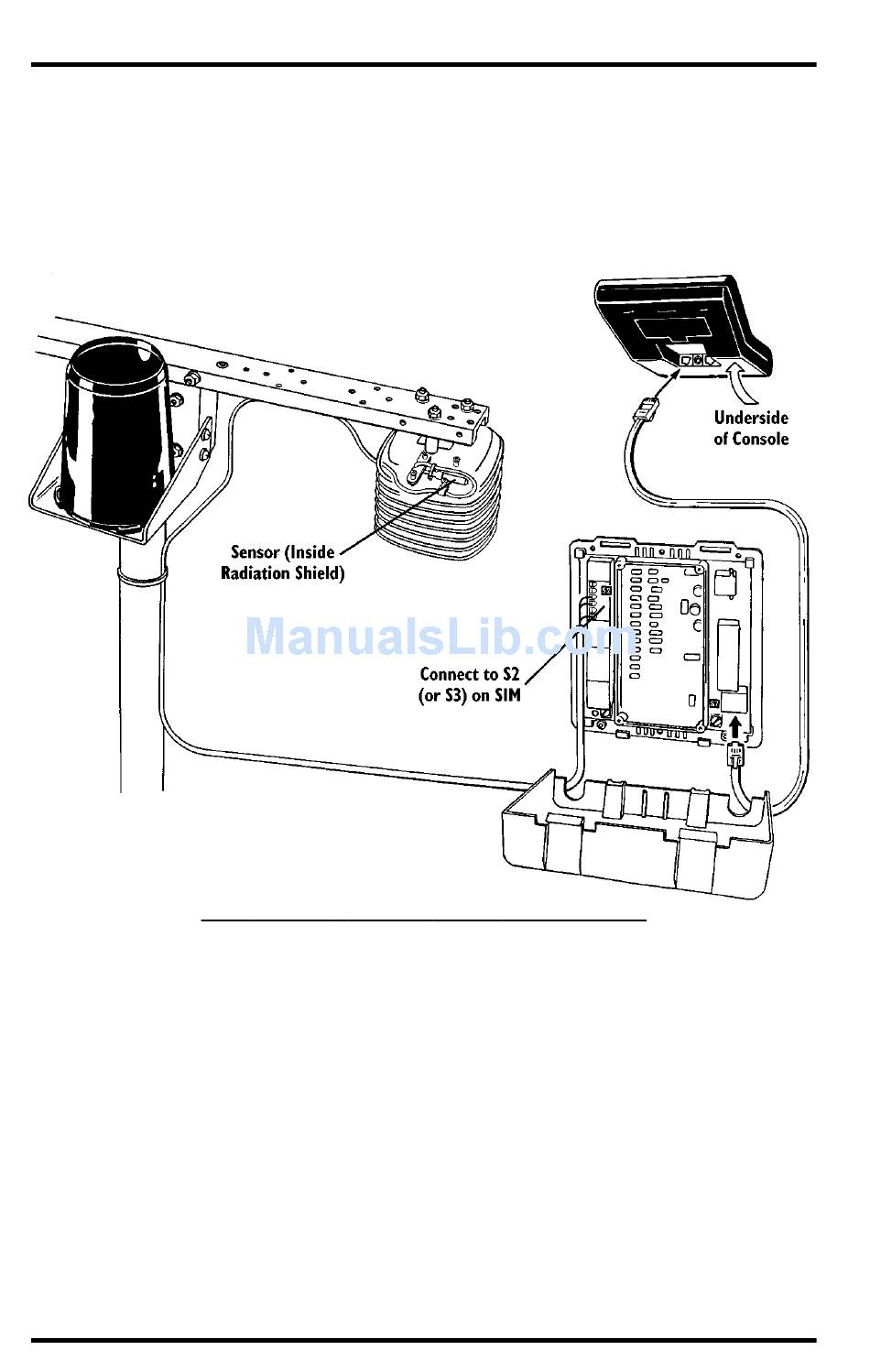

The illustration below shows a typical industrial installation for the
GroWeather (used to measure air temperature), Energy EnviroMonitor, or the
Health EnviroMonitor. The sensor cable attaches to connector S2 on the sensor
interface module (SIM). On GroWeather systems, the sensor can also attach to
connector S3 to measure a second temperature (such as soil temperature).
Page 4
T I G W
YPICAL NDUSTRIAL RO
/E M
EATHER NVIRO ONITOR
I
NSTALLATION
Stainless Steel Temperature Probe
