DAVIS Surge Protector Shelter (Small) User Manual

Small surge protector shelter

Download this manual

The weather-resistant Small Surge Protector Shelter (simply referred to as the

shelter in this manual) provides protection from the elements for Surge Protec-

tors when located outside. The shelter can accommodate one or two Surge Pro-

tectors, protecting two to four wires.

CAUTION: Please note that we have made every attempt to provide a safe product, but Davis Instruments

assumes no liability for any injury or damage caused directly or indirectly by the installation or

use of this product.

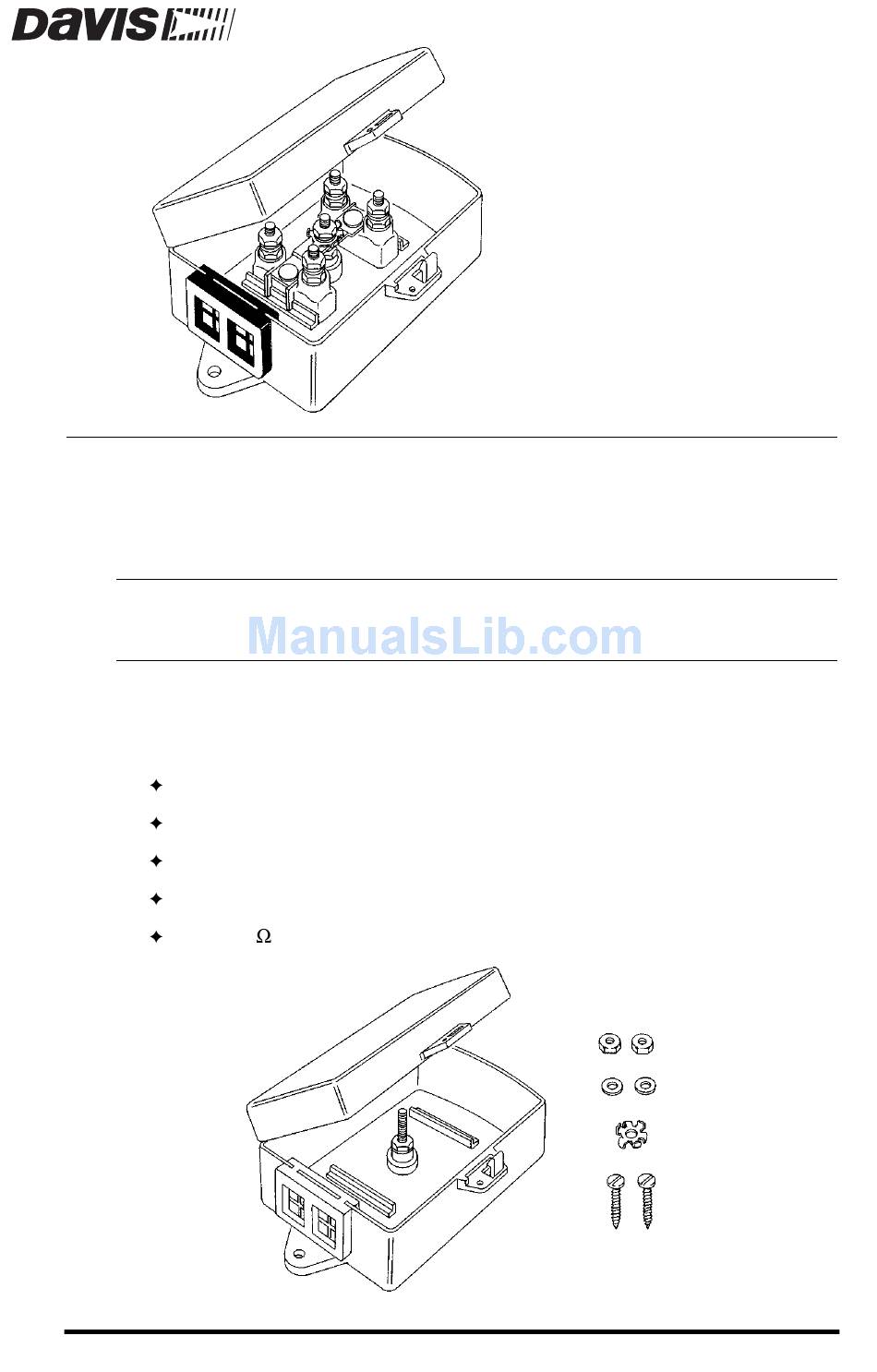

OMPONENTS

Please make sure that you have listed components before continuing.

Enclosure

Two #10-32 Brass Hex Nuts

Two Flat Washers

Locking Washer

Two #8 x " (19 mm) self-tapping screws

M A L L

R O T E C T O R

H E L T E R

U R G E

Product #7768

Page 1 The shelter can accommodate one or two Surge Pro- tectors, protecting two to four wires. CAUTION: Please note that we have made every attempt to provide a safe product, but Davis Instruments assumes no liability for any injury or damage caused directly or indirectly by the installation or use of this product.
Page 2 In addition to the components listed above, you may need the following tools and materials. Please be sure you have everything you need before beginning the installation. Surge Protectors (Davis Product #7767) The Small Surge Protector Shelter may house up to two Surge Protectors. Medium Flat Head Screwdriver...
Page 3 1. Route the ground wire through the grommet at the base of the shelter and attach to a suitable ground, such as Davis’s Grounding Kit (#7780). 2. Prepare the cables by cutting the modular connector off (if using standard cable), stripping 1”...
Page 4 Davis Instruments Part Number: 7395-107 Small Surge Protector Shelter Rev. A Manual (7/8/99) This product complies with the essential protection requirements of the EC EMC Directive 89/336/EC. © Davis Instruments Corp. 1996. All rights reserved. TTACHING IRES TO THE URGE ROTECTORS...
