The Short Range Modem Pair (simply referred to as the SR Modems in this
manual) allows you to transmit data from Davis' WeatherLink
(which are attached to a station console) over twisted-pair cable to a PC at a
distance of up to 7 miles (11 km).
CAUTION:Please note that we have made every attempt to provide a safe product, but Davis
Instruments assumes no liability for any injury or damage caused directly or indirectly
by the installation or use of this product.
C
OMPONENTS

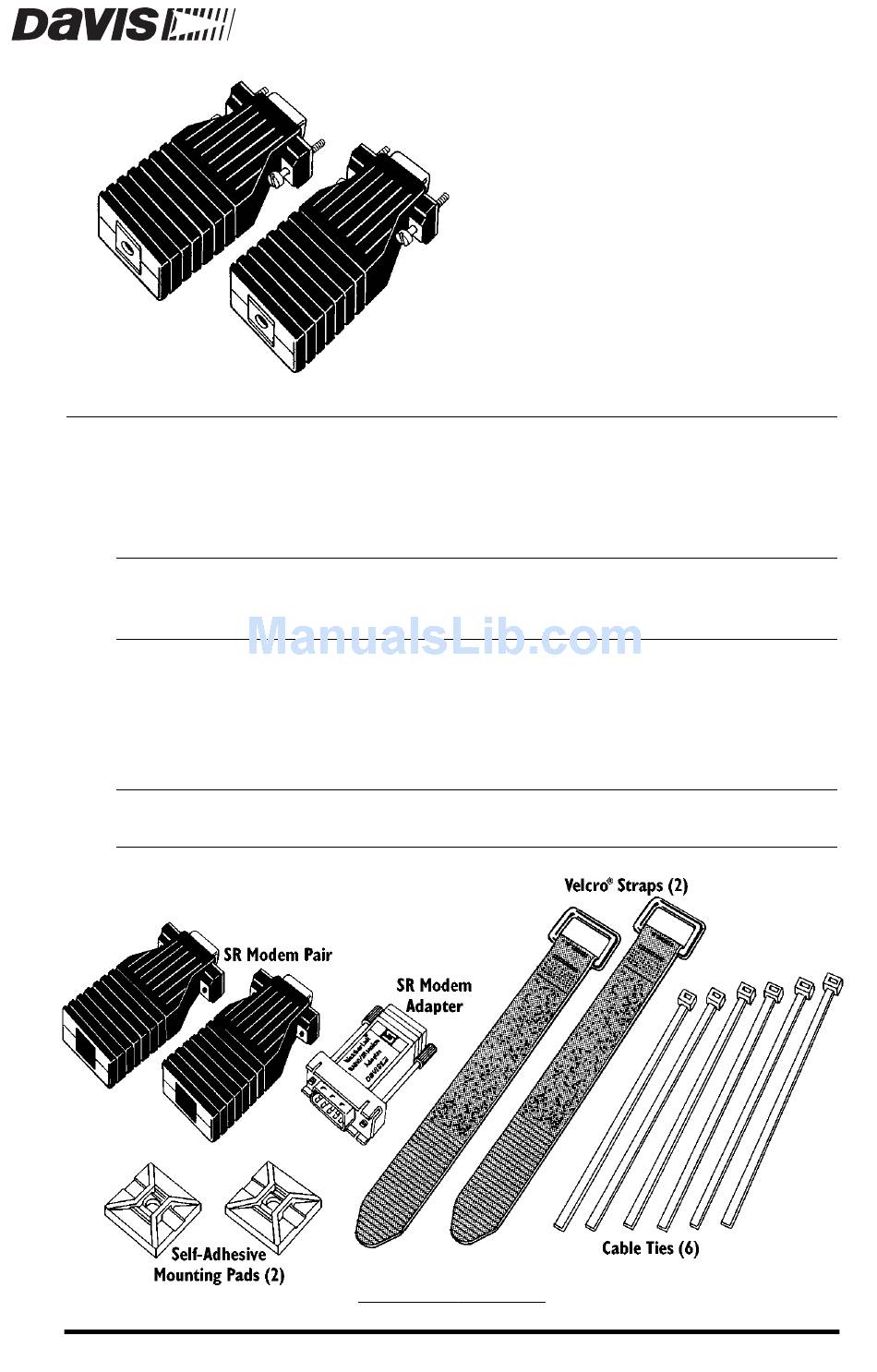

The SR Modem includes the components shown below. Please make sure that
you have all the listed components before continuing.
Note: Not shown below is the hardware and manual supplied with the SR Modems. You will need
them to complete the installation, however.
S
H O R T
M
O D E M
SR M
C
ODEM
OMPONENTS
-R
A N G E
P
A I R
®
data loggers
Product #7875

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Short-Range Modem Pair and is the answer not in the manual?

Questions and answers

Summary of Contents for DAVIS Short-Range Modem Pair

  • Page 1 (which are attached to a station console) over twisted-pair cable to a PC at a distance of up to 7 miles (11 km). CAUTION:Please note that we have made every attempt to provide a safe product, but Davis Instruments assumes no liability for any injury or damage caused directly or indirectly by the installation or use of this product.
  • Page 2 Rev. D (or later) WeatherLink. Check the manufacturing code on the underside of the WeatherLink; if it begins with the letter(s) L, LB, or LC, contact Davis for information on swapping your WeatherLink for the lat- est version. 2-Twisted-Pair Cable You will need a length of 2-twisted-pair cable to run between the SR Modems.
  • Page 3 NSTALLING THE The SR Modem needs to be installed in a protected location, such as the Com- plete System Shelter (Davis Product # 7724). Typical Windows™-Based Computer Connection The illustration below shows a typical SR Modem connection to a Windows- based computer.
  • Page 4 For greatest communication range, use unshielded cable. If shielding is desired (for noise suppression), ground the drain wire at the computer end of the connection only. Page 4 TTACHING ELCRO TRAPS TO CSS P ANEL Short-Range Modem Pair...
  • Page 5 7. Attach the SR Modem Adapter to the SR Modem. TTACHING 8. Secure the SR Modem and SR Modem Adapter to the CSS Panel by placing them on top of the Velcro straps and tightening the straps as shown below. 9.
  • Page 6 14.Attach the second self-adhesive mounting pad onto the CSS panel as shown below. 15.Connect the WeatherLink to the console and attach the console to the CSS panel (consult the necessary manuals for instructions). Page 6 ECURING WISTED ABLE TTACHING EATHER ABLE Short-Range Modem Pair...
  • Page 7 16.Bundle the excess WeatherLink cable together and position the bundle over the mounting pad as shown below. 17.Slide a cable tie into the mounting pad and secure the WeatherLink cable to the mounting pad by tightening the cable tie. Cut off any excess cable tie. 18.Go to the other end of the twisted-pair cable and attach the twisted pair cable to the terminal block on the second SR Modem.
  • Page 8 (Davis Product # 7767) housed in a Small Surge Protector Shelter (Davis Product #7768) are well-suited for this. If the cable is exposed, we sug- gest the use of one pair of surge protectors where the cable enters the building containing the computer.
