Summary of Contents for DAVIS SONIC-ANEMO-DZP

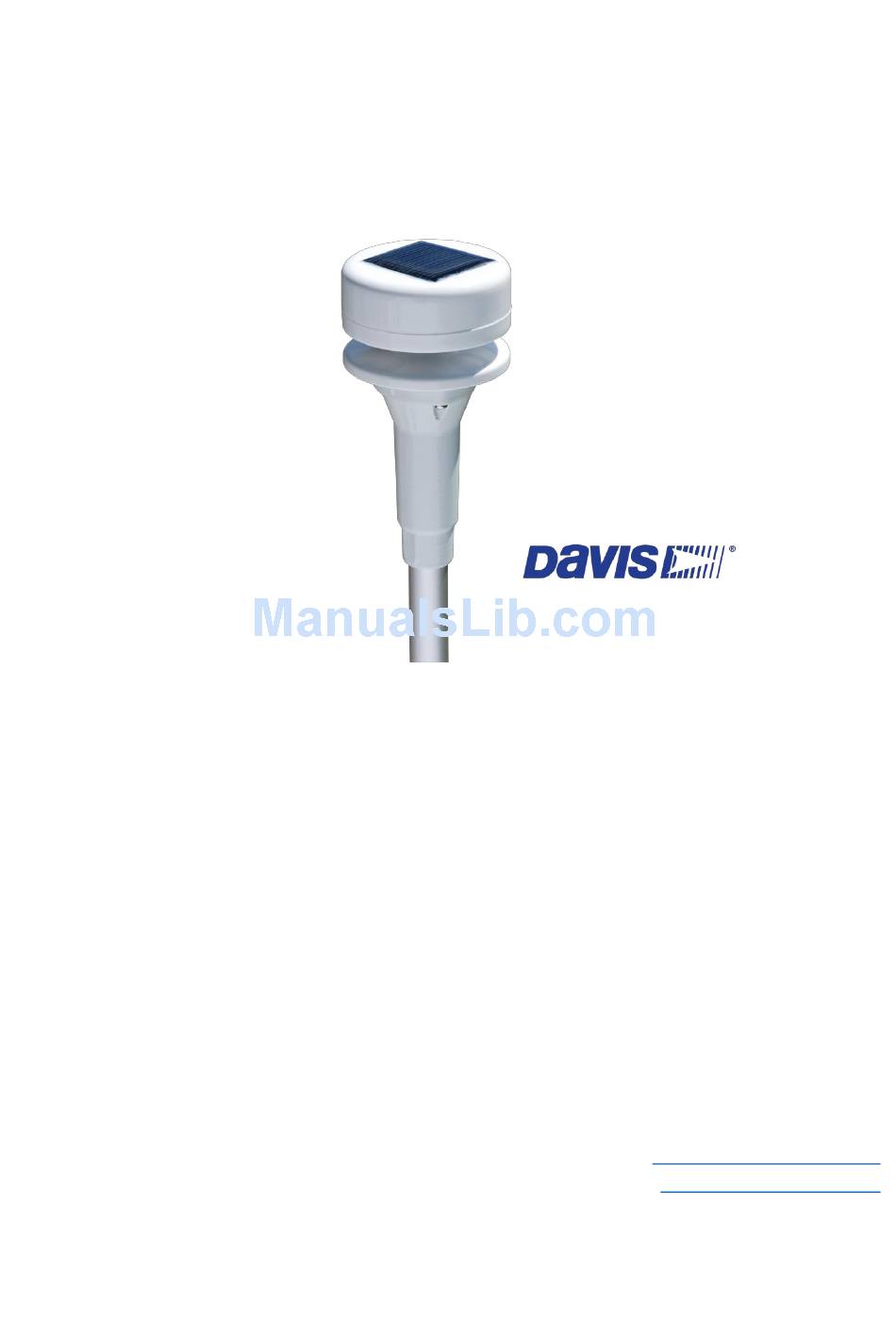

- Page 1 SONIC-ANEMO-DZP Ultrasonic wind-vane anemometer compatible with Davis Equipment User Manual 07/11/2016 rev2.1 LCJ Capteurs ZA Le Chêne Ferré 44120 VERTOU (France) Tel: +33 (0)2 40 05 08 55 http://www.lcjcapteurs.com contacts@lcjcapteurs.com...
- Page 2 CAPTEURS does not assume any responsibility for any damage and/or injury resulting from the use of the product described in this manual. Logos and images of Davis Instruments Corp. are used with their kind permission. Davis is a trade mark of Davis Instruments Corp. www.davisnet.com...
- Page 3 SONIC-ANEMO-DZP ZERO-POWER ULTRASONIC WIND VANE / ANEMOMETER Thank you for purchasing our SONIC-ANEMO-DZP sensor. This ultrasonic sensor is simple to use and does not require any external power supply thanks to its solar panel which allows full operation independently. The measurement rate of one per second gives you a clear vision of gusts.
-
Page 4: Table Of Contents
Alignement du capteur ..........................4 Mode de fixation .............................4 Câblage ................................5 Alimentation ..............................5 Connexion à l’ISS Davis VP2 .........................5 Configuration de la station DAVIS VP2 ......................5 Mise en route ..............................6 Maintenance ..............................6 Remplacement de la batterie ..........................6 Spécifications techniques ..........................7 Déclaration de conformité ..........................8... -
Page 5: Généralités
1. General information About this manual This manual brings all the required information to install and use the SONIC-ANEMO-DZP for Davis VP2. Read all the information contained in this manual carefully before using the sensor, as misuse can cause damage to the product. -
Page 6: Recyclage
SONIC-ANEMO-DZP Recycling LCJ Capteurs encourage recycling of all material when possible, following local regulations. You can find more details about recycling by contacting the local authorities in charge of Environment Protection in your country. European Union (and European Economic Area) only. -
Page 7: Installation
Freight Claim with full description of the problem. Opening the box Unpack the parcel in a dry and clean place and check the delivery: 1. SONIC-ANEMO-DZP with a 5 m cable. 2. Mounting bracket with 4 nuts. 3. Alignment tool 4. -
Page 8: B) Hauteur De Montage
North. Tighten the screws. Note: Magnetic deviation must be considered to reference the measurements to True North. Mounting methods The SONIC-ANEMO-DZP comes with a mounting bracket allowing two mounting methods: © LCJ Capteurs 2016 – All rights reserved. Page 4... -
Page 9: Câblage
Connect the Solar Module back if required. f)- Put the cap and the cover back in place. Note: Refer to your DAVIS VP2 for more information about the Interface Module. Photos credit DAVIS Instruments. 4. Configuration of the DAVIS VP2 The anemometer cups must be set to "OTHER"... -
Page 10: Mise En Route
It is recommended to complete the wiring of your installation before connecting the battery. Then, insert the connectors inside the tube and plug the cap in place. After one minute of initialisation and with enough sun exposure, your SONIC-ANEMO-DZP is ready to operate. 6. Maintenance The SONIC-ANEMO-DZP does not require particular maintenance. -
Page 11: Spécifications Techniques
SONIC-ANEMO-DZP o)- Insert the wires and the connector in the tube and plug the cap. p)- Mount the SONIC-ANEMO-DZP back in place. q)- Connect the RJ11 on the SIM. Note: When purchasing the battery at LCJ Capteurs, please mention the part number: DZP_BATT. -
Page 12: Declaration Of Conformity
SONIC-ANEMO-DZP 9. Declaration of Conformity LCJ Capteurs certifies that the following product: SONIC-ANEMO-DZP, Ultrasonic Wind-vane-anemoneter Conforms with the provisions of the following directives: 1. Electromagnetic Compatibility: 2004/108 / CE 2. Low voltage: 2006/95 / CE This declaration of conformity is based on the product's compliance with the following harmonised standards: 1.
