Attaching Weatherlink Cable - DAVIS Short-Range Modem Pair Install Manual

11.Slide a cable tie into the mounting pad and secure the twisted-pair cable to the
mounting pad by tightening the cable tie.
Cut off any excess cable tie.
12.Reattach the CSS panel to the CSS and insert the console mounting screws into
the panel (consult the CSS instruction for instructions).
13.Plug the WeatherLink cable into the SR Modem Adapter.

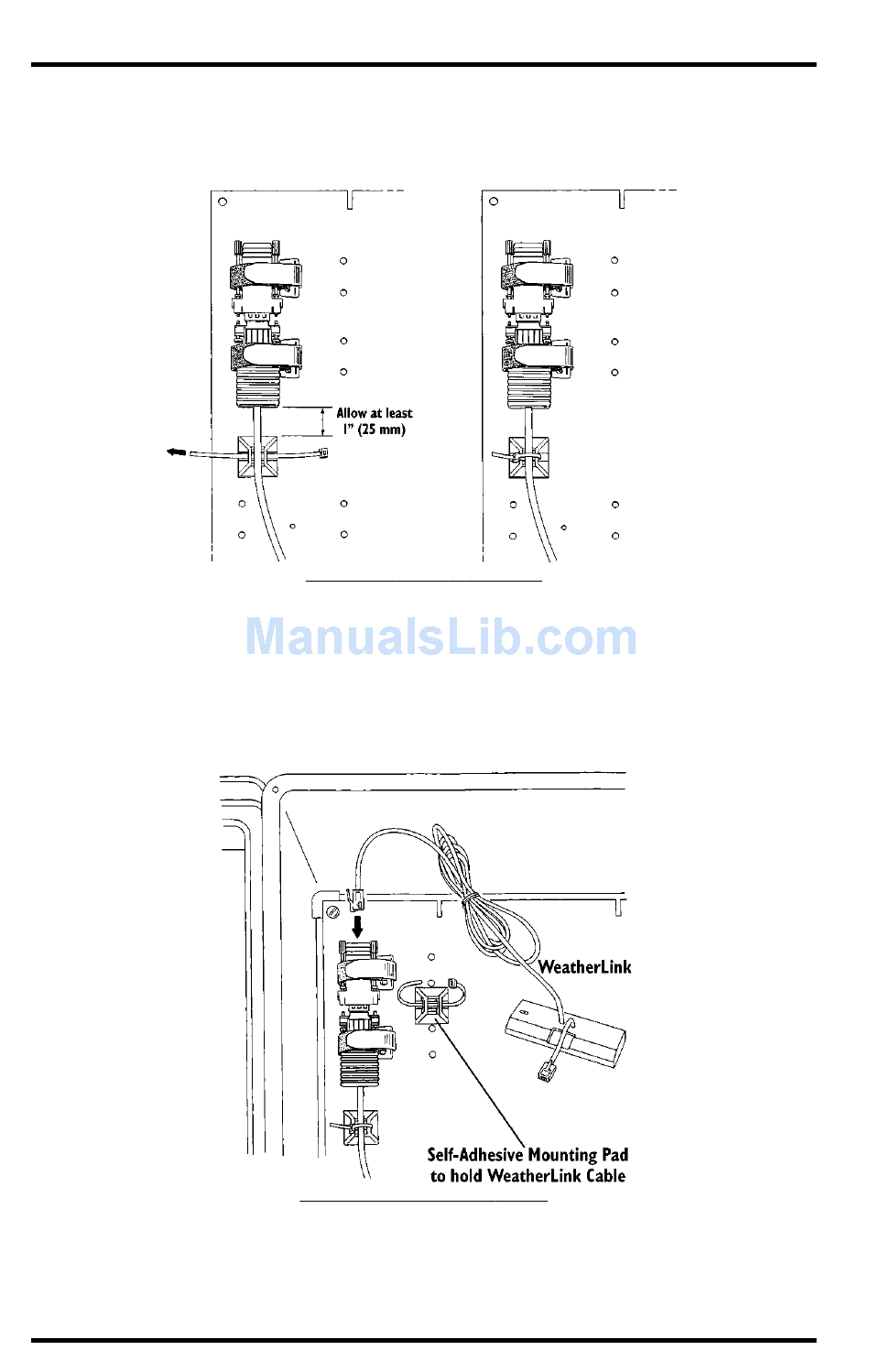

14.Attach the second self-adhesive mounting pad onto the CSS panel as shown
below.
15.Connect the WeatherLink to the console and attach the console to the CSS
panel (consult the necessary manuals for instructions).
Page 6
S T -P
ECURING WISTED
A W L
TTACHING EATHER
C
AIR ABLE
C
INK ABLE
Short-Range Modem Pair
