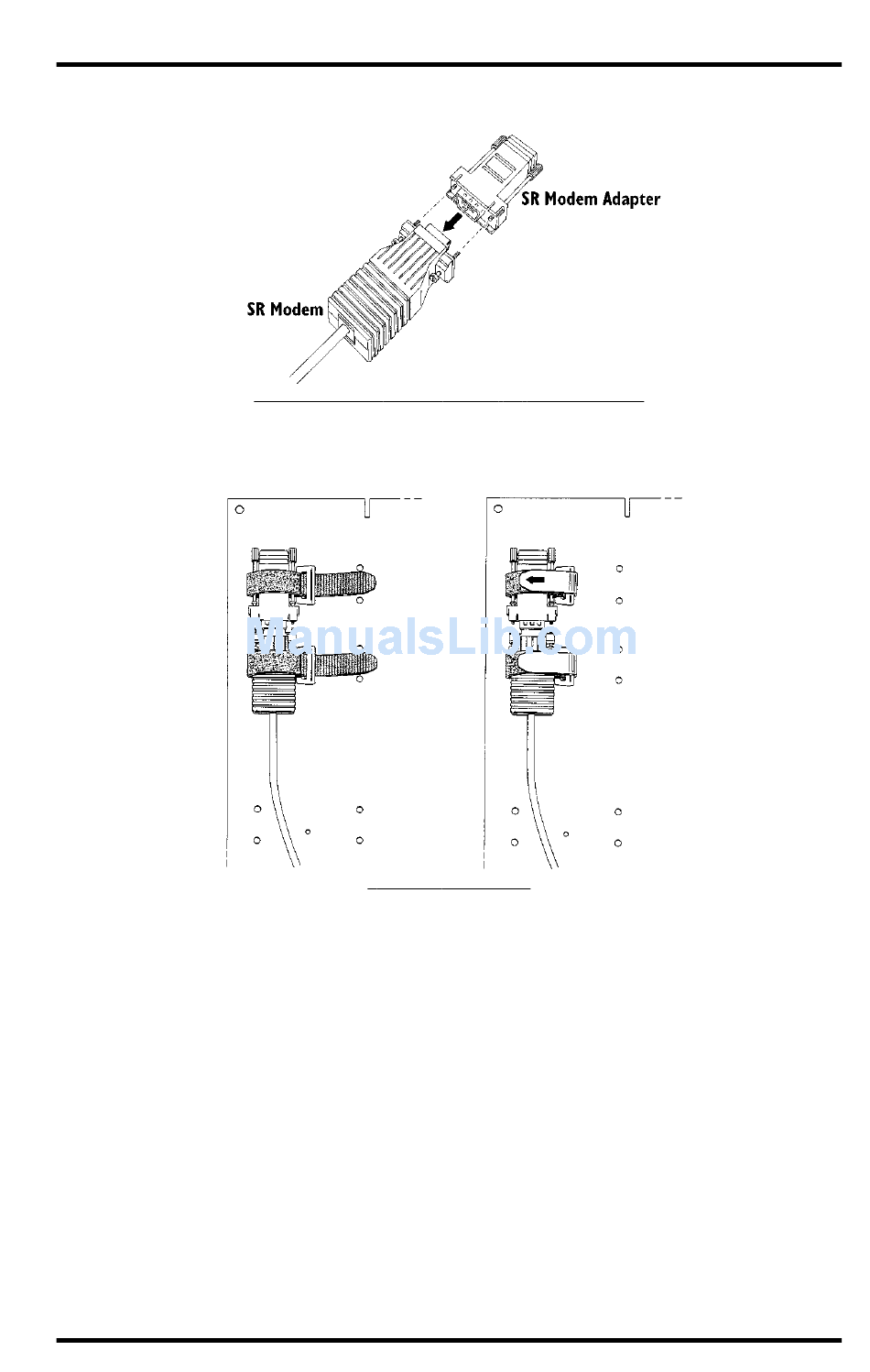

7. Attach the SR Modem Adapter to the SR Modem.
8. Secure the SR Modem and SR Modem Adapter to the CSS Panel by placing
them on top of the Velcro straps and tightening the straps as shown below.
9. Place a self-adhesive mounting pad onto the CSS panel below the SR Modem,
allowing at least 1" (25 mm) as shown below.
10.Position the twisted-pair cable over the mounting pad as shown below.
Installing the Short Range Modem Pair
A SR M
TTACHING ODEM
S
ECURING
A SR M
DAPTER TO THE
SR M
ODEM
ODEM
Page 5
