Repair

Field Lazer

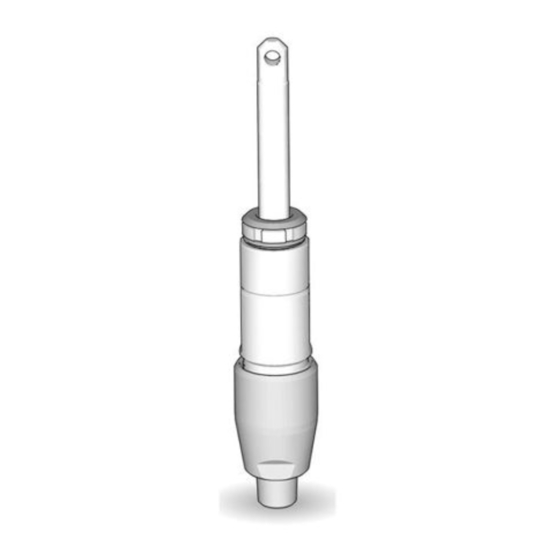

Displacement Pump

For use with water-based materials

3300 psi (22.7 MPa, 227 bar) Maximum Working Pressure

Model 246426

Series A

Model 17M873

Series B

Important Safety Instructions

Read all warnings and instructions in this manual, related

striping manuals and on the equipment. Be familiar with the

controls and the proper usage of the equipment.

Save these instructions.

S100

™

3A5053B

ti31046a
