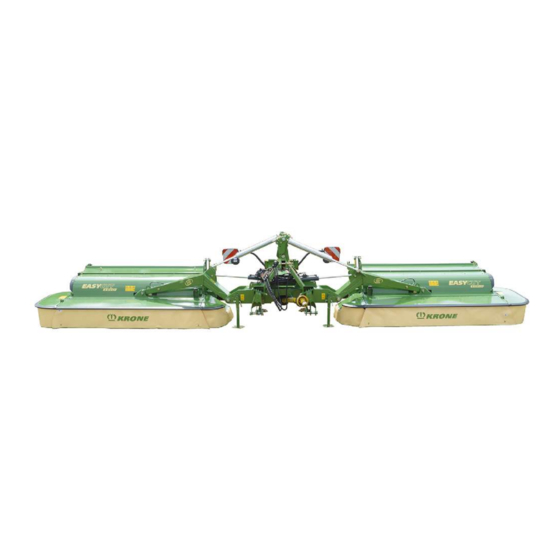

Validity This document is valid for machines of type: EasyCut B 870 CR This document only describes the rear combination. If the combination is used with front mounted mower, the operating instructions of the front mounted mower must also be considered.
This arrow identifies the result of an action step or sequence of actions. This bullet point identifies an enumeration. If the bullet point is intended, it identifies the second level of the enumeration. Icons in figures The following icons can be used in illustrations: EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 8
CAUTION The signal word CAUTION warns of a hazardous situation which will result in minor to moderate injuries if the warning sign is ignored. Example of a warning sign: EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Volume flow Litres per minute L/min 0.2642 US gallons per minute Cubic metres m³/h 4.4029 per hour Force Newton 0.2248 Pound force Length Millimetre 0.03937 Inch Metre 3.2808 Foot Power Kilowatt 1.3410 Horsepower EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 10
Kilometres per km/h 0.6215 Miles per hour hour Volumes Litres 0.2642 US gallon US gal. Millilitre 0.0338 US ounce US oz. Cubic centi- cm³ 0.0610 Cubic inch in³ metre Weight Kilogram 2.2046 Pound EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 11
Information on This Document How to use this document This page has been left blank deliberately. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
• Attachment of unauthorised or unapproved additional equipment • Use of spare parts which are not KRONE original spare parts • Stationary operation of the machine Unauthorised modifications to the machine may affect the properties of the machine or disrupt proper operation.
He has read the operating instructions and can implement the information in the operating instructions accordingly. • He is familiar with driving vehicles safely. • For road travel he has adequate knowledge of the highway code and has the stipulated driving licence. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Additional equipment and spare parts that do not correspond to the requirements of the manufacturer may affect the operational safety of the machine and cause accidents. To ensure operational safety, use original parts or standard parts which correspond to the requirements of the manufacturer. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Immediately eliminate potential causes of damage, for example heavy soiling, or tighten slack screws. In case of damage which may affect operational safety and cannot be repaired according to these operating instructions: Have damage repaired by a qualified service centre. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Ensure sufficient overlap of section tube and universal shaft guards. Make sure that the universal shaft guards are mounted and that they are fully functional. Allow the universal shaft locks to engage. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 17
In case of dangerous situations, immediately switch off drives and instruct persons to leave the danger zone. Danger zone due to trailing machine parts If machine parts are trailing, people may be seriously injured or killed. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Make sure every time after cleaning the safety labels that they are complete and legible. Immediately replace missing, damaged and unrecognizable safety labels. Provide spare parts with intended safety labels. Descriptions, explanations and order numbers of safety labels,refer to page 25. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Do not park the machine on slopes. Observe procedures for operating the machine on slopes, refer to page 51. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Check and clean the machine every day before using it for the first time. Check and clean the machine regularly during the working day. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Specify rules for the use of hearing protection and for the working time. During operation keep windows and doors of cabin closed. Remove hearing protection for road travel. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 22
Transfer gearbox • Mower gearbox • Belt gearbox • Hydraulic system • Cutter bar Maintain a sufficient distance from hot surfaces. Leave machine parts to cool down and wear protective gloves. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Frame or supporting components • Running gear Before carrying out welding work on the machine, obtain consent by KRONE customer service and, if required, identify alternatives. Before performing welding work on the machine, park the machine safely and disconnect it from the tractor.
Before working on or under raised machine parts: Secure machine or machine parts against lowering by means of hydraulic shut-off device (e.g. stop cock) on machine side. Before working on or under raised machine parts: Safely support machine or machine parts. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Safety labels on the machine Every safety label is provided with an order number and can be ordered directly from the authorised KRONE dealer. Immediately replace missing, damaged and unrecognisable safety labels. When attaching safety labels, the contact surface on the machine must be clean and free of dirt, oil and grease to ensure optimum adhesion of the labels.
Page 26
Safety Safety labels on the machine Position and meaning of safety labels KMG000-046 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 27
If the maximum permitted operating pressure is exceeded, hydraulic parts may be dam- aged. As a result, people may be seriously or fatally injured. Observe the permitted PTO speed. Observe the permitted operating pressure. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 28
Danger from objects being flung out When the machine is running, there is a risk of injury as objects may be flung out uncontrol- lably. When the machine is running, keep your distance. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Overload protection • The overload protection protects the tractor and the machine from load peaks To avoid damaging the machine, switch off the PTO shaft if the overload clutch engages continuously. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The SMV emblem (1) is at the rear in the centre or on left. If the machine is transported on transport vehicles (for example lorry or train), the SMV emblem must be covered or dismounted. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
(3). Intermediate universal shaft To ensure the functionality and to increase the lifetime, the friction clutch must be vented once a year before the beginning of the season, refer to page 66. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
After the impact damage protection system is triggered, the mower swivels back. The impact damage protection system engages again as soon as the mower is moved back. The trigger moment is factory preset. Dimension X =85 mm EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Number of mower drums 4 units Conditioning system Roller conditioner Mechanical spring relief 80 mm Ambient temperature Temperature range for machine operation -5 to +45°C Airborne noise emission Equivalent continuous sound pressure level >85 dB(A) EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
51818 of NLGI class 2, Li soap with EP additives Lubricate the manual lubrication point until grease escapes at the bearing position. After lubricating, remove the grease escaping from the bearing position. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Double-acting control unit (2+/2-) (2-) Lowers both mowers from transport position to head- land position. (2+) Raises both mowers from headland position to trans- port position. Bottom Activates the lower toggle switch (3). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 37
Middle Double-acting control unit (2+/2-): (2-) Lowers both mowers from headland position to work- ing position. (2+) Raises both mowers from working position to head- land position. Right No function. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The blades have been inserted, refer to page 76. ü The hydraulic system has been vented. ü The friction clutch has been vented, refer to page 66. ü The coupling points have been adapted, refer to page 39. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Secure the lower link pins (1) with the linch pin (4) and the safety chain (5). Top link pin The top link pin (1) is designed for category II and III. KM000-107 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
(shift length) of the profile tubes and guard tubes of at least 200 mm, refer to the operating instructions of the universal shaft manufacturer. Check the overlap of profile tubes and guard tubes. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Even with a fitted rear-mounted device, the front axle of the tractor must always be loaded with a minimum 20% tare weight of the tractor. Make sure before starting to move that these requirements have been met. KMG000-012 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Short circuit caused by impurities and moisture in the plug connection The machine may be damaged by a short circuit. Make sure that the plugs and sockets are clean and dry. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Short circuit caused by impurities and moisture in the plug connection The machine may be damaged by a short circuit. Make sure that the plugs and sockets are clean and dry. KMG000-013 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The machine is shut down and safeguarded, refer to page 24. Slide universal shaft (1) on PTO shaft end of tractor and secure it. Secure universal shaft guard by means of supporting chain (2) against turning. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
If the front guard is folded up during work, objects can be ejected. As a result, people may be seriously injured. Fold down the front guard. Connect the guard cloths of the front guard and the side guard using the turnlock fasteners. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The machine is in the working position, refer to page 49. ü The machine is shut down and safeguarded, refer to page 24. Fold down the front guard (1). Close the turnlock fasteners (3). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The machine is shut down and safeguarded, refer to page 24. Fold down the side guard (1). Ensure that the side guard (1) is secured by the locking, refer to page 59. Close the turnlock fasteners (2). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Pull the bolt (1), push the front support jack (2) downwards and lock it by using the bolt (1). Pull the tension bar (4), swivel the rear support jack (3) downwards and lock it by using the tension bar (4). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Lowering both mowers simultaneously from headland position to working position Move toggle switch (3) to “centre” position. Actuate control unit (2-) until both mowers are lowered into working position. To mow, move control unit (2-) to float position. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The front guards are folded down, refer to page 46. ü The side guards are folded down, refer to page 47. ü The rear linkage is blocked. ü The parking jacks are in the transport position, refer to page 48. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
To avoid accidents, the relevant safety instructions must be read and observed, Basic safety instructions. KMG000-094 Do not move the machine from transport into working position or from working into transport position as long as the machine is operated diagonal to the slope. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Even with a fitted rear-mounted device, the front axle of the tractor must always be loaded with a minimum 20% tare weight of the tractor. Make sure before starting to move that these requirements have been met. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Depressurise the tractor hydraulics. Raise the machine until the support jacks (5) can be swivelled down. Swivel down the front and rear support jacks (5) and secure them with the bolt (4), refer to page 48. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 54
To save space, the machine can also be parked with mowers folded up. To prevent the machine from overturning, park it on firm ground. Only park the machine on level ground capable of bearing the load such as concrete or asphalt. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ð Top link shorter = smaller cutting height Swivel the support jack/(s) up, refer to page 48. For version with “high-cut skids” The cutting height can be increased by means of high-cut skids. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
People may be seriously injured or killed as a result. Never unscrew the threaded spindles (2) of the relief springs (1) further than the dimension X = 80 mm. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 57
To increase the ground pressure, increase the dimension X. To reduce the ground pressure, reduce the dimension X. Tighten the counter nut (5). Set the dimension X in the same way on all relief springs. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
To reduce the ground pressure, reduce the dimension X. Tighten the counter nut (5). Set the dimension X in the same way on all relief springs. 10.5 Setting the side guards KMG000-078 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Move the machine to the transport position. ð If the side guard folds down, the side guard is correctly adjusted. ð If the side guard does not fold down, the lock must be adjusted. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Loosen nut (2). Turn the screw (1). ð In direction (I): The distance between the rollers increases. ð In direction (II): The distance between the rollers reduces. Tighten the nut (2). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Checking oil level Input gearbox refer to page 70 Main gearbox top part refer to page 71 Main gearbox bottom part refer to page 72 Gearbox for upper roller drive refer to page 73 Cutterbar refer to page 82 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Check guard cloths refer to page 68 Check/replace locking of side panel refer to page 59 11.1.4 Maintenance - Every 50 hours Components Tighten screws/nuts on the machine refer to page 63 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The table does not apply to countersunk screws with hexagon socket in case the countersunk screw is tightened via hexagon socket. DV000-001 Thread size Strength class on screw head Strength class 10.9 12.9 Tightening torque (Nm) EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 64
M30 x 1.5 2,100 2,650 Metric thread screws with countersunk head and hexagon socket INFORMATION The table applies only to countersunk screws with hexagon socket and metric thread tightened via hexagon socket. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 65
Ventilation and breather filter made of Ventilation/breather filter made of brass steel Steel and cast Aluminium Steel and cast Aluminium Maximum tightening torque (Nm) (±10 %) M10x1 M12 x 1.5 G1/4“ M14 x 1.5 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Never intervene in the overload protection. Only use KRONE original spare parts. The friction clutch protects the tractor and the machine from damage. The friction clutch must be vented before starting up for the first time and once a year. The friction clutch is designed with a permanently adjusted turning torque M .
Page 67
Loosen the cap nuts (1) uniformly but do not dismount them. ð The friction discs are relieved. Turn the friction clutch (2). Screw in the cap nuts (1) completely. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Carry out a visual inspection of the guard cloth (1) to ensure that there are no cracks and damage. Æ The machine can be used when there are no cracks or damages. Æ Replace guard cloths in case of cracks or damage. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
If oil and used oil filters are not stored and disposed of properly, the environment may be damaged. Store or dispose of used oil and oil filters according to statutory provisions. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Refill with fresh oil up to the inspection hole (1) via the filling hole (3). Screw on the locking screw of the inspection hole (1) and the locking screw of the filling hole (3), tightening torque refer to page 65. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Refill with fresh oil up to the inspection hole (1) via the filling hole (3). Screw on the locking screw of the inspection hole (1) and the locking screw of the filling hole (3), tightening torque refer to page 65. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Refill with fresh oil up to the inspection hole (1) via the inspection hole (1), amount of oil refer to page 35. Mount the locking screw of the inspection hole (1), Anziehdrehmoment refer to page 65. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Top up new oil via the filling hole (3) up to the inspection hole (1). Mount the locking screw of the inspection hole (1) and the locking screw of the filling hole (3),Tightening torque refer to page 65. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
• The nuts (2) with left-handed thread (LH) have distinctive grooves (a) on the bevel. • The pinion shafts (4) with left-handed thread (LH) have a distinctive groove (b) on the face. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Dismount the nut (2) by using the special key (10) included with delivery. Dismount the hub (1). Remove the damaged shear pins (3). Check the nut and the hub for damage. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Maintenance - Cutterbar 14.3 Check/change blades INFO : Replace damaged parts by KRONE original spare parts. Fill the space above the bearing with grease (c). Place the hub on the pinion shaft. INFO : Observe the position of the shear pins. The slots of the shear pins (3) must be mounted facing each other horizontally, see detail (I).
Insert the new blade (5) between the wear skid (2) and the cutting disc (1). Insert the retaining bolt (3) from below through the wear skid (2), the blade (5) and the cutting disc (1). EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Repeat the process for all blades. Fold down the front guard. INFORMATION Clockwise rotating blades can be ordered by stating order number 00 139 889 *. Anticlockwise rotating blades can be ordered by stating order number 00 139 888 *. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The blade carriers must be replaced at the latest when the application seam (1) is worn at one point. The blade carriers must only be replaced by KRONE original spare parts. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The cutting discs/mower drums must be checked at least once a day or after contact with foreign objects. If cutting discs/mower drums are deformed, the dimension X=48 mm must not be exceeded. The cutting discs/mower drums must only be replaced by KRONE original spare parts. KM000-042 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The cutting discs/mower drums must be replaced at the latest when the material thickness is below the minimum material thickness of 3 mm. The cutting discs/mower drums must only be replaced by KRONE original spare parts. KM000-043 14.7...
INFORMATION There is no need to change the oil on the cutterbar. Before checking the oil level on the cutterbar, the cutterbar must be aligned levelly by means of a spirit level. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 83
If the oil does not reach the inspection hole (1): Top up new oil via the inspection hole (1) up to the inspection hole (1). Mount the locking screw of the inspection hole (1),refer to page 65. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
ü The machine is shut down and safeguarded, refer to page 24. Observe operating instructions of the universal shaft manufacturer. Lubricate the universal shaft with multi-purpose grease at the intervals indicated in the figure. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
The types of lubrication are marked by means of icons in the lubrication chart, refer to table. Type of lubrication Lubricant Comment Grease Multi-purpose grease Apply two strokes of lubricating grease from the grease gun per grease nipple. Remove excess lubricating grease at the grease nipple. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 86
Maintenance - Lubrication 15.2 Lubrication chart - Machine KMG000-023 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 87
Maintenance - Lubrication Lubrication chart - Machine 15.2 Every 50 operating hours Every 100 operating hours EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Touch up damaged paint and preserve all uncoated areas thoroughly with rust protection agent. Check all moving components for smooth running. If necessary remove, clean, grease and remount. If parts need to be replaced, use KRONE original spare parts only. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 89
Write down all repair jobs which must be performed by the next harvest and arrange for them to be done with sufficient lead time. Your KRONE dealer is better able to perform maintenance service and any required repairs outside of harvest season.
All synthetic materials must be brought to a recycling centre for synthetic materials. Rubber • Rubber parts (hoses, tyres, …) must be brought to a rubber recycling centre. Electronic scrap • All electronic parts must be brought to a disposal point for electronic scrap. EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Connecting the machine to the tractor ....41 Consumables ..........20, 35 Contact ..............2 Contact data of your dealer ........2 Control and Display Elements ......36 Conversion table ..........9 Cross references ..........6 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 104
Folding up side guard (transport position) ..47 working position..........49 Folding up the front guard ........46 Lubricating greases ..........35 Front guard ............45 Lubricating universal shaft........84 Lubrication chart - Machine ........ 85 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 105
Move parking jacks into transport position ..48 Road safety ............19 Mowing ............... 50 Rotary hub ............74 Noise may damage your health......21 Notes with information and recommendations ..9 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Page 106
Technical limit values ......... 16 Technically sound state of the machine ..... 15 Term “machine” ............ 7 Tightening torques..........63 Top link pin ............39 Unattended parking ..........20 Unsuitable consumables ........20 EasyCut B 870 CR Original Operating Instructions 150000706_01_en...
Machine: Mower Combination Type: EasyCut B 870 CR to which this declaration refers is in compliance with the following relevant provisions: • EC Directive 2006/42/EC (Machinery) The undersigned Managing Director is authorised to compile the technical documents.
