Device Management
3.2 Configuring the Device

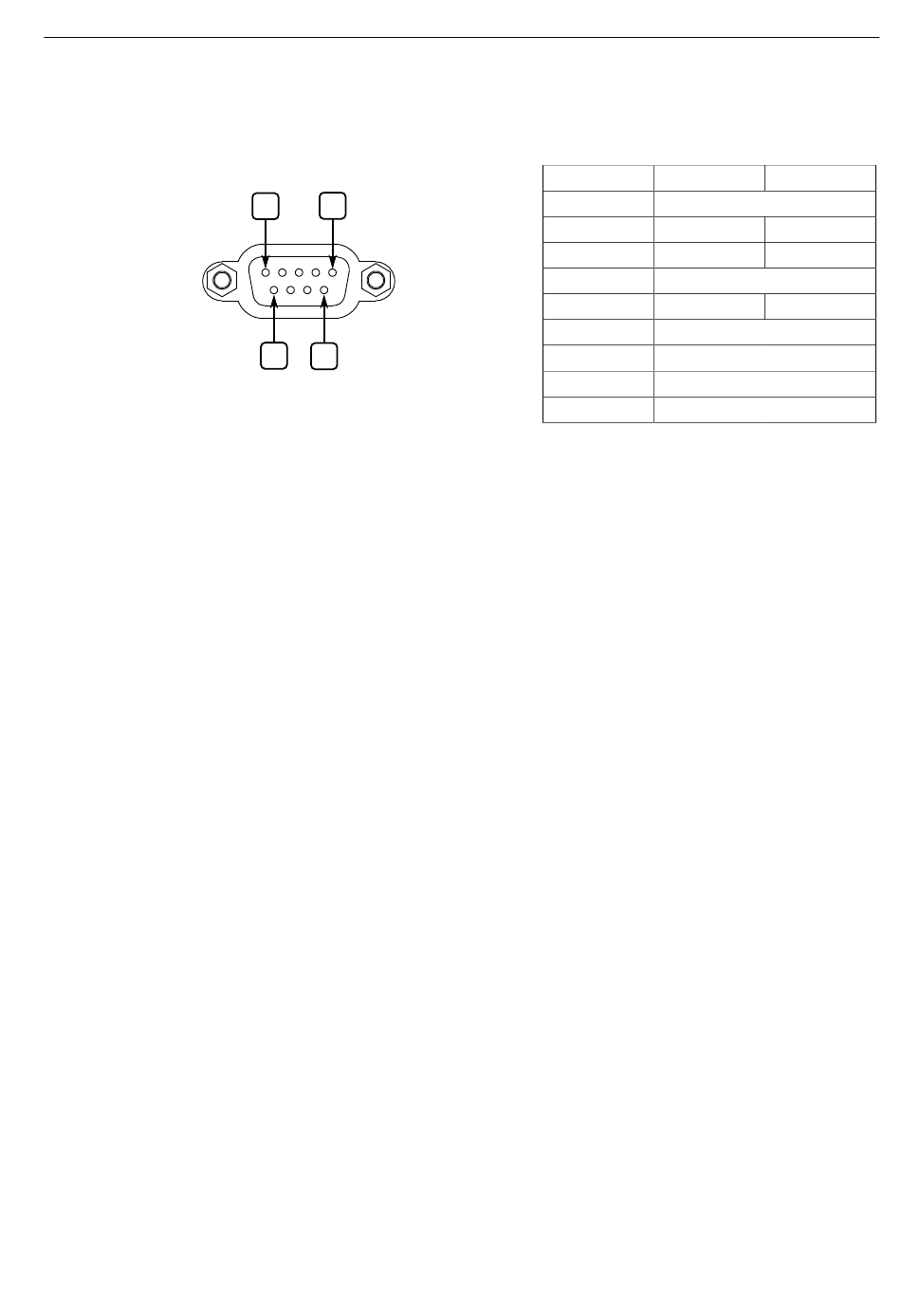

The serial console port implements RS232 DCE (Data Communication Equipment) on
a DB9 connector. The following is the pin-out for the port:
Figure 3.1
a
Connected internally.
b
Connected internally.
Ethernet Ports
Connect any of the available Ethernet ports on the device to a management switch
and access the RUGGEDCOM RS930L console and Web interfaces via the device's
IP address. The factory default IP address for the RUGGEDCOM RS930L is
192.168.0.1.
For more information about available ports, refer to
19)".
3.2
Configuring the Device
Once the device is installed and connected to the network, it must be configured. All
configuration management is done via the RUGGEDCOM RS930L interface. For more
information about configuring the device, refer to the RUGGEDCOM RS930L User
Guide associated with the installed software release.
18
1
5
9
6
Serial DB9 Console Port
Pin
Name
a
1
Reserved (Do Not Connect)
2
TX
3
RX
a
4
Reserved (Do Not Connect)
5
GND
a
6
Reserved (Do Not Connect)
b
7
Reserved (Do Not Connect)
b
8
Reserved (Do Not Connect)
9
Reserved (Do Not Connect)
"Communication Ports (Page
Installation Manual, 02/2020, C79000-G8976-1034-06
Description
Transmit Data
Receive Data
Signal Ground
https://-
RUGGEDCOM RS930L
