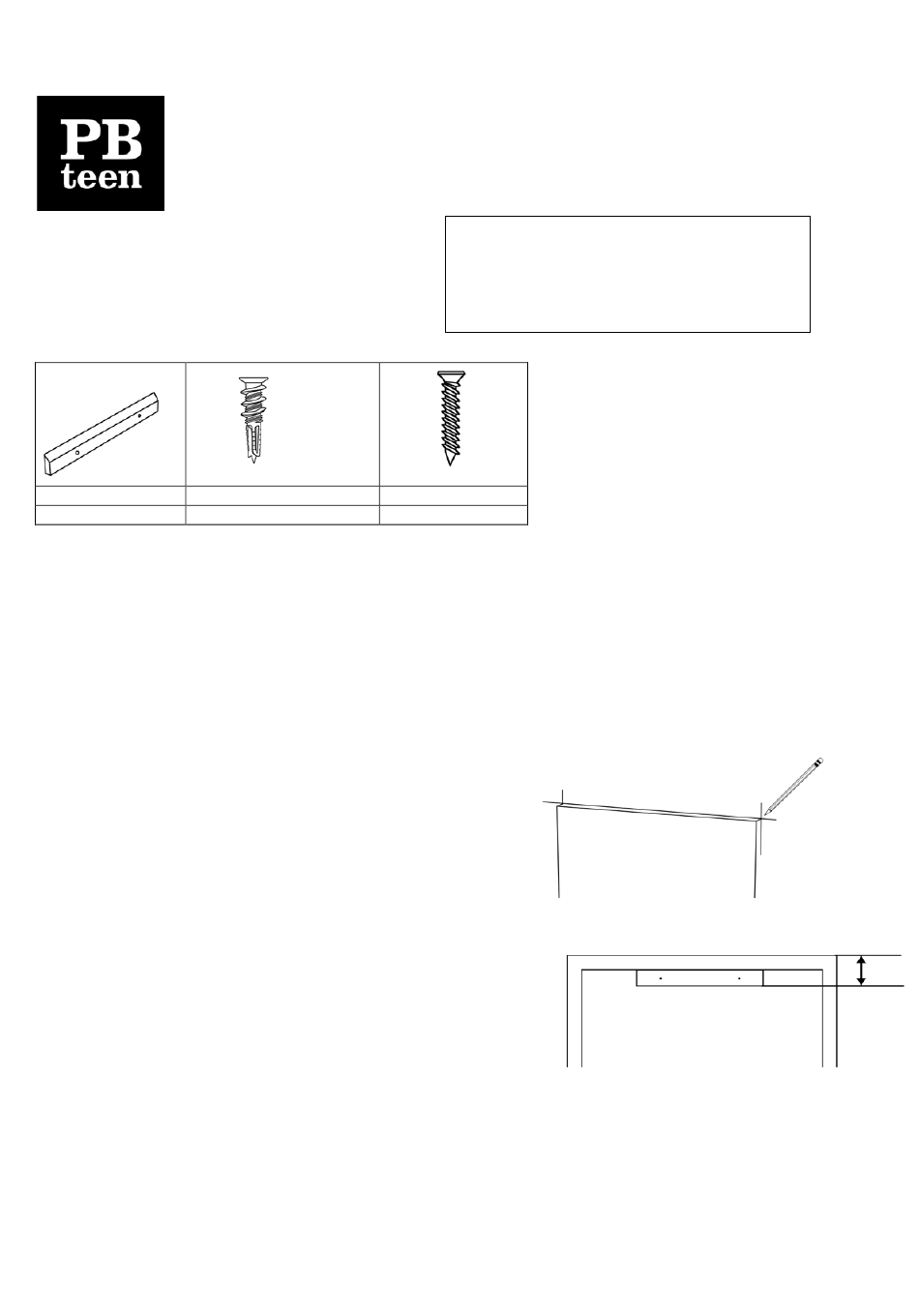

Parts Included:
A
B
Wall-mount Bracket
1PC
Tools required (not included):
This item is meant to be mounted to a wall using a French cleat mounting system which includes a wall-mounted
cleat and a product-mounted cleat. The wall-mounted cleat is mounted to the wall using the provided fasteners and
is thereafter used to engage with and support the product-mounted cleat to safely hold the item against the wall.
The wall-mounted cleat includes a sharp edge that must be facing up and away from the wall for this French cleat
mounting system to work properly. Also, the wall-mounted cleat includes an optional locking groove which is
designed to receive the head of a screw secured to the product, as explained below:
A)
Hold this item against a wall at a desired location.
Use a level to make sure that the item is level and then
use a pencil to mark the wall along the entire top edge.
Carefully set the item aside.
B)
On the backside of the item, position the wall-
mounted cleat so that it is engaged with the product-mounted
cleat located about 2" inches down from the top of the item.
Note, the cleats may already be secured to each other. Use a
tape-measure to measure the distance between the bottom
of the wall-mounted cleat and the top of the item, as shown.
This is "Measurement (A)".
C)
Use a tape measure and a pencil to make a "lower line" below the line of Step (A) that is spaced a distance
equal to "Measurement (A)". Use a level to confirm that the lower line is level and then align the lower edge
of the wall-mounted cleat with the lower line. Make sure that the cleat is oriented with the sharp edge
facing up and away from the wall and centered along the lower line.
C
Anchors
2PCS
Screwdriver, Level, Tape measure, Pencil, Stud-Finder
Note: This item is meant for drywall/wood stud
mounting only. If your walls are made from concrete,
brick or plaster, please consult your local hardware
store for assistance. For safety and ease of
mounting, installation recommends using two people.
Screws
2PCS
