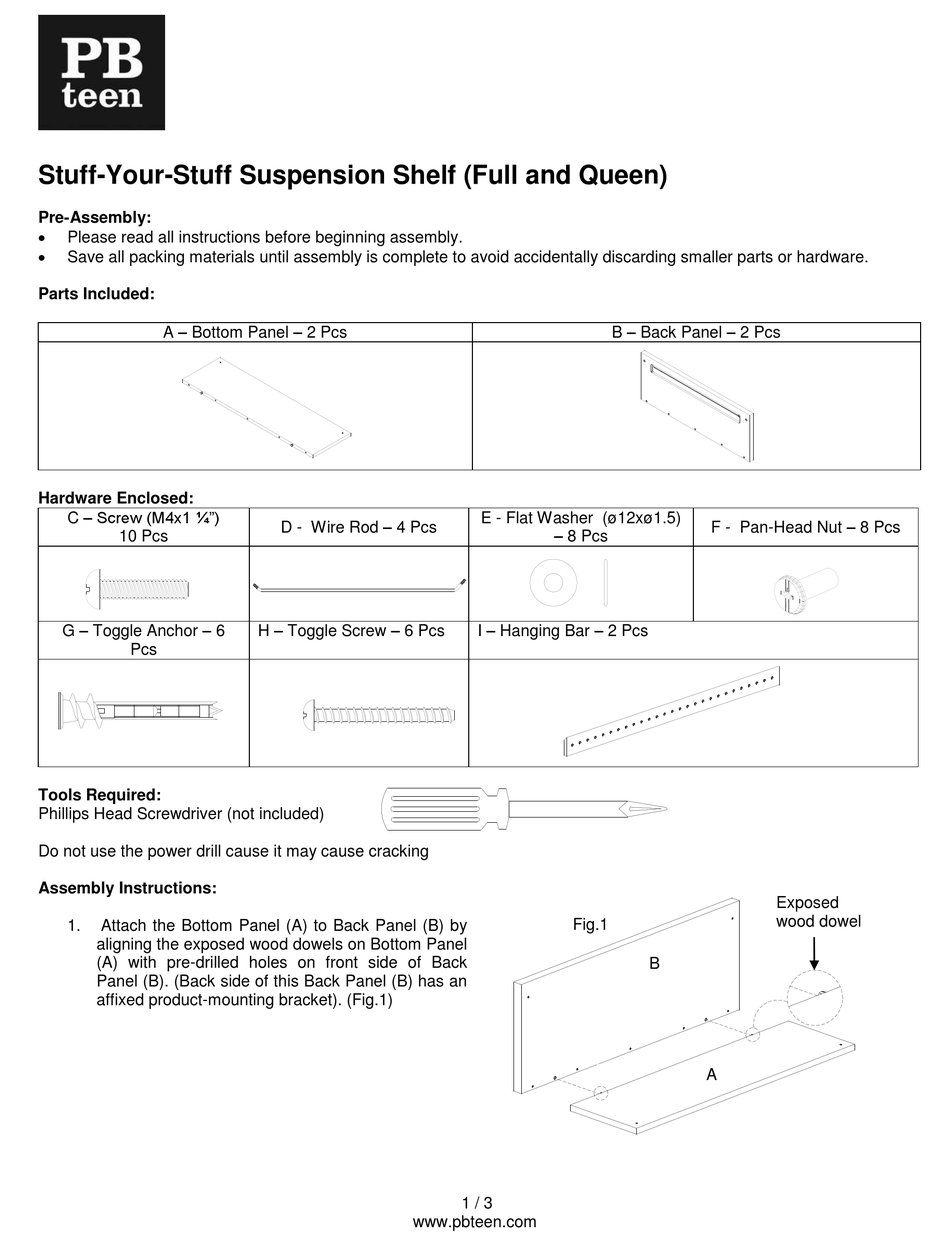

PB TEEN Stuff-Your-Stuff Suspension Shelf Assembly Instructions

Full and queen

Advertisement

Quick Links

Stuff-Your-Stuff Suspension Shelf (Full and Queen)
Pre-Assembly:
Please read all instructions before beginning assembly.
Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware.
Parts Included:
A – Bottom Panel – 2 Pcs
Hardware Enclosed:
C – Screw (M4x1 ¼")
10 Pcs
G – Toggle Anchor – 6
Pcs
Tools Required:
Phillips Head Screwdriver (not included)
Do not use the power drill cause it may cause cracking
Assembly Instructions:
1.
Attach the Bottom Panel (A) to Back Panel (B) by
aligning the exposed wood dowels on Bottom Panel
(A) with pre-drilled holes on front side of Back
Panel (B). (Back side of this Back Panel (B) has an
affixed product-mounting bracket). (Fig.1)
D - Wire Rod – 4 Pcs
H – Toggle Screw – 6 Pcs
www.pbteen.com
B – Back Panel – 2 Pcs
E - Flat Washer (ø12xø1.5)
– 8 Pcs
I – Hanging Bar – 2 Pcs
Fig.1
1 / 3
F - Pan-Head Nut – 8 Pcs
Exposed
wood dowel
B
A
