Overview of functions
• System-Monitoring display
• up to 4 temperature sensors
Pt1000
• heat quantity balancing
• function control
• user-friendly operation through
easy handling
• easy-to-mount housing in
outstanding design
• RESOL VBus
®
Scope of delivery:
1 x D e lt a S o l C/1
®
1 x accessory bag
1 x spare fuse T2A
2 x screws and dowels
4 x strain relief and screw
Additionally contained in the full kit
1 x sensor FKP6
1 x sensor FRP6
Technical Data
Housing: plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Ambiant temp.: 0 ... 40 °C

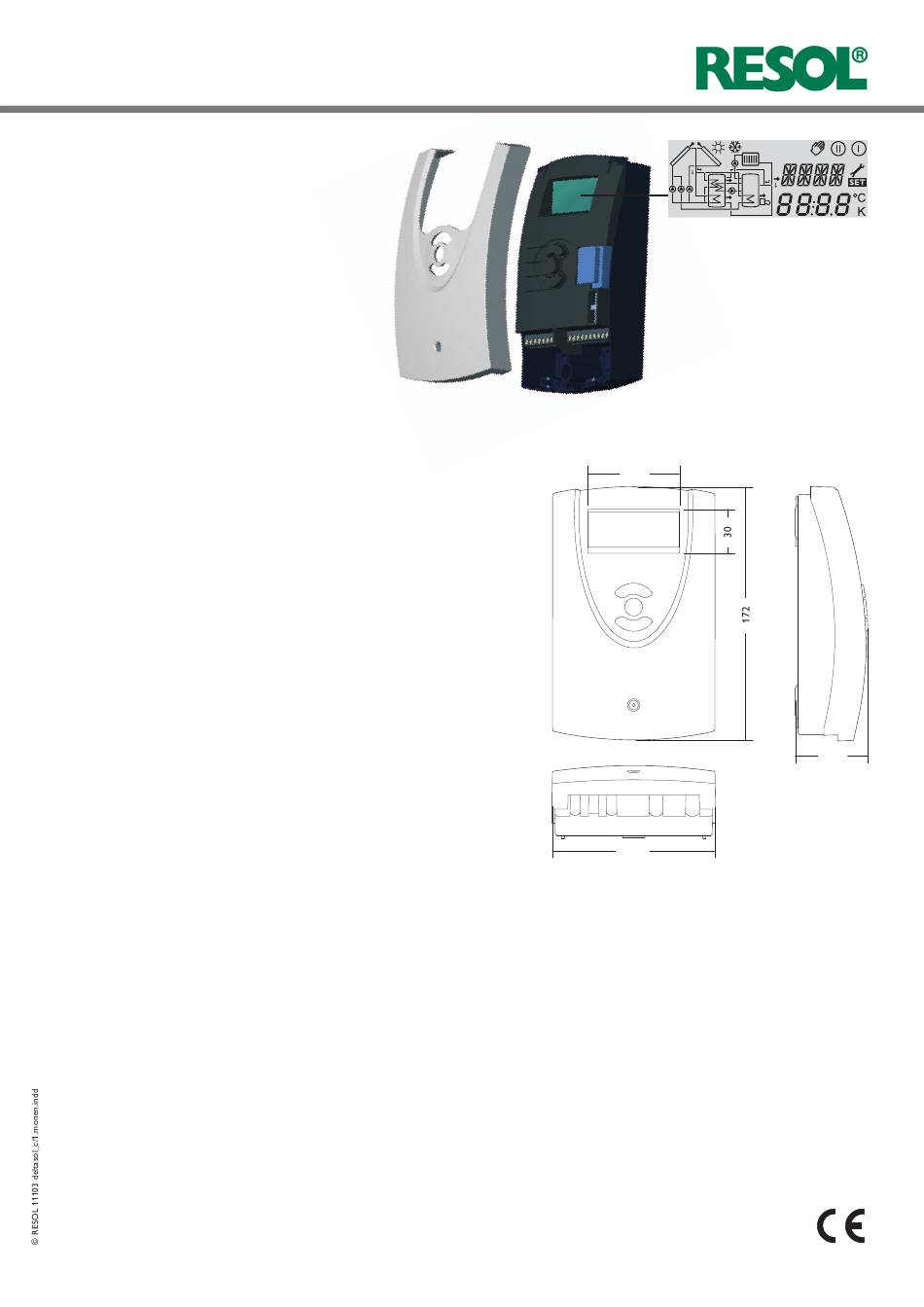

Dimensions: 172 x 110 x 46 mm
Mounting: wall mounting, also suitable
for mounting into patch panels
Display: System-Monitor for sys-
tem visualisation, 16-segment display,
7-segment display, pictograms
Operation: 3 push buttons at the
front of the housing
Functions: Temperature differen-
tial controller with optional add-on
functions. function control according
to BAW-guidelines, operating hours
counter, tube collector function, and
heat quantity measurement
Inputs: for 4 temperature sensors
Pt1000
Output: 1 standard relay
Bus: RESOL VBus
®
Power supply: 100 ... 220V~
Total switching capacity:
2 (1) A (100 ... 240) V~
ê
!
$
$
62
111
Mode of operation:
Type 1.b
Switching capacity per relay:
Electromechanical relay:
2 (1) A (100 ... 240) V~
