Pump Handle
Turn clockwise only to
dispose of oil.
DO'S
Do clean crumb tray
and inside tank.
Turn the pump handle
only clockwise.
DON'TS
Locking
Don't fill with
water or use
to drain boilout solu-
Release to
tion.
pivot spout
toward dis-
Don't move without
posal vessel.
the handle bolted in
place.
Don't use
without
the crumb tray.
Don't overfill.
Don't move with the
lid unlatched.
Don't leave oil in the
tank.
Crumb Tray
Ensure the crumb tray is
present and clean.
01/2018
SDU 50/90
Spout
Pin
Handle
Locking
Bolts
Ensure bolts are in
place before mov-
ing the SDU.
Do not fill above marked fill
line; do not move without the lid
securely clasped and the gasket

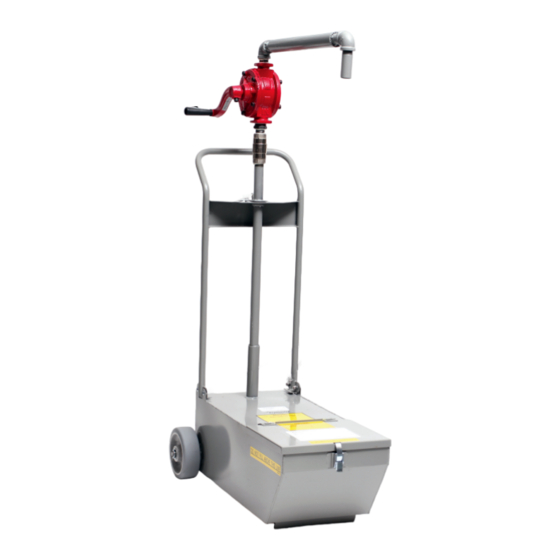

USING AN SDU

See assembly, initial setup on back page
• Place the open tank under
the drain valve or drain exten-
sion of a fryer. Ensure the fryer
is off and the oil is no more
than 100°F.
• Slowly open the drain valve.
Fill only to the fill line on the
tank. Drain only one vat at a
time.
• Close and secure the lid of
the SDU. Roll it to the disposal
site. Rotate the pump's spout
by lifting the spout locking
pin. Locate the spout over the
disposal vessel.
• Turn the crank clockwise to
dispose of the oil.
Tank
in place.
