ROLLING HILLS
INSTALLATION & MAINTENANCE INSTRUCTIONS
Features
The Rolling Hills features GS Web Technology which includes
the highest steel content and the strongest connection
materials in the industry, including a steel-wire core
in our edge ropes and connection points crushed in place with
over
75 tons
of pressure to ensure long life of the games
and maximum safety for the children.
GS Web Nets help bring movement, balance, exercise and fun
back into the playground.
Ages : 5 to 12 years
Capacity : 214 children
Size : L19.0m x W4.76m x H2.63m
Use zone : L23.0 x W9.76
GSWeb Playground Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea

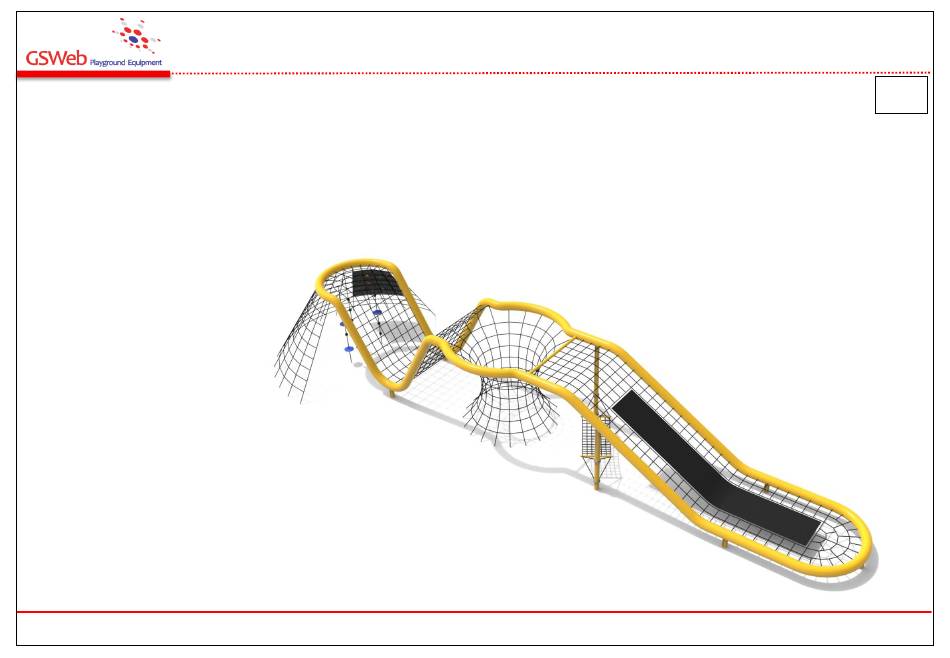

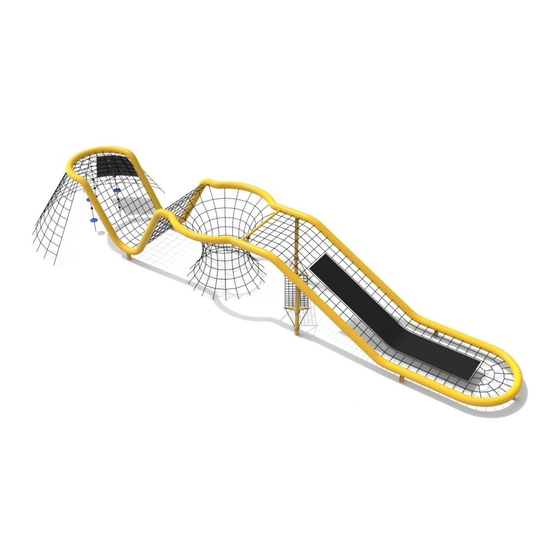

▲ Completed Net
Tel) +82 (0)55 326 9025
Fax) +82 (0)55 326 9026
MODEL NO.
GS-RH104
Rev_2
2016.05
E-mail) gswebinfo@chol.com
1
Website) www.gsweb21.com
