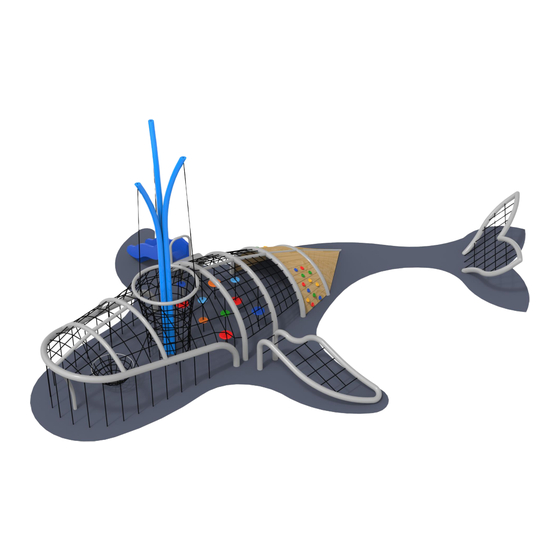

The Whale
INSTALLATION & MAINTENANCE INSTRUCTIONS
Features
The Whale features GS Web Technology which includes
the highest steel content and the strongest connection
materials in the industry, including a steel-wire core
in our edge ropes and connection points crushed in place with
over
75 tons
of pressure to ensure long life of the games
and maximum safety for the children.
GS Web Nets help bring movement, balance, exercise and fun
back into the playground.
Ages : 5 to 12 years
Capacity : 73 children
Size : L13.74m x W8.75m x H6.08m
Use zone : L16.80 x W11.94

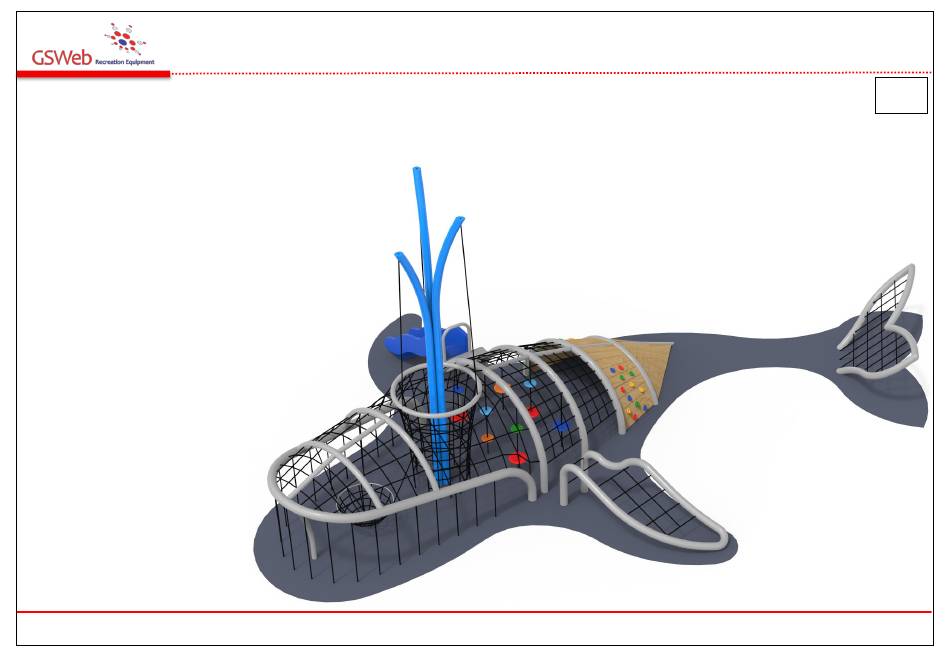

Completed Model ▶
GSWeb Recreation Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea
Tel) +82 (0)55 326 9025
E-mail) gswebinfo@chol.com
Fax) +82 (0)55 326 9026
Website) www.gswebplay.com
MODEL NO.
GS-N101
Rev_0
2018.04
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GSWeb Playground Equipment GS-N101
Summary of Contents for GSWeb Playground Equipment GS-N101
- Page 1 MODEL NO. The Whale INSTALLATION & MAINTENANCE INSTRUCTIONS GS-N101 Rev_0 Features 2018.04 The Whale features GS Web Technology which includes the highest steel content and the strongest connection materials in the industry, including a steel-wire core in our edge ropes and connection points crushed in place with...
- Page 2 MODEL NO. The Whale Safety area and Fall Height zone GS-N101 Rev_0 Safety area 16795 2018.04 The requirements for space and safety clearances are Safety Area(EN) taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in.
- Page 3 MODEL NO. The Whale Foundation Information GS-N101 Rev_0 !Attention Foundation Detail Foundation 1 ~ 9 2018.04 Please refer to following details for foundation work. Pouring Concrete Base plates are welded to the Whale pipe. After assembling pipes and nets, fix the structure on the concrete.
- Page 4 MODEL NO. The Whale Foundation Information GS-N101 Rev_0 Foundation 2 2018.04 3840 3614 89.1 Ø SAND 7 x 4 - 1/2" x 125L SET ANCHOR CONCRETE SAND SAND 7 x 2 - 1/2" x 125L 1 x 22 - 1/2" x 100L...
- Page 5 MODEL NO. The Whale Foundation Information GS-N101 Rev_0 2018.04 1300 Ø 1000 1000 165.2 139.8 139.8 139.8 Ø Ø Ø Ø 1 x 8 - 1/2" x L100 1 x 8 - 3/4" x 250L 139.8 Ø 2 x 4 - 5/8" x L150 2 x 4 - 5/8"...
- Page 6 MODEL NO. The Whale Foundation Information GS-N101 Rev_0 2018.04 1000 1 x 7 - 5/8" x L150 SET ANCHOR 139.8 Ø 60.5 Ø SAND SAND SAND 1 x 4 - 5/8" x L150 3 x 2 - 1/2" x 125L...
- Page 7 MODEL NO. The Whale OVERALL ASSEMBLY - PIPE GS-N101 Rev_0 !Attention Overall Assembly 2018.04 It is very important to keep the stickers attached on the parts on until Assemble the parts in the following order: the installation is completed. If the stickers are detached during the installation, it might be difficult to 1.
- Page 8 MODEL NO. The Whale OVERALL ASSEMBLY - PIPE GS-N101 Rev_0 Overall Assembly 2018.04 Assemble the pipes in alphabetical order. 1. Check the pipes’ numbers on Stickers on them. 2. As below picture, Line up the pipes and Connect the pipe to the next pipe 3.
- Page 9 MODEL NO. The Whale OVERALL ASSEMBLY - PIPE GS-N101 Rev_0 Overall Assembly 2018.04 1. Insert the post into Rolling hills pipe and assemble. 2. Check the location. 3. Fix the post onto the concrete. Bolt POST ! Attention Do not drill holes on the concrete first.
- Page 10 MODEL NO. The Whale OVERALL ASSEMBLY -FRAME GS-N101 Rev_0 Overall Assembly - FRAME 2018.04 Assemble the parts in the following order: No. 11 1. Check names of the parts. - From “F1” to “F2” are frame’s name. 2. Assemble as shown below.
- Page 11 MODEL NO. The Whale OVERALL ASSEMBLY - NET GS-N101 Rev_0 Overall Assembly - NET 2018.04 Assemble the parts in the following order: 1. Check the net’s name. There are 4 set net Net A2 Net B2 from Net A to Net I.
- Page 12 MODEL NO. The Whale OVERALL ASSEMBLY - DISK GS-N101 Rev_0 Overall Assembly 2018.04 Assemble the parts in the following order: 1. Check the net’s name. 2. Attach the disk net to the proper location of pipe in order as below picture.
- Page 13 MODEL NO. The Whale GS-N101 Rev_0 Overall Assembly 2018.04 Assemble the parts in the following order: 1. Check the net’s name. 2. Attach the net to the proper location of pipe in order as below picture. No. M2 No. M1 No.
-
Page 14: Overall Assembly
MODEL NO. The Whale OVERALL ASSEMBLY GS-N101 Rev_0 Overall Assembly 2018.04 Assemble the parts in the following order: 1. Check the panel’s name. 2. Attach the net to the proper location of pipe in order as below picture. No. 52-1 No. -
Page 15: Maintenance Information
MODEL NO. The Whale Tensioning & Maintenance information GS-N101 Rev_0 2018.04 Maintenance information Please tighten bolt set properly. If tightened too tightly, it may cause damage. It is also recommended that subsequent checks on loosen should be carried out at monthly intervals and adjusted as required. -
Page 16: Maintenance
MODEL NO. The Whale Maintenance GS-N101 Rev_0 2018.04 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;... - Page 17 MODEL NO. The Whale Maintenance GS-N101 Rev_0 C. Routine maintenance 2018.04 To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
