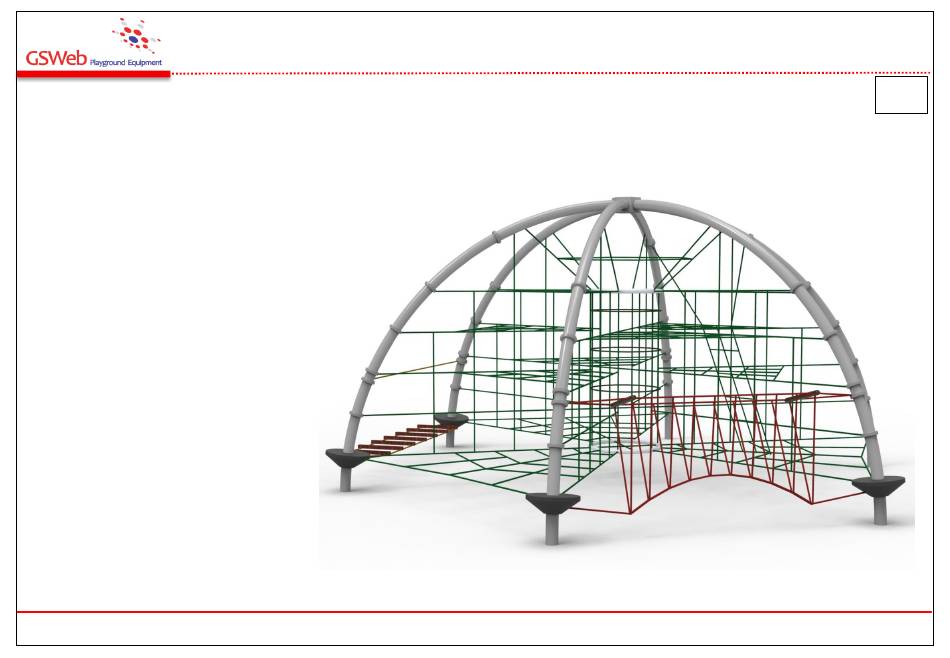

PLAY DOME
INSTALLATION MANUAL
Safety Checklist after first assembly
● Test intervals of Safety: 6 months
● Test Component and contents:
1. Removing the reticulated system:
- Check of removing condition each rope
- Screwing the turn buckle and conversion the turnbuckle
in anchors plate(see for this work step turnbuckle assembly)
2. Abrasion condition of rope:
- Checking of all rope surface
- Strengthened of rope: Coating on the surface
3. Attachment condition of the anchors plate and turnbuckle
4. Screwing condition of all bolt
5. Galvanizing condition of the steel component:
- Protection of steel component from corrosion.
● Measure
In case of the appearance the defect detail is
repaired usually within 3 days after checking.
Caution!!
You have to construct foundation same level.
You have to keep foundation certain distance.
GSWeb Playground Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea
Tel) +82 (0)55 326 9025
E-mail) gswebinfo@chol.com
Fax) +82 (0)55 326 9026
Website) www.gsweb21.com
MODEL NO.
GS-PD8003
Rev_1
2017.11
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GSWeb Playground Equipment PLAY DOME
Summary of Contents for GSWeb Playground Equipment PLAY DOME
- Page 1 MODEL NO. PLAY DOME INSTALLATION MANUAL GS-PD8003 Rev_1 Safety Checklist after first assembly 2017.11 ● Test intervals of Safety: 6 months ● Test Component and contents: 1. Removing the reticulated system: - Check of removing condition each rope - Screwing the turn buckle and conversion the turnbuckle in anchors plate(see for this work step turnbuckle assembly) 2.
- Page 2 MODEL NO. PLAY DOME INSTALLATION & MAINTENANCE INSTRUCTIONS GS-PD8003 Rev_1 Features 2017.11 The series is a steel-framed climbing structure made of steel- loaded Nylon cables and comes protected against UV. The GS-PD8003 features GS Web Technology which includes the highest steel content and the strongest connection materials in...
- Page 3 MODEL NO. PLAY DOME Safety area and Fall Height zone GS-PD8003 Rev_1 Safety area Fall Height : 1,855mm (from surface) 2017.11 The requirements for space and safety clearances are taken from The Fall height on the external surface of a pyramid shaped space net...
-
Page 4: Foundation Layout
MODEL NO. PLAY DOME Foundation layout GS-PD8003 Rev_1 Foundation 2017.11 Please refer to the concrete foundation layout drawings for exact installation dimensions. ▲ Attach Frame plate to footing 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com GSWeb Playground Equipment... - Page 5 MODEL NO. PLAY DOME Foundation layout GS-PD8003 Rev_1 Foundation 2017.11 2 x 2 - 3/8" x L125 4 x 6 - 5/8" x L200 Set Anchor SET-ANCHOR POST PLATE CON'C CON'C CON'C 1000 <FRONT VIEW> <FRONT VIEW> <PLAN> <Foundation 1>...
- Page 6 MODEL NO. PLAY DOME GS-PD8003 Overall Assembly Rev_1 Overall Assembly 2017.11 Assemble the parts in the following order: No. 15 1. Check number of the parts and locations as next drawing. Platform 15 (Post’s location is very important.) No. 16 Platform 16 No.
-
Page 7: Overall Assembly
MODEL NO. PLAY DOME Overall Assembly GS-PD8003 Rev_1 No 61: 2017.11 Pipe Connector No. 102: M16 x L60 Pipe (upper part) No. 101: M12 x L25 Pipe (Lower part) GALVANIZED STEEL PAINTED POST Frame Assembly Assemble the parts in the following order: 1. - Page 8 MODEL NO. PLAY DOME Overall Assembly GS-PD8003 Rev_1 Net Assembly 2017.11 Assemble the parts in the following order: 1. Check the stair net’s location. 2. Put the net in place. No.6, 6-1 3. Check the net height as the picture.
- Page 9 MODEL NO. PLAY DOME Overall Assembly GS-PD8003 Rev_1 2017.11 4. Attach the net jointed eye bolt & GSWeb clamp to the post 5. Repeat with each element BOLT POST EYE BOLT ▲ Assemble GSWeb clamp in the attach with stainless steel post...
- Page 10 MODEL NO. PLAY DOME Overall Assembly GS-PD8003 Rev_1 2017.11 Repeat with Platform INSIDE INSIDE OUTSIDE OUTSIDE POST No.103 No. 62 GSWeb Clamp Bolt for Clamp x 2 No. 105: M10 x L35 No. 104: No.11~14 M10 x L35 Welded Flange Platform No.
-
Page 11: Maintenance Information
MODEL NO. PLAY DOME Tensioning & Maintenance information GS-PD8003 Rev_1 2017.11 Maintenance information Please tighten rope with Turnbuckle properly. If you strain the net too much, it may cause damage. It is also recommended that subsequent checks on tension should be carried out at monthly intervals and adjusted as required. -
Page 12: Maintenance
MODEL NO. PLAY DOME Maintenance GS-PD8003 Rev_1 2017.11 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;... - Page 13 MODEL NO. PLAY DOME Maintenance GS-PD8003 Rev_1 C. Routine maintenance 2017.11 To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
