CYBEX Eagle NX Pulldown Owner's Manual page 14

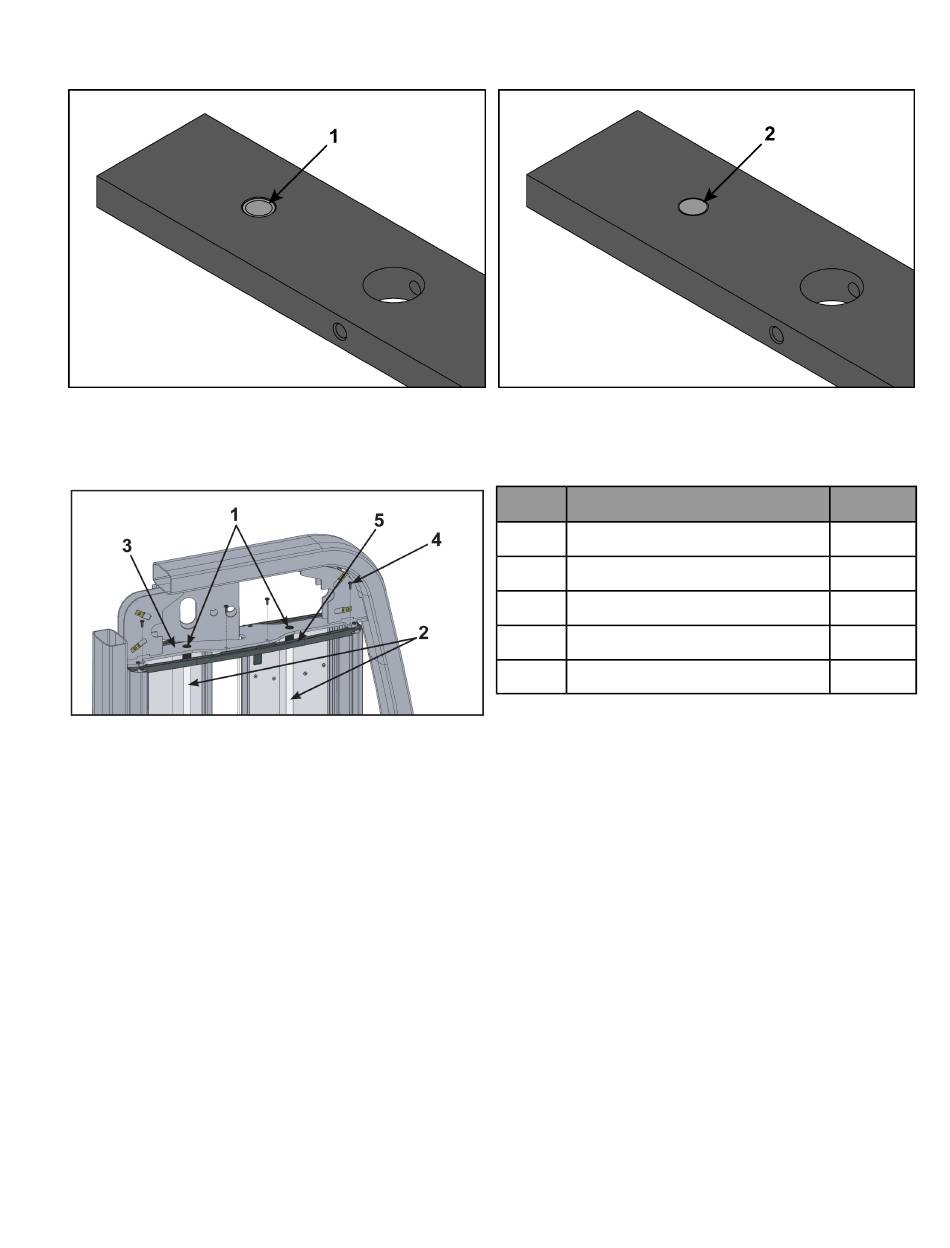

4. Install each weight plate, one at a time, so wide edge of bushing faces upward (1) and narrow edge of bushing
(2) faces downward.
Correct: Wide bushing edge upward
5. Slide top weight onto guide rods.
6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down
guide rod until cap is clear of guide rod plate and install. Repeat for opposite side.
7. Install four Phillips head screws securing plastic mount to guide rod plate.
Apply weight plate decal (if not already installed on weight plates)
1. Peel off half of backing from weight plate decals, making sure that the decals remain attached to the front
sheet.
Incorrect: Narrow bushing edge downward.
1
2
3
4
5
Page 14 of 25
Description
Top guide rod cap
Guide rod
Guide rod plate
Phillips head screw
Plastic mount
Qty
2
2
1
4
1
