CYBEX Eagle NX Pulldown Owner's Manual page 11

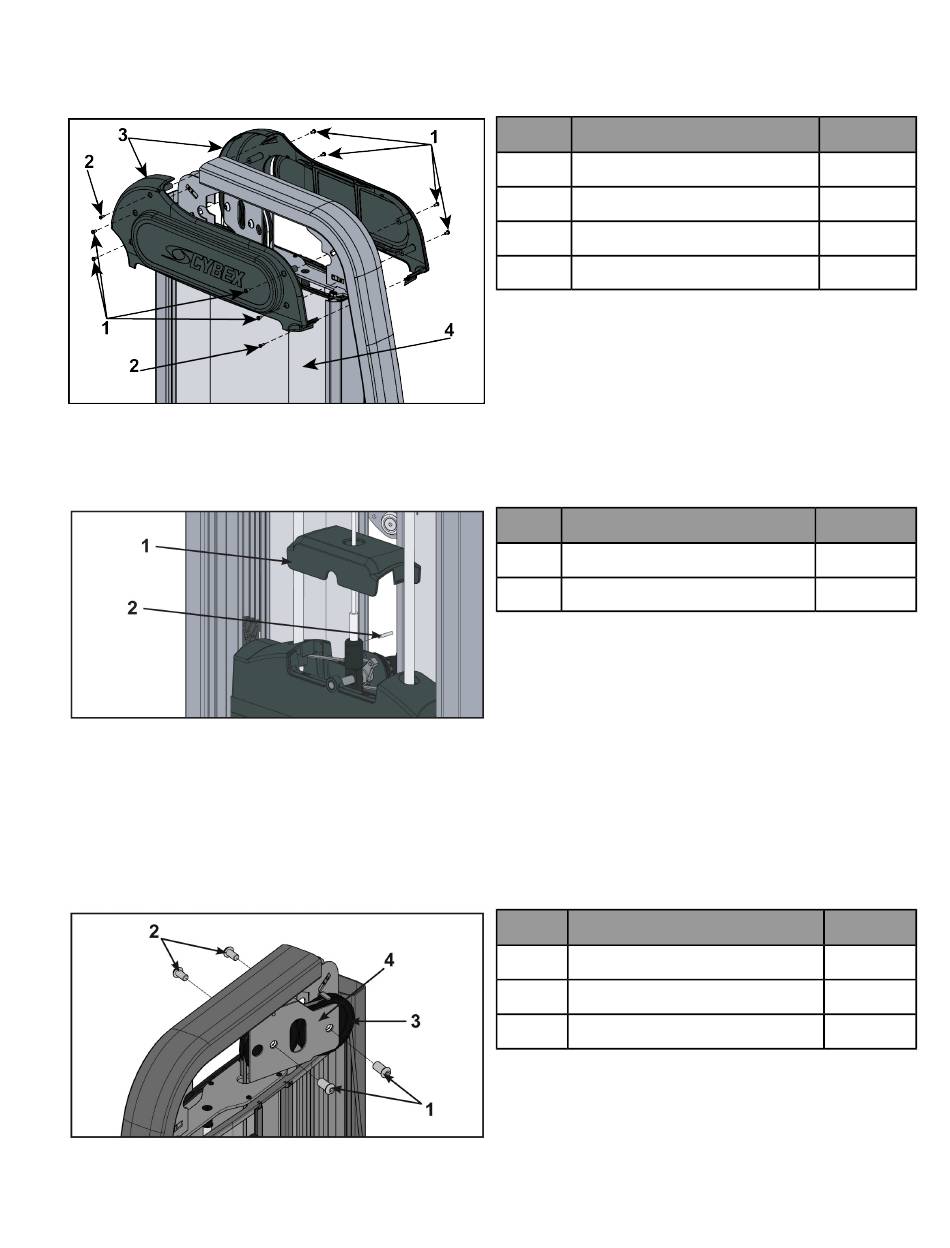

Disconnect cable
1. Make a note of the current cable routings and connections.This will assist you in reinstalling them properly.
2. Remove ten screws securing top covers (front and back) to frame using a Phillips screwdriver.
3. Guide front top cover down cable to gain access to pulley assembly.
4. Slide back panel upward and remove.
5. Squeeze sides of top weight cover together and lift up.
6. Remove spiral pin connecting cable assembly using a hammer and a 3/16" pin punch.
Remove pulley assembly
1. Remove two button head socket cap screws (BHSCS) and two pulley shaft bolts securing top two pulley
assemblies to pulley bracket using two 5/16" Allen wrenches.
1
2
3
4
1
2
1
2
3
Page 11 of 25
Description
10-32 screw
# 8 screw
Top cover
Back panel
Description
Top weight cover
Spiral pin
Description
Pulley shaft bolt
BHSCS
Pulley assembly
Qty
8
2
2
1
Qty
1
1
Qty
2
2
2
