CYBEX Eagle NX Pulldown Owner's Manual page 12

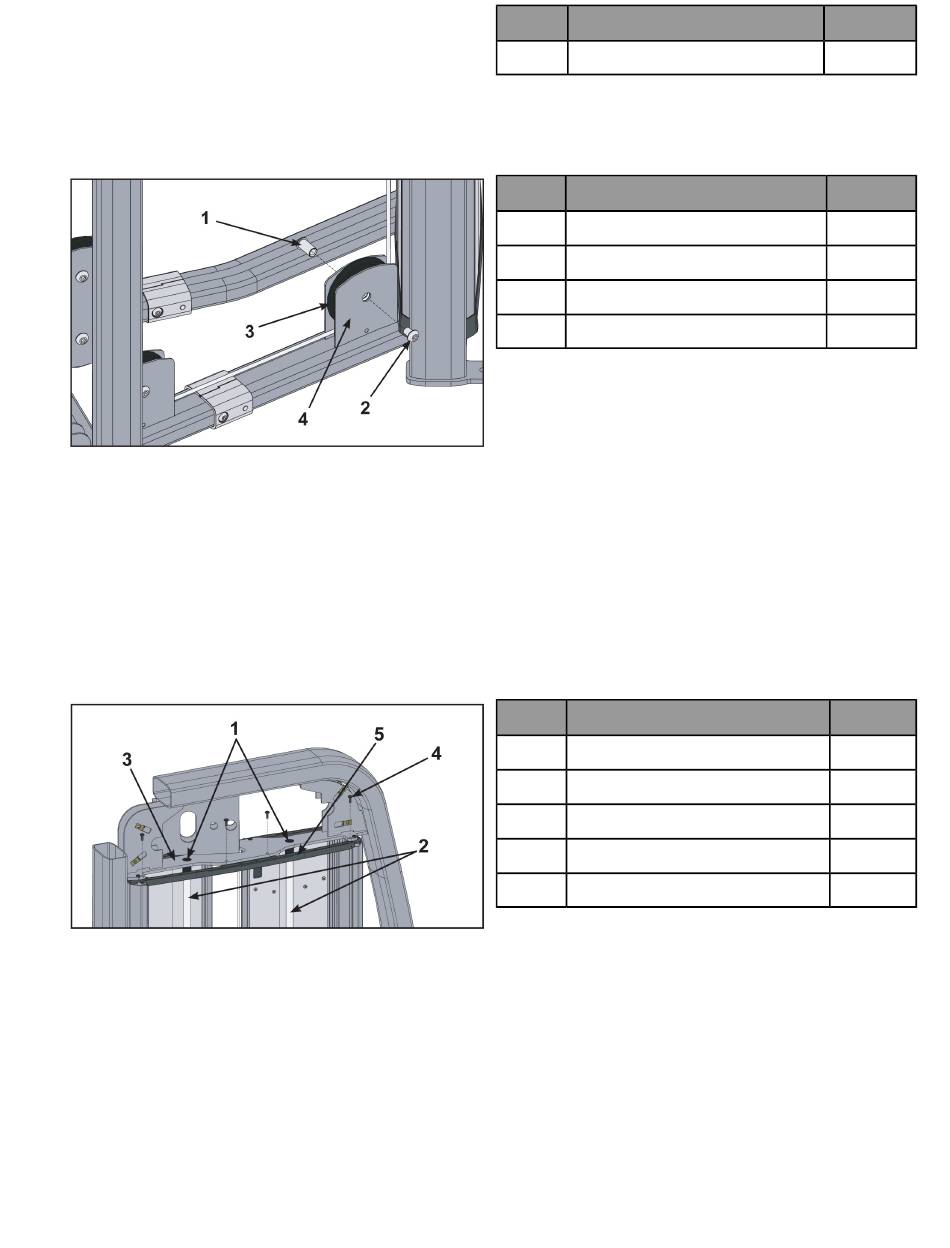

2. Remove pulley assemblies from pulley bracket.
3. Remove BHSCS and pulley shaft bolts securing lower pulley assembly to pulley bracket using two 5/16" Allen
wrenches.
4. Remove pulley assembly from pulley bracket.
5. Route cable up through top cover, guide rod plate, and pulley bracket.
6. Set cable aside for rerouting.
Remove weight plates
1. Turn the increment weight adjusting knob to select 0 lbs (0 kg).
2. Remove four Phillips head screws and plastic mount for guide rod access.
3. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if grasp is not
released slowly. Slide spring loaded top guide rod cap down guide rod until cap is clear of frame. Slowly release
grasp of top guide rod cap and set aside.
4. Repeat above step for opposite guide rod.
5. Lean guide rods slightly outward, away from machine. DO NOT put excessive pressure on guide rods, it will
damage lower guide rod caps.
6. Slide top weight up and out of the machine and set aside.
7. Remove weight plates and set aside for re-installation later.
4
1
2
3 Lower pulley assembly
4
1
2
3
4
5
Page 12 of 25
Description
Pulley bracket
Description
Pulley shaft bolt
BHSCS
Pulley bracket
Description
Top guide rod cap
Guide rod
Guide rod plate
Phillips head screw
Plastic mount
Qty
1
Qty
1
1
1
1
Qty
2
2
1
4
1
