Geeetech A30 Pro User Manual page 24

Please choose its precision firstly before manual leveling. You can choose"0.05/0.5mm". Then
adjust z axis height according to the actual situation. And click "Ok" to save its settings.
B. Click "auto level" to its interface. See picture (7-11).
First, you need to select the type of auto leveling, 3D Touch or CAS. Click the bottom icon to
select and then click the upper switch to turn on the auto leveling function. If you choose "3D
Touch", click "Push-pin up/Push-pin down" and "Alarm Release" to test whether the 3D Touch
function is normal before leveling.
And click the "Measure "icon, when the extruder head has moved to the center measure
position, click "Offset Interval" to select the appropriate offset accuracy, and adjust the
difference of height to set a available range between the bottom of 3D Touch pin and nozzle. And
then click "Save", the parameter of auto leveling is finished.
5) Click "Filament" to its interface. See picture (7-12).
Shenzhen Getech Technology Co.,Ltd

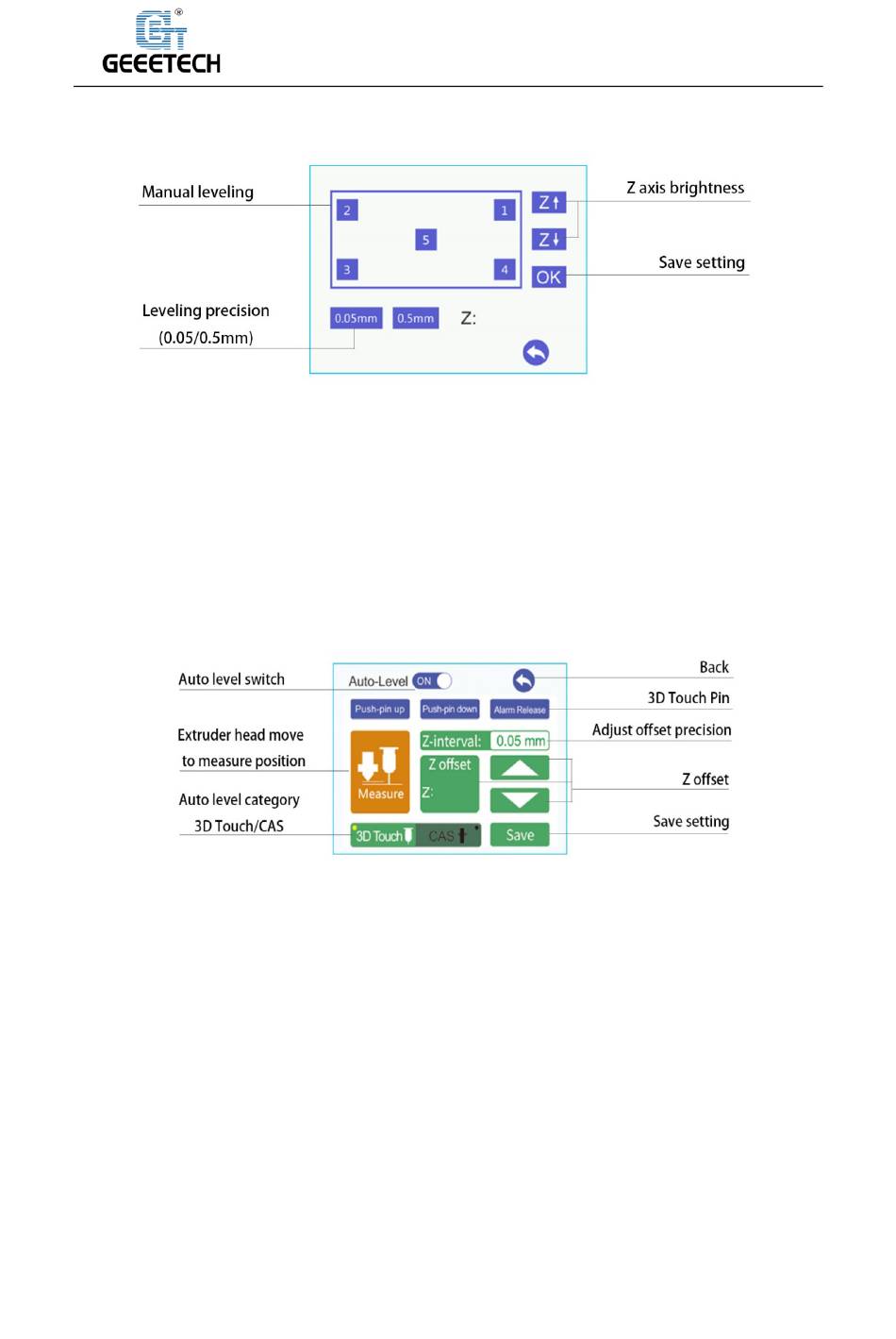

（Picture 7-10）
（Picture 7-11）
24
