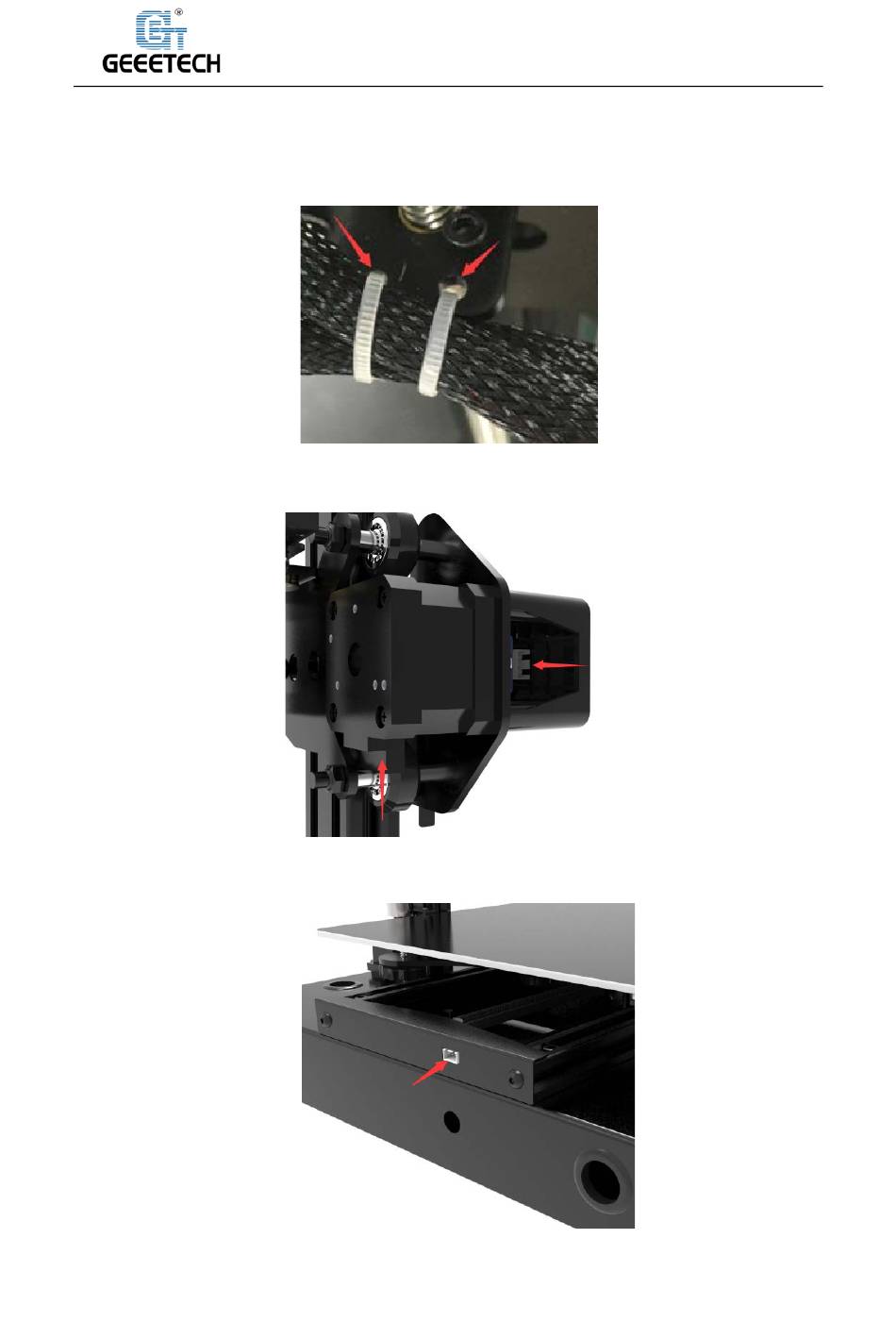

Then the extruder wire and the motor extruder wire are fixed into the small hole on the backside
of the screw with the Cable tie to avoid the wire harness touching the model during printing. In
addition, the position the harness fixed needs to reserve the length of the Z-axis at the maximum
height. See picture (5-8).
4) Connect the wires of X axis motor and limit switch. See picture (5-9).
5) Connect the wires of Y axis limit switch. See picture (5-10).
6) Connect the Z0 axis motor and the Z0 axis limit switch wire. See picture (5-11).
Shenzhen Getech Technology Co.,Ltd
（5-8）
（Picture 5-9）
（Picture 5-10）
