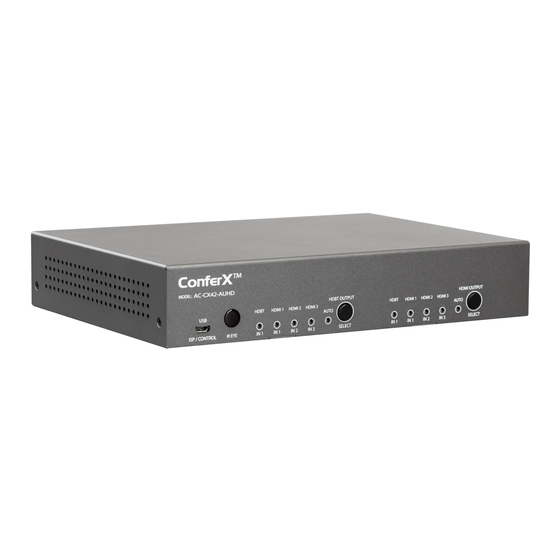

  • Page 1 AC-CX42-AUHD User Manual AC-CX42-AUHD preliminary Page 1...
  • Page 2 Advanced EDID Management · Audio input and output · Web based control GUI · Works with 3rd party control (Control4, Crestron, Savant, etc) Compatible AVProEdge HDBaseT products In The Box: HDBaseT Output/Receivers HDBaseT Input/Transmitters • AC-CX42-AUHD Matrix Switch • AC-CXWP-HDMO-T • AC-EX70-UHD-R •...
  • Page 3 AC-CX42-AUHD Page 3...
  • Page 4 AC-CX42-AUHD Page 4...

  • Page 5: Device Overview

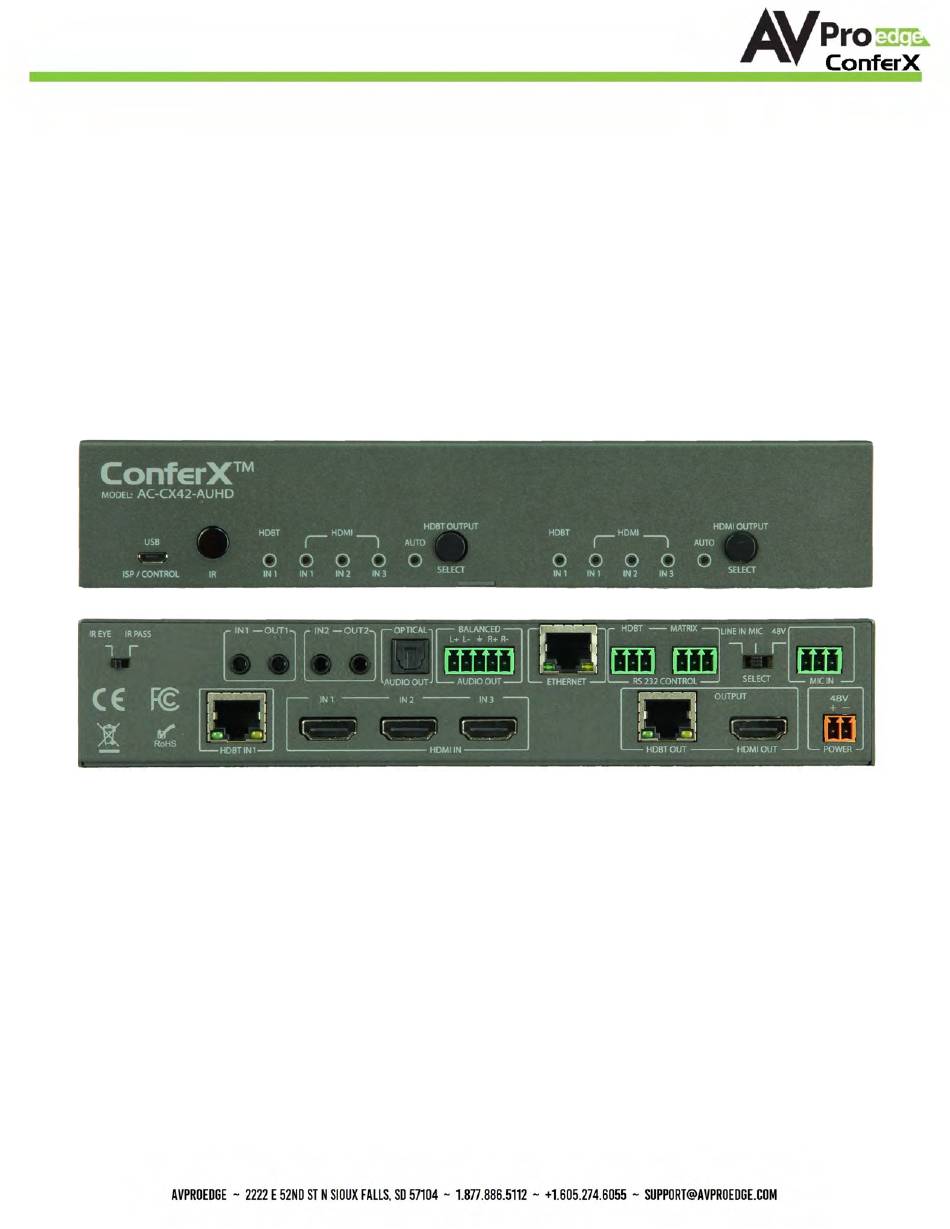

    AC-CX42-AUHD Device Overview FRONT BACK Page 5...
  • Page 6 AC-CX42-AUHD Basic Installation: The unit has an Auto-Config on boot up and reception of new sources and displays to maximize plug and play installation: 1. Plug in the display(s) or sink devices 2. Plug in the sources 3. Plug in the power supply to the AC-CX42-AUHD 4.
  • Page 7 AC-CX42-AUHD RS-232 Configuration The AC-CX42-AUHD Has two distinct RS232 Ports: 1. HDBT - This is for transmitting RS232 signals from the matrix to the remote HDBaseT Receiver. 2. MATRIX - This is for send signals to the AC-CX42-AUHD for controlling the device.
  • Page 8 AC-CX42-AUHD Page 8...
  • Page 9 AC-CX42-AUHD IR Configuration IR Mode Slide Switch: (On Back) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye. • IR PASS - The IR Input will be configured to safely operate with a direct connection from a control system using a mono or stereo 3.5mm cable.
  • Page 10 AC-CX42-AUHD IR Configuration Cont. IR OUT - The IR OUT port is send IR signals out of an IR Emitter (Pictured below) that originate at the HDBaseT Receiver OR HDBaseT Transmitter IR Emitter: Page 10...

  • Page 11: Audio Wiring Diagram

    AC-CX42-AUHD Audio Output Logic and Cable Prep: You can extract audio from toslink or balance 2CH Audio. Audio outputs are an un-decoded output. This means that what goes in, is what goes out. 2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems.
  • Page 12 AC-CX42-AUHD 1. LINE IN - Select this if input will be standard L/R audio. 2. MIC - Select this for non-powered or Dynamic microphones. 3. 48V - This if for Microphones that require Phantom Power. Page 12 Page 12...

  • Page 13: Audio Status

    AC-CX42-AUHD Web OS Overview Sense Switch Use this to switch between inputs and outputs from the web interface. HDMI Auto Switch Use this to turn HDMI Auto Sense Switching ON/OFF per output. Video Scaler Mode With the video scaler mode, you can scale the HDBaseT output (OUT1) o 4K-2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
  • Page 14 AC-CX42-AUHD Audio Binding Use this to select what Output the Audio Follows. Test Pattern Use this to turn the built in Test Pattern Generator ON/OFF for each output. EDID Manage Use this to select the EDID for each INPUT (default is 1080p 2ch) o Select from the Drop-down list, then click "Apply".

  • Page 15: System Setting

    AC-CX42-AUHD System Setting IP Settings - Default is "Static IP" with the following • Host IP Address 192.168.1.239 • Subnet Mask 255.255.255.0 • Router IP Address 192.168.1.1 • TCP Port Port Alias Setting Here you can re-label the individual Input/Outputs **Note - There is a 7 Character limit** Re-label, then click "Apply"...

  • Page 16: Maintenance

    AC-CX42-AUHD Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 17: Warranty

    If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with...

  • Page 18: Troubleshooting

    AC-CX42-AUHD  Troubleshooting • Verify Power - The HDBT and HDMI INPUT Select blue LEDs on the front will always be on when powered. • Verify Connections - Check that all cables are properly connected • Issues with one INPUT/OUTPUT - Swap ports/cables/etc to help narrow down if the issue stays with the input/output/etc Follows the device, then it may be an EDID issue.
  • Page 19 AC-CX42-AUHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 19...
  • Page 20 AC-CX42-AUHD _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 20...
  • Page 21 AC-CX42-AUHD Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! A V P r oE d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .
