- Page 1 User Manual MODEL NAME: DVP-7636HE...
- Page 2 TABLE OF CONTENTS 1. PRODUCT INTRODUCTION ........................3 1.1. P ..........................3 RODUCT RIEF 1.2. S ............................ 3 PECIFICATION 2. HARDWARE INSTALLATION....................... 5 2.1. P ........................... 5 ACKAGE ONTENTS 2.2. C ........................5 ONNECTION IAGRAM 2.3. P ..........................

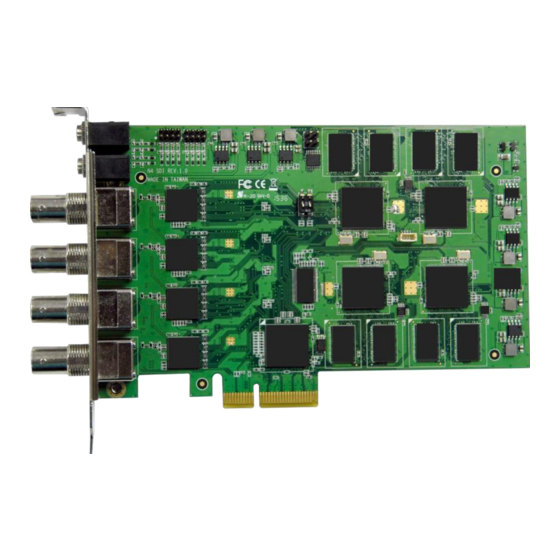

- Page 3 It supports up to 4 channel of high-definition, 1080p60 video from 4 x SDI source and selectable 2 x 3.5mm (4 mono) audio source. With hardware support, DVP-7636HE can record live video from high-definition signal sources into H.264 files.
- Page 4 3G-SDI 1920×1080p@60/50fps HD-SDI Recording 1920×1080p@30/25/24fps Video 1920×1080i@60/50fps Resolution 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps 4×SDI Embedded Audio Audio Input 2×3.5mm Audio Phone Jack PCB Audio Pin Input: 4×Stereo Audio Audio Stereo / 16-bit / 32000 ~ 48000Hz Format ✓ WatchDog Multiple ∞ Cards Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt,...
- Page 5 2. HARDWARE INSTALLATION 2.1. Package Contents Item Amount DVP-7636HE 2 x RCA to 3.5mm stereo analog audio cable 2.2. Connection Diagram Figure below is the connection diagram for supported signal and interface. Signal Connection diagram 2.3. Precaution Before proceed, make sure touch a safely grounded object or metal object before touching...
- Page 6 Wrist strap Please follow below chapter for installation operations 2.4. PCI/PCIE Turn off PC/notebook and remove power cord from AC plug/sockets on the wall. Remove notebook battery. After make sure the system is fully shut down, open the chassis. ...
- Page 7 3. SOFTWARE INSTALLATION 3.1. Support OS Windows based system Windows XP Support Windows Vista Support Windows 7 Support Windows 8/8.1 Support Windows 10 Support Linux based system Linux 2.6.14 or Higher Support 3.2. Driver Installation After install the device and reboot the PC/notebook, the “Windows Found New Hardware Wizard”...
