- Page 1 User Manual MODEL NAME: DVP-7612HE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRODUCT INTRODUCTION ........................3 1.1. P ..........................3 RODUCT RIEF 1.2. S ............................ 3 PECIFICATION 2. HARDWARE INSTALLATION....................... 5 2.1. P ........................... 5 ACKAGE ONTENTS 2.2. C ........................5 ONNECTION IAGRAM 2.3. P .......................... -
Page 3: Product Introduction

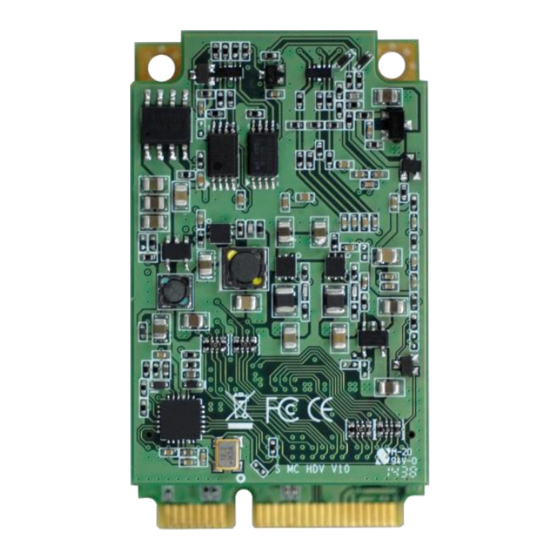

It supports up to 1 channel of high- definition, 1200p60 video from HDMI or VGA or YPbPr source and a pair of selectable L/R audio source. With hardware support, DVP-7612HE can record live video from high- definition signal sources into H.264 files. - Page 4 720×576p@50fps 720×480i@60fps 720×576i@50fps Recording Video H.264 ( Hardware Compression ) Format 1920×1200p@60/50fps 1920×1200p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps Recording 1280×1024p@60fps Video 1280×960p@60fps Resolution 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps 1×HDMI Embedded Audio Audio Input Audio L/R ( Through wafer connector ) Audio Stereo / 16-bit / 32000 ~ 48000Hz Format...
-
Page 5: Hardware Installation
2. HARDWARE INSTALLATION 2.1. Package Contents Item Amount DVP-7612HE 2.2. Connection Diagram Figure below is the connection diagram for supported signal and interface. Signal Connection diagram 2.3. Precaution Before proceed, make sure touch a safely grounded object or metal object before touching the device. -
Page 6: Minicard/Minipci
2.4. MiniCard/MiniPCI Turn off PC/notebook and remove power cord from AC plug/sockets on the wall. Remove notebook battery. After make sure the system is fully shut down, open the chassis. Unpack the device package and make sure don’t touch any electrical and ... -
Page 7: Software Installation
3. SOFTWARE INSTALLATION 3.1. Support OS Windows based system Windows XP Support Windows Vista Support Windows 7 Support Windows 8/8.1 Support Windows 10 Support Linux based system Linux 2.6.14 or Higher Support 3.2. Driver Installation After install the device and reboot the PC/notebook, the “Windows Found New Hardware Wizard”...
