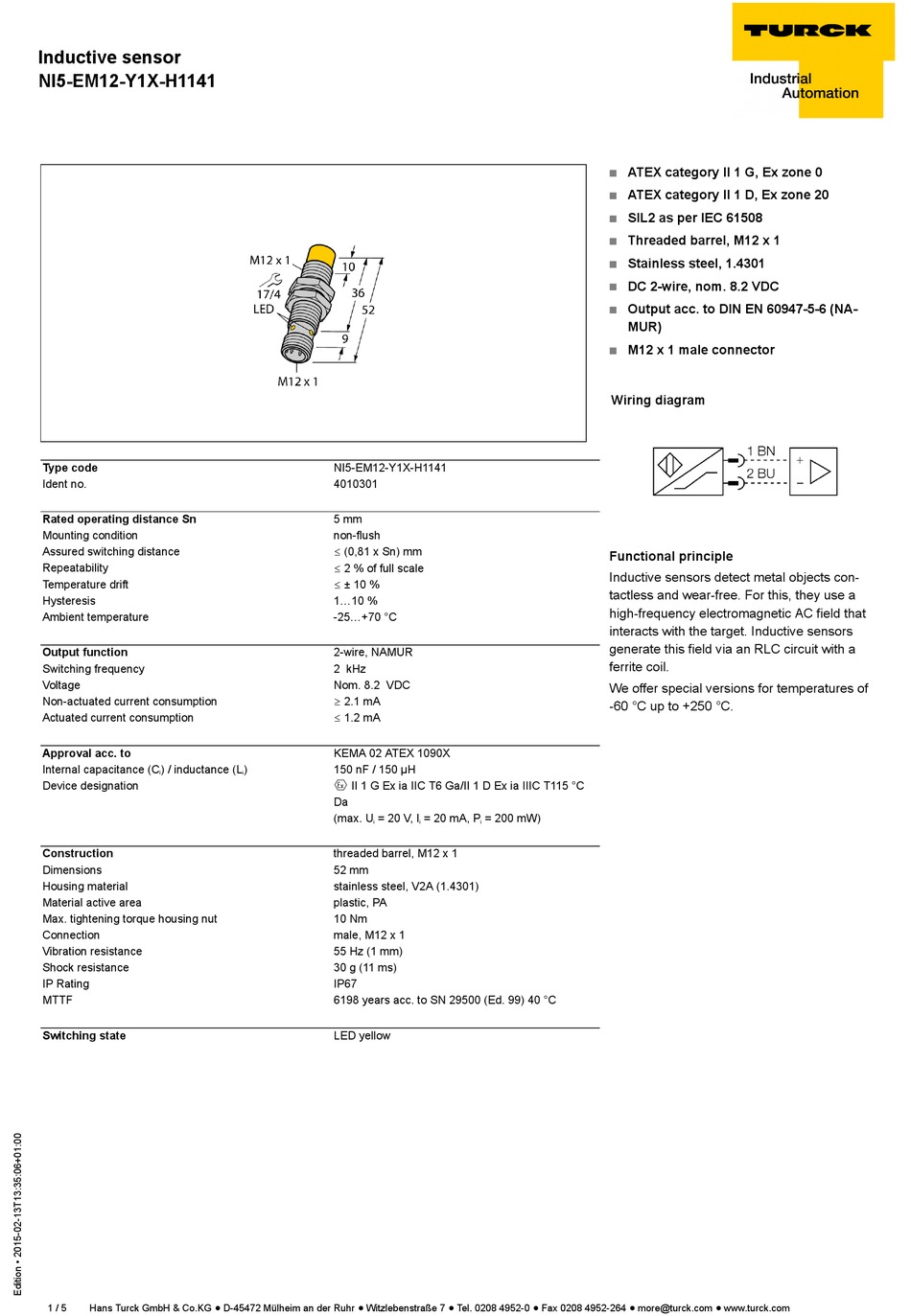

turck NI5-EM12-Y1X-H1141 Quick Start Manual

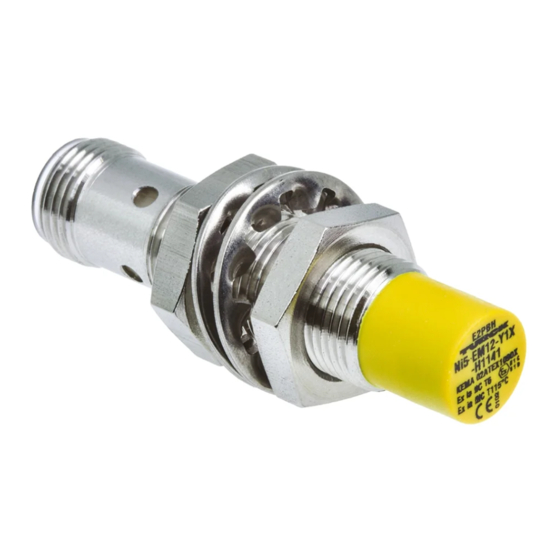

Inductive sensor
NI5-EM12-Y1X-H1141
Type code
Ident no.
Rated operating distance Sn
Mounting condition
Assured switching distance
Repeatability
Temperature drift
Hysteresis
Ambient temperature
Output function
Switching frequency
Voltage
Non-actuated current consumption
Actuated current consumption
Approval acc. to
Internal capacitance (C ) / inductance (L
i
Device designation
Construction
Dimensions
Housing material
Material active area
Max. tightening torque housing nut
Connection
Vibration resistance
Shock resistance
IP Rating
MTTF
Switching state
1 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
NI5-EM12-Y1X-H1141
4010301
5 mm
non-flush
ð (0,81 x Sn) mm
ð 2 % of full scale
ð ± 10 %
1...10 %
-25...+70 °C
2-wire, NAMUR
2 kHz
Nom. 8.2 VDC
ï 2.1 mA
ð 1.2 mA
KEMA 02 ATEX 1090X
) 150 nF / 150 µH
i
É II 1 G Ex ia IIC T6 Ga/II 1 D Ex ia IIIC T115 °C
Da
(max. U = 20 V, I
i
threaded barrel, M12 x 1
52 mm
stainless steel, V2A (1.4301)
plastic, PA
10 Nm
male, M12 x 1
55 Hz (1 mm)
30 g (11 ms)
IP67
6198 years acc. to SN 29500 (Ed. 99) 40 °C
LED yellow
= 20 mA, P = 200 mW)
i i
ATEX category II 1 G, Ex zone 0
ATEX category II 1 D, Ex zone 20
SIL2 as per IEC 61508
Threaded barrel, M12 x 1
Stainless steel, 1.4301
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NA-
MUR)
M12 x 1 male connector
Wiring diagram
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. For this, they use a
high-frequency electromagnetic AC field that
interacts with the target. Inductive sensors
generate this field via an RLC circuit with a
ferrite coil.
We offer special versions for temperatures of
-60 °C up to +250 °C.
