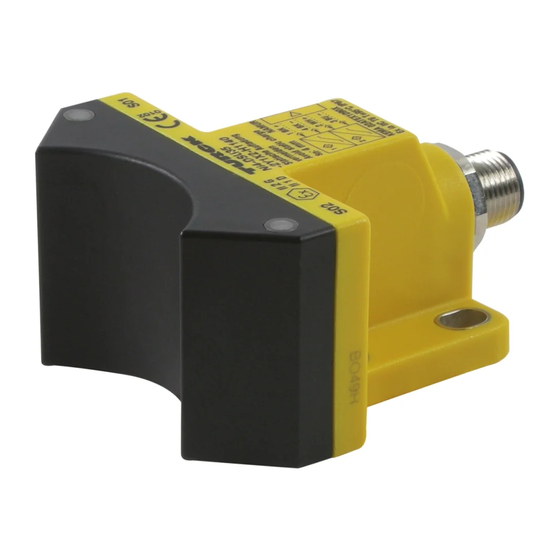

turck NI4-DSU35TC-2AP4X2/3GD Quick Start Manual

Inductive
dual sensor for rotary actuators
NI4-DSU35TC-2AP4X2/3GD
Type code
Ident no.
Rated operating distance Sn
Mounting condition
Correction factors
Repeatability
Temperaturdrift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Residual current
Rated insulation voltage
Short-circuit protection
Voltage drop at I
e
Wire breakage / Reverse polarity protection
Output function
Valve control
Switching frequency
Approval acc. to
Device designation
Design
Dimensions
Housing material
Material active face
Connection
Clamping ability
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
Included in scope of supply
1 / 4 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
NI4-DSU35TC-2AP4X2/3GD
1569911
4 mm
non-flush
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð 2 % of full scale
10 %
3...15 %
-25...+70 °C
10...65VDC
ð 10 % U
ss
ð 200 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV
yes/ cyclic
ð 1.8 V
yes/ complete
4-wire, NO contact, PNP
ð 60 V / ð 20W
0.05 kHz
ATEX test certificate TURCK Ex-03020H
Ex II 3 G Ex nA IIC T5 Gc/ II 3 D Ex t IIIC T100°C Dc
IP67
dual sensor for valve monitoring, DSU35
62x 60x 35 mm
Plastic, PP, yellow
Plastic, PP, Black
Terminal chamber
ð 2.5 mm 2
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
ñ ñ yellow / red
2 ATEX cable glands (black), 2 blanking plugs for
cable glands, 1 M20x1 blanking plug
ATEX category II 3 G, Ex Zone 2
I
ATEX category II 3 D, Ex Zone 22
I
Rectangular, housing DSU35
I
Plastic, PP-GF30-VO
I
Two outputs for monitoring the position
I
of rotary actuators
Mounting on all standard actuators
I
2 x NO contacts, PNP output
I
DC 4-wire, 10...63 VDC
I
Terminal chamber
I
Wiring diagram
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. Dual sensors are es-
pecially designed for position detection in ro-
tary actuators. They combine the reliability of
non-contact inductive sensors with the flexibil-
ity of a modular housing system.
