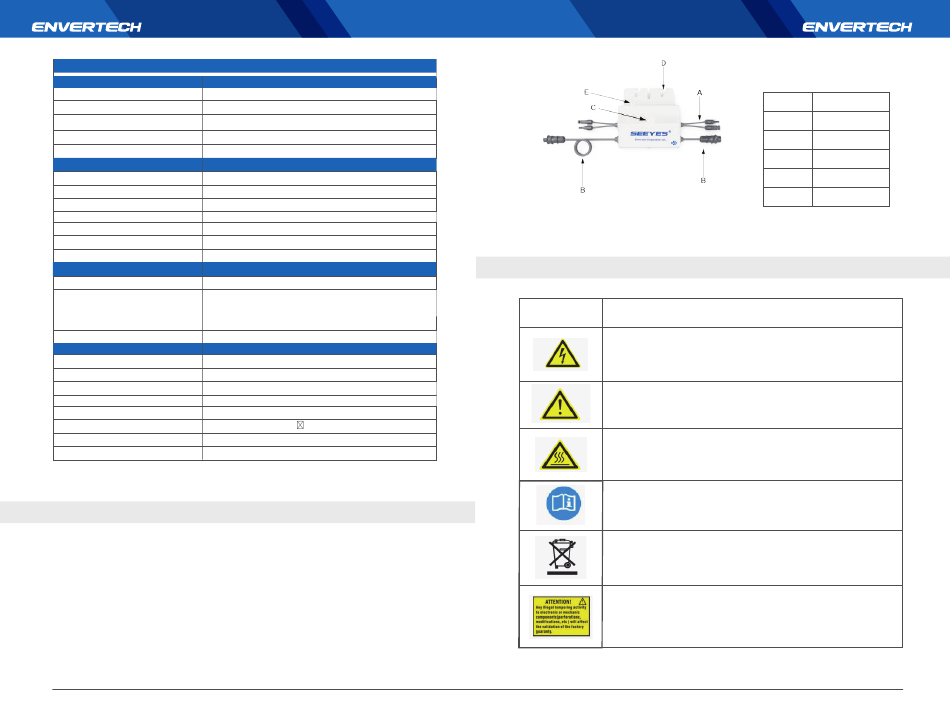

3.3 Datasheet

Model
Input Data (DC)
Max. DC Input (V)
Isc PV (Absolute Max.) (A)
Operating Range (V)
Max. Input Current (A)
MPPT Voltage Range (V)
Output Data (AC)
Normal Voltage (Vac)
Frequency (Hz)
Current (Max. continuous) (A)
Power (Max. continuous) (W)
Power Factor /Rated(default)
Total Harmonic Distortion
Maximum Units Per Branch
Features
Communication
Compliance VDE-AR-N 4105、VDE0126-1-1、UTE C15-712-1、
EN50438、IEC/EN62109-1/2、IEC/EN61000、AS4777、
Lifetime
Others
Ingress Protection (IP)
Protective Class
Temperature(℃)
Relative Humidity
Overvoltage Category
Inverter Isolation
Weight
Dimensions

4.Packing checklist

4.1 Accessories

After you receive the Envertech microinverter, please check if there is any damage on the
carton, and then check the inside completeness for any visible external damage on the
microinverter and accessories. Contact your dealer if anything is damaged or missing.
5
EVT560
54 V
15 A
18 V-54V
12A*2
24~45V
220V/230V
50Hz/60Hz
2.55A
560 W
>0.99
<3%
10 Units (12AWG Cable)
PLCC(Power Line Carrier Communication)
IEC61727、IEC61683、IEC62116
25 Years
IP 67
Class I
-40℃ to +65℃
0%～98%
OVC III (AC Main), OVC II ( PV)
□
Non-isolated High frequency isolated
2.8kg
248mm*236mm*27.5mm

4.2 Product Description

4.3 Further information

If you have any further questions concerning accessories or installation, please check our
website www.envertec.com or send an email to tech@envertec.com.

5.Planning of Microinverter Installation

5.1

Symbols on Inverter

Symbol Description
Dangerous electrical voltage
This device is directly connected to public grid, thus all work related to
theinverter shall only be carried out by qualified personnel.
NOTICE, danger!
This device directly connected with electricity generators and public grid.
Danger of hot surface
The components inside the inverter will release a log of heat during
operation. DO NOT touch aluminum casing during operating.
An error has occurred
Please go to Chapter 10 "Trouble Shooting" to repair the error.
This device SHALL NOT be disposed of in residential wastePlease go to
Chapter 9 "Recycling and Disposal" for proper treatments.
No unauthorized perforations or modifications
Any unauthorized perforations or modifications are strictly forbidden. If any
defect or damage (device/person) is occurred, Envertech shall not take any
responsibility for it.
Item Description
A
DC connectors
B AC connector
C
LED light
D
Wall bracket hole
E
Grounding hole
