3. Cover the PV module with an opaque, and then disconnect the PV module DC connectors
from the microinverter.
4. Loosen the grounding screw and remove the grounding wire.
5. Take off the microinverter from the PV frame.
Do not leave the AC connectors open for a long time. All
unused connectors must be covered by sealing caps.

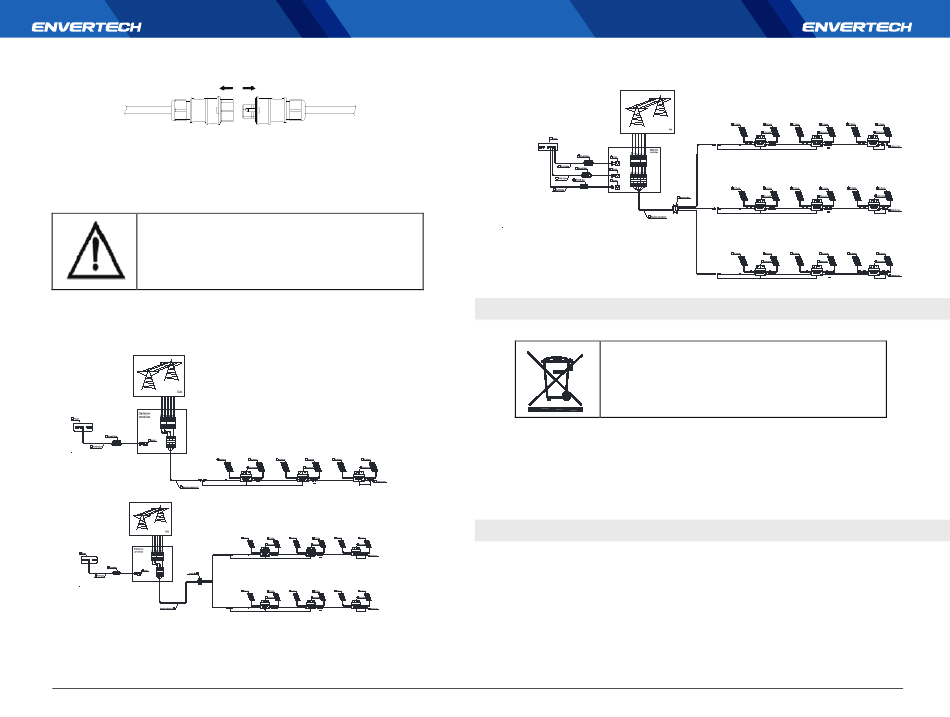

9. System Diagram

1. Single phase：
7
6
9
4
1
length 1839 mm
8
7
6
9
5
4
8
17
1 1 1 1 1
2 2 2
3
length 2100 mm length 261 mm
Microinverter(n=10)
1 1 1 1
1 1
2 2 2
3
length 261 mm
length 1839 mm length 1839 mm length 2100 mm
Microinverter(n=10)
1 1 1 1
1 1
2 2 2
3
length 1839 mm length 261 mm
length 2100 mm
Microinverter(n=10)
2. Three phase：
7
6
9
4
6 9
4
6
9
4
5
8

10. Recycling and disposal

WARNING
This device cannot be disposed in a household trash can.
In order to comply with the regulations on recycling management of electrical and
electronic wastes in various countries, electrical equipments that have reached its lifetime
must be collected separately to the unit or individual that has obtained the qualification for
disposing discarded electrical and electronic products. For any equipment that you no
longer use, please return it to your dealer for recycling, or send it to an approved recycling
unit in your area for recycling.

11. Contact

Zhejiang Envertech Corporation Ltd.
Tel： +86 579 8926 6326 Web： www.envertec.com Email：info@envertec.com
Add：24th Floor, Jintong Mansion, Center of Headquarters, Yongkang City,
Zhejiang Province, China
