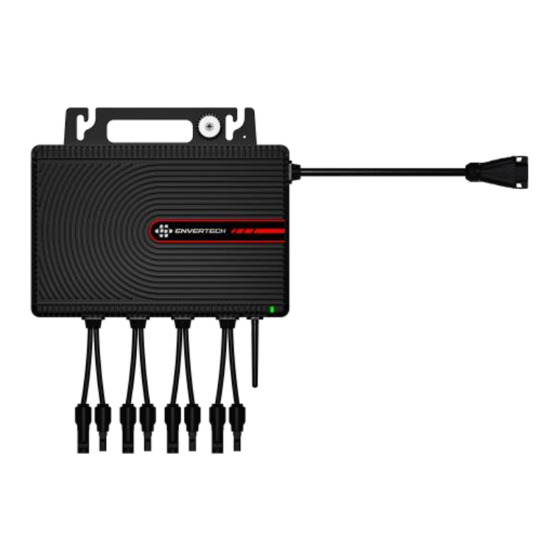

Envertech EVT1600SE User Manual
Hide thumbs
Also See for EVT1600SE:
- User manual (19 pages) ,
- Quick installation manual (7 pages) ,
- User manual (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for Envertech EVT1600SE
Summary of Contents for Envertech EVT1600SE
- Page 1 User Manual Envertech Corporation Ltd. Tel: +86 21 6858 0086 Web: www.envertec.com EVT1600SE Email: info@envertec.com Add: No.138, Xinjunhuan road, Minhang District, Shanghai, China EVT1800SE EVT2000SE USM-SE-2023-V02...
-
Page 2: Table Of Contents
Content Important Safety Information ....... 1 Read It First ............... 1 Safety Instructions ............ 1 Envertech Microinverter System ......1 How it Works ............2 Monitoring Device EnverBridge ........ 2 Optimal Reliability............. 3 Simple Design ............3 Product Information ..........3 Overview .............. -
Page 3: Important Safety Information
Please be kindly note that the Envertech microinverter itself is a heat sink. WARNING indicates a hazardous situation which, if not Under normal operating conditions, its temperature is 20°C above ambient, but avoided, can result in death or serious injury or moderate injury. -
Page 4: How It Works
The Envertech microinverter maximizes energy production from your EnverPortal: http://www.envertecportal.com photovoltaic (PV) array. Each Envertech microinverter is individually connected to one PV module in your array. This unique conjuration means that an individual Maximum Peak Power Point Tracker (MPPT) controls each PV module. This... -
Page 5: Optimal Reliability
The distributed nature of a microinverter system ensures that there is no single point failure in the PV system. Envertech Microinverters are designed to operate at full power at ambient temperatures as high as +65 ℃ (150 ℉ ). The microinverter casing is designed for outdoor installation and complies with the IP67 protection level. -
Page 6: Datasheet
3.3 Datasheet Model EVT1600SE EVT1800SE EVT2000SE Input Data（DC） Recommended Module Power Range (W) (250W～650W+)*4 (250W～650W+)*4 (250W～650W+)*4 Maximum Input Voltage (V) Minimum Start Voltage (V) Maximum Continuous Input Current (A) 20A*4 20A*4 20A*4 Maximum Input Short Circuit Current (A) Number of MPPT Output Data（AC）... -
Page 7: Preparation
4. Preparation 4.1 Packing Checklist After you receive the Envertech microinverter, please check if there is any damage on the carton, and then check the inside completeness for any visible external damage on the microinverter and accessories. Contact your dealer if... -
Page 8: Product Description
Male End Cap* (Optional) Any unauthorized perforations or modifications are strictly forbidden. If any defect or damage (device/person) is occurred, Envertech shall not take * Accessories are not included in the package and can be purchased separately. any responsibility for it. -
Page 9: Accessories
AC Extension To connect the AC side to Cable the grid. Installing Envertech microinverter system involves several key steps. Each step listed here is elaborated on the following pages. Connect multiple AC Extension Step 1. Verify voltage... - Page 10 LED light. Note: Please make sure that there are less than 2 units of EVT1800SE/EVT2000SE or less than 3 units of EVT1600SE in each branch (12AWG). The maximum number per 10 AWG branch is 3 for EVT1800SE/EVT2000SE or 4 for EVT1600SE.
- Page 11 Remove the skin of the two ends of the extension cable by y=40mm EnverBridge Installation and remove the skin of internal wires by x=14mm. Set the metal terminals Step 12. WIFI Configuration onto the open parts and clamp them to tighten the connection; Option 1.
- Page 12 Note: d. Click Configuration and wait for success. 1. Ensure that the Wi-Fi name does not contain , ; = or other special characters. 2. Check the Wi-Fi password, including spaces and special characters. 3. Ensure the Wi-Fi your phone connected to is 2.4GHz, and the connection between the router and the Internet is in good condition.
- Page 13 2. Use a browser to open the webpage: http://10.10.100.254. Log in to the 5. Fill in the corresponding Wi-Fi password and press "Save". account with the credentials below. Username: admin Password: admin 6. After the above operation, click "Restart". It will restart after 5 seconds. 3.
- Page 14 icroinverter Option 1. Use EnverView app to bind MI Step 13. Monitoring through m 1) Register a new account by app or website. Step 1. Log in your account on your mobile phone. Then go to “Settings”. Option 1. Visit www.envertecportal.com. Click Sign Up. Fill in the account information to finish registration.
- Page 15 Open EnverView APP, click [Local Mode]>>> select the EVB300 SN >>> open monitoring interface >>> enter Local History Data Query Function. Click [Time Calibration] button before use. Local Mode (Optional) Components Data query To use the local mode on EVB300, the following components should be prepared.
-
Page 16: Debugging And Operating
6.2 Microinverter Operation The Envertech microinverter is powered on when there is sufficient DC voltage from the PV module. The LED light of each microinverter will blink green to indicate normal start-up operation approximately 1 minute after DC power is applied. -
Page 17: Troubleshoot An Inoperable Microinverter
The LED of each microinverter blinks red for a while at the beginning and then WARNING: Envertech microinverters are powered by DC power from the PV blinks green to indicate normal start-up approximately 10 seconds after DC modules. Please disconnect and reconnect DC power to check the LED blinks 1 power is applied. -
Page 18: Disconnect Microinverters From Pv Modules
7.3 Disconnect Microinverters from PV Modules 1. Single phase If your problems are still unsolved with the steps above, please contact Envertech tech support through www.envertec.com. If Envertech approves the Grid replacement, please take off the microinverter according to the following instructions. -
Page 19: Recycling And Disposal
9. Recycling and Disposal WARNING: Do not attempt to repair the Envertech microinverter. It contains no user-serviceable parts. If the microinverter fails, contact your direct supplier or Envertech customer service to obtain an RMA (return merchandise authorization) number and start the replacement process.
