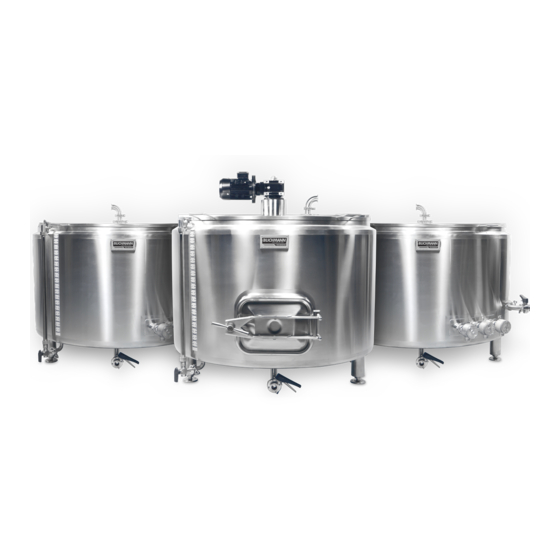

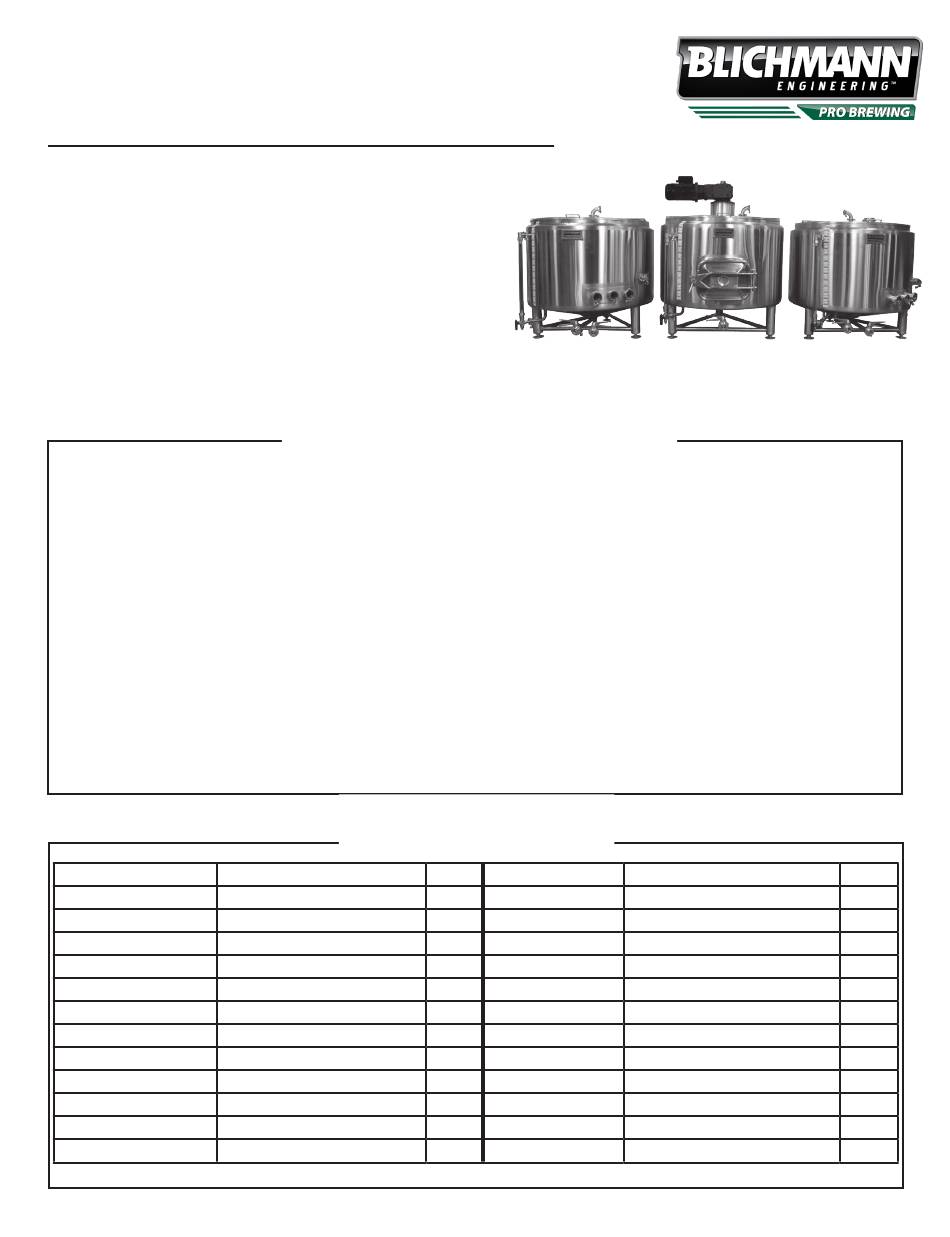

5 BBL Insulated Hybrid Brewhouse
Assembly, Operation, & Maintenance
Congratulations on your purchase, and thank you for selecting the 5 BBL Hybrid
Brewhouse from Blichmann Engineering™. We are confident that it will provide you
years of service and many gallons of outstanding beer. This manual will familiarize
you with the use, assembly, and the sanitation procedures for the product.
PLEASE READ AND THOROUGHLY UNDERSTAND THIS MANUAL PRIOR TO USE
WARNING:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please thoroughly read these sections
and understand them completely before use. If you do not understand them or have any questions, contact your
retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use.
CAUTION:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the equipment. Please
read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering
(www.BlichmannEngineering.com) before use.
IMPORTANT:
Sections labeled "Important" should specifically be followed to ensure satisfactory results with the product.
Item Number
BEPS-BK-5BBL-SW
BEPS-HLT-5BBL-SW
BEPS-MLT-5BBL-SW
BEPS-PUMP-15HP
BEPS-Pump-1HP
BEPS-CHILLER-2.0SQM
BEPS-HoseKit-5
BE-000957-00
BE-000859-00
BE-000861-00
5 BBL Insulated Hybrid Brewhouse V1
For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts
IMPORTANT INFORMATION
FOR IMPORTANT SAFETY INFORMATION!
What' s In the Box?
Description
5 BBL Boil Kettle
5 BBL Hot Liquor Tank
5 BBL Mash Tun
Controller
Sanitary Heater Set of 3
1/5hp Brewery Pump
1HP Brewery Pump
Chiller 3.5 BBL
5 Hose Assembly Kit
CIP Spear 1.5" Tri Clamp
Cap 2.5" Sanitary
2.5" Tri Clamp
© Blichmann Engineering, LLC 2018
Quantity
Item Number
1
BE-000868-00
1
BE-000633-00
1
BE-000863-00
1
BE-001356-00
2
BE-001084-00
1
BE-001186-00
1
BE-000630-00
1
BE-001132-01
1
BE-000866-00
1
BE-001482-00
3
BE-001478-00
3
BE-001479-00
Description
Clamp Gasket 1.5"
1.5" Tri Clamp
Tri Clamp Elbow 1.5"
1.5" Multi Position Valve Tri Clamp
CIP Spray Ball
1.5" Sanitary Pipe 6"
Cap 1" & 1.5" Sanitary
3.5 BBL Stand Pipe
Clamp Gasket 2.5"
6" Tri Clamp Cap
6" Tri Clamp
6" Gasket
Quantity
17
17
6
5
1
1
2
2
3
1
1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blichmann Engineering 5 BBL Insulated Hybrid Brewhouse
Summary of Contents for Blichmann Engineering 5 BBL Insulated Hybrid Brewhouse
- Page 1 Blichmann Engineering (www.BlichmannEngineering.com) before use. CAUTION: Sections labeled “Caution” can lead to equipment damage or unsatisfactory performance of the equipment. Please read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use. IMPORTANT: Sections labeled “Important”...
- Page 2 It is recommended that you consult your local codes and consult with a professional prior to purchasing or installing your ventilation equipment. For recommendations on professional ventilations contact a Blichmann Engineering Pro Brewing representative. Total power for the Boil Kettle is 27 KW.
- Page 3 Power demand for the brewhouse is 165A at 208V (three phase) or 150A at 230V (three phase). Select a main breaker setting for 20% above the appropriate amperage to avoid nuisance tripping or as directed by your local codes. 5 BBL Insulated Hybrid Brewhouse V1 © Blichmann Engineering, LLC 2018...
- Page 4 IMPORTANT: Always consult your local codes to determine what type of cable is acceptable, what gauge is required, and maximum lengths of flexible cable allowed. 5 BBL Insulated Hybrid Brewhouse V1 © Blichmann Engineering, LLC 2018 For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts...
- Page 5 VFD terminal block. Connect wiring from 104T1 to U1, 104T2 to V1, 104T3 to W1 for power and GND to the grounding screw for ground. 5 BBL Insulated Hybrid Brewhouse V1 © Blichmann Engineering, LLC 2018 For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts...
- Page 6 Figure 1 Nuts and Bolts Divot Two Piece Impeller Shaft Step 2: Place the shaft into the kettle as shown in Figure 2. Figure 2 5 BBL Insulated Hybrid Brewhouse V1 © Blichmann Engineering, LLC 2018 For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts...
- Page 7 Align the motor shaft with the gear box adapter shown in Figure 6. Gearbox Adapter Figure 6 Figure 5 Step 7: Using the nuts and bolts provided, secure the gear box to the motor. 5 BBL Insulated Hybrid Brewhouse V1 © Blichmann Engineering, LLC 2018 For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts...
- Page 8 A. Limited Warranty Blichmann Engineering warrants to the original purchaser that this product will be free from manufacturing defects in material and workmanship for a period of one (1) year from the date of purchase by the customer. Proof of purchase is required. Blichmann Engineering’s obligation to repair or replace defective materials or workmanship is the sole obligation of Blichmann Engineering under this limited warranty.
