Blichmann Engineering 1BBL Assembly, Operation & Maintenance Instructions

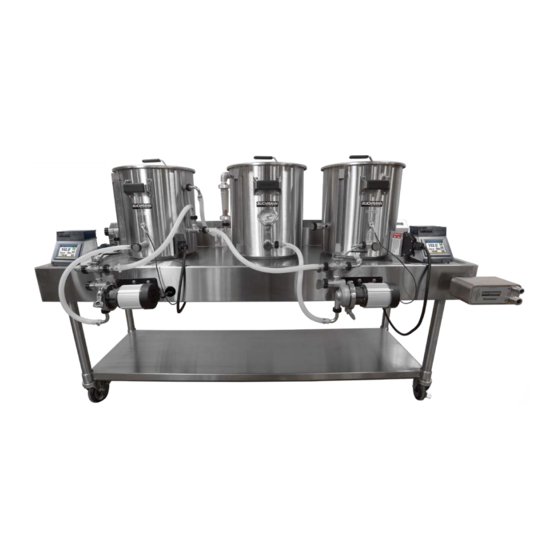

Electric Pilot System
Assembly, Operation, & Maintenance
Congratulations on your purchase, and thank you for selecting the Electric Pilot
System from Blichmann Engineering™. We are confident that it will provide you
years of service and many gallons of outstanding beer. This manual will familiarize
you with the use, assembly, and the sanitation procedures for the product.
PLEASE READ AND THOROUGHLY UNDERSTAND THIS MANUAL PRIOR TO USE
WARNING:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please thoroughly read these sections
and understand them completely before use. If you do not understand them or have any questions, contact your
retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use.
CAUTION:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the equipment. Please
read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering
(www.BlichmannEngineering.com) before use.
IMPORTANT:
Sections labeled "Important" should specifically be followed to ensure satisfactory results with the product.
1BBL Pilot Systems come with Dual Element Controllers. All other systems will come with BrewCommander™ Controllers.
Item Number
*
*
*
aRipTide-Pump
HE-002-03
aThruMometer-1/2
AutoSparge
aWhirlPool-G2
aQR-Chiller-Bkt-LTE
QC-12ELBOW-01
* = Item Number and Quantity Depend on System Size
WATCH OUR PRO PILOT SYSTEM VIDEO AT: https://tinyurl.com/propilotbe
Electric Pilot System V5
© Blichmann Engineering, LLC 2019
IMPORTANT INFORMATION
FOR IMPORTANT SAFETY INFORMATION!
What' s In the Box?
Description
G2 BoilerMaker™
Dual Element Controller / BrewCommander™ *
BoilCoil™
RipTide™ Pump
Therminator™
ThruMometer Assembly 1/2"
AutoSparge™
Whirlpool Kit
Quick Release Chiller Bracket
QC 1/2" Elbow
Quantity Item Number
3 QC-12STEM-01
QC-12NUT-01
* BE-000105-00
2 aHex_nipple_12_NPT
1 BE-000641-00
1 BE-000359-00
1 BE-000623-00
* aHERMSCoil-L
1
aRIMS-Rocket-240V-HopRocket
7
Description
QC Stem - 1/2"
QC Nut 1/2"
O-ring - QuickConnector
1/2" Hex Nipple
3-way Ball Valve
Hose - Silicone Tubing
Flow Meter
HERMS Coil
RIMS-Rocket™
Quantity
6
13
13
2
*
20 Feet
1
*
*
1
