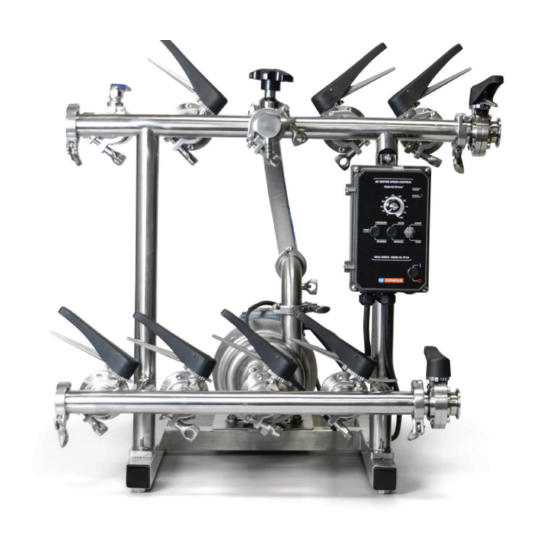

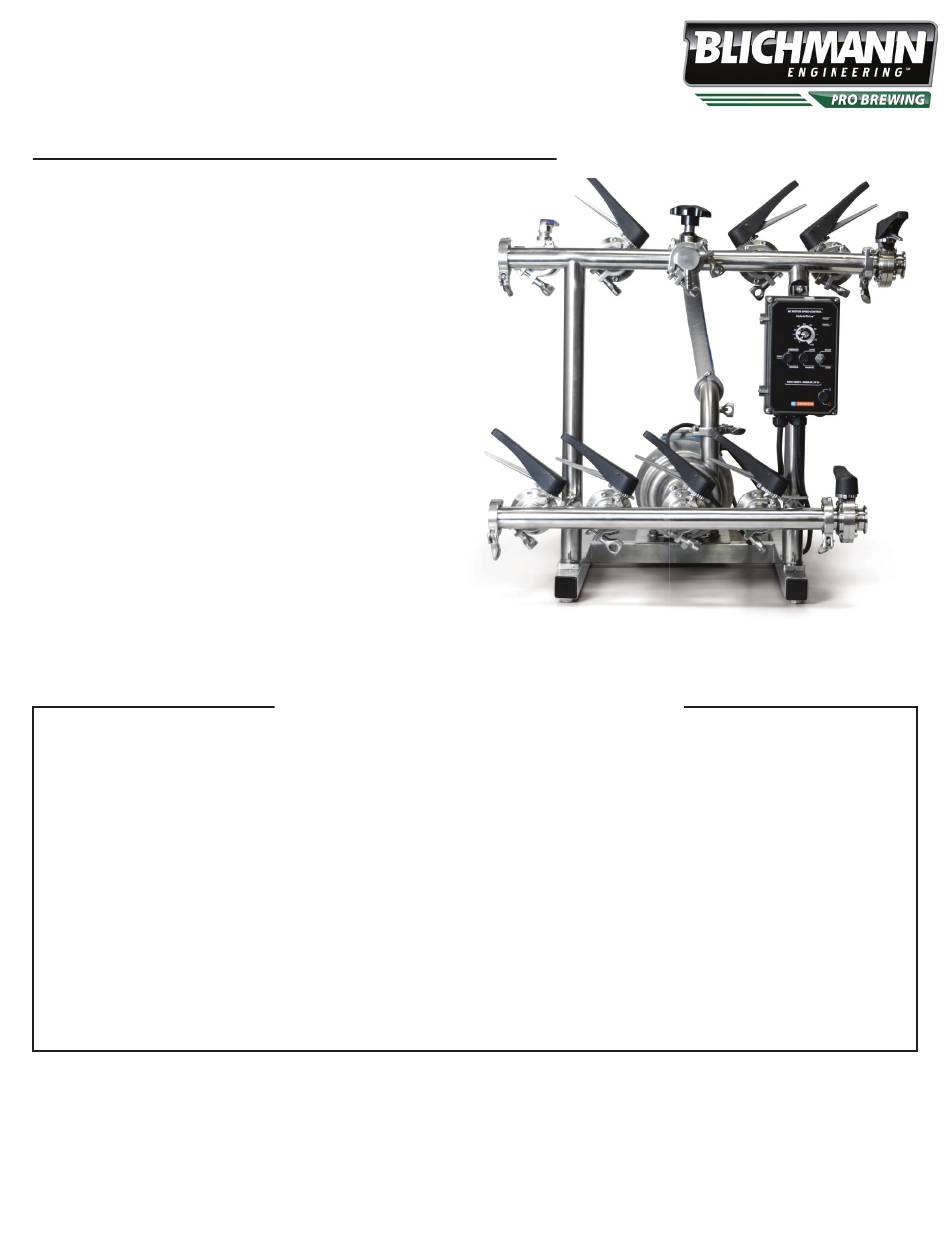

Hybrid Manifold
Assembly
Congratulations on your purchase, and thank you for selecting the Hybrid™
Manifold from Blichmann Engineering™. We are confi dent that it will provide
you years of service and many gallons of outstanding beer. This manual will
familiarize you with the assembly of the product.
PLEASE READ AND THOROUGHLY UNDERSTAND THIS MANUAL PRIOR TO USE
WARNING:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please thoroughly read these sections
and understand them completely before use. If you do not understand them or have any questions, contact your
retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use.
CAUTION:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the equipment. Please
read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering
(www.BlichmannEngineering.com) before use.
IMPORTANT:
Sections labeled "Important" should specifi cally be followed to ensure satisfactory results with the product.
Hybrid™ Manifold
REV11_19 V1
™
IMPORTANT INFORMATION
FOR IMPORTANT SAFETY INFORMATION!
© Blichmann Engineering, LLC 2019
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blichmann Engineering Hybrid Manifold
Summary of Contents for Blichmann Engineering Hybrid Manifold
- Page 1 Blichmann Engineering (www.BlichmannEngineering.com) before use. CAUTION: Sections labeled “Caution” can lead to equipment damage or unsatisfactory performance of the equipment. Please read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use. IMPORTANT: Sections labeled “Important”...
-
Page 2: What's In The Box
1.5” TC Pipe, 6” BE-001498-00 SS Washer BE-000864-00 1.5” TC Tee *For the 1HP Hybrid Manifold, it comes with a 25 ft. 14 Gauge Cord BE-000020-00 1/4”-20 x 2.25” Screw with 5-20 Plug, 16-amp Max Current Draw (Requires a 5-20R BE-000029-00 1/4”-20 Nut... - Page 3 For questions on how to assemble the proper configuration of nuts and washers, please reference Figure 3 and Figure 4. Figure 3 Figure 4 1 ½” Correct Configuration Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 4 6. Slide wires back through both Gland connector A & B to place the switch back onto the housing. 7. Tighten all 4 screws to secure the cover to the switch. 8. Tighten both Gland Connector A & B around the wires to seal the housing. Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 5 Figure 7 Figure 8 Slide Wire Slide Wire Gland Through Through Connectors Figure 9 Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 6 The bottom row of ports are the inlets to the pump and the top row of ports are the outlets. NOTE: Contact us or check our website www.blichmannpro.com for more information on pre-confi gured hose kits or custom hose packages to fi t your specifi c brewhouse. Figure 10 Outlets Elbow Confi guration Inlets Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 7 - 3 Way T Valve - 3 Way T Valve 8 - HLT Dump to HLT Pump Input, 18in - Butterfly Valve 9 - Manifold Output to Heat Exchanger, 8ft 2 BBL / 3.5 BBL Plumbing Diagram Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 8 FIGURE 16 Front view of manifold. T-shaped three-way valve on top of the mash tun allows the flexibility to bypass the mash tun kettle or it can be turned for sparging or CIP (Clean-In-Place). Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 9 - Butterfly Valve 9 - Manifold Output to Heat Exchanger, 12ft 10 - BK Draw Point to Manifold Input, 6ft 5 BBL / 7 BBL Plumbing Diagram 11 - Manifold Ouput to MT Underlet, 6ft Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 10 Straight view of the manifold assembled. T-shaped three-way valve on top of the mash tun allows the flexibility to bypass the mash tun kettle or it can be turned for sparging or CIP (Clean-In-Place). Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 11 Top view of manifold. Mash Tun Temperature Please note the orientation of the tees Sensor can be mounted to the output of the and elbows. manifold for temperture readings during mash tun recirculation. Hybrid™ Manifold © Blichmann Engineering, LLC 2019...
- Page 12 3. This warranty does not cover, and in no event shall Blichmann Engineering be liable for, travel, lodging, or any other expense incurred due to manufacturing defects in material and workmanship, or any other reason.
