Electric Pilot System
Congratulations on your purchase, and thank you for selecting the Pro Pilot System from Blichmann Engineering™.
We are confident that it will provide you years of service and many gallons of outstanding beer. This manual will
familiarize you with the assembly, operation, and maintenance of the Pro Pilot System.
**** PLEASE READ THOROUGHLY PRIOR TO USE FOR IMPORTANT SAFETY INFORMATION ****
Warning:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please read
these thoroughly and understand them completely before use. If you do not understand
them or have any questions, contact your retailer or Blichmann Engineering™ (www.Bli-
chmannEngineering.com) before use. Do NOT at ANY time operate the product until you
thoroughly read and understand these instructions!
Caution:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of
the equipment. Please read these sections thoroughly. If you have any questions, contact
your retailer or Blichmann Engineering™ (www.BlichmannEngineering.com) before use.
Important:
Sections labeled "Important" are critical to the proper performance and life of the product.
Warning: The equipment is heavy. Single person lifting could cause injury. Two people may be required to
lift and maneuver the table top during assembly. Practice proper lifting techniques and use team lift
concepts during handling. Hire a professional to assemble the unit if you cannot safely lift heavy equipment.
Failure to comply with proper lifting techniques could result in injury or death.
Assembly, Operation & Maintenance
IMPORTANT!!

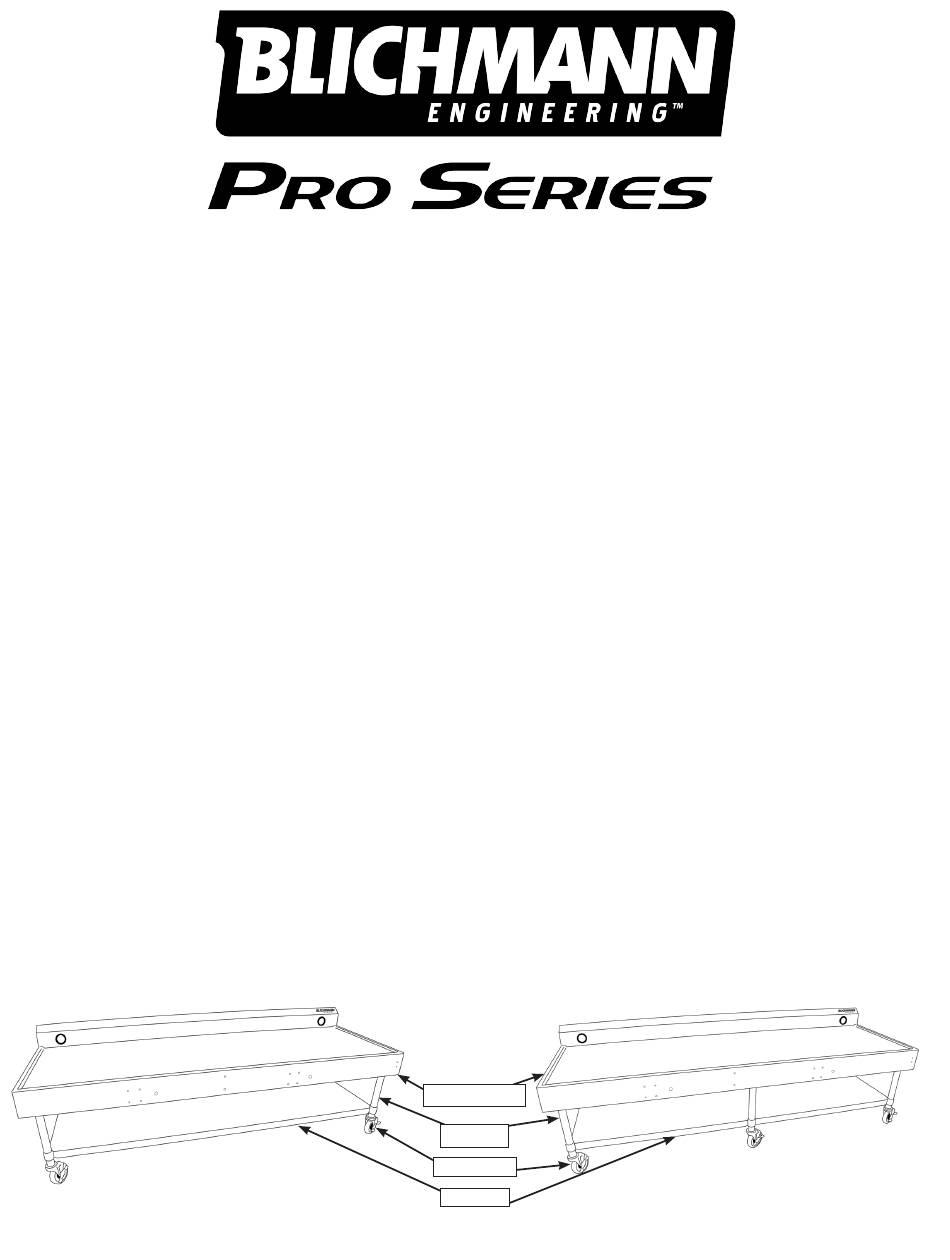

Table Top
Legs
Casters
Shelf
1
Advertisement
Related Manuals for Blichmann Engineering Pro Series
Summary of Contents for Blichmann Engineering Pro Series
- Page 1 Assembly, Operation & Maintenance Congratulations on your purchase, and thank you for selecting the Pro Pilot System from Blichmann Engineering™. We are confident that it will provide you years of service and many gallons of outstanding beer. This manual will familiarize you with the assembly, operation, and maintenance of the Pro Pilot System.
- Page 2 Table Assembly: Step 1: Set the table top upside down on the floor. Step 2: There will be either 4 or 6 slots for legs on your table. Loosen all lock screws on the table and shelf. Set all legs in place and leave all set screws loose. Step 3: Slide the shelf upside down onto the legs until the leg extends through the shelf bracket about 1 to 1 1/2 inches and tighten all set screws with the included allen wrench.
- Page 3 Wiring the RipTide™ Pumps Step 1: After the RipTide pumps are mounted, punch out three holes in the junction box. (Fig. 4) Step 2: Mount the RipTide wires and the power cable through the 1/2” conduit connector. (Fig. 5) Step 3: Mount the extra ground wire to the junction box. (Fig. 6) Wire Chart Green &...
- Page 4 Installing the Therminator™ Mount the Quick Release plate to the table using the hardware provided. Make sure to use 2 washers between the bracket and table on each hole to give enough clearance. (Fig. 10) 2 washers Fig. 10 Installing the Temperature Controllers There will be 1 or 2 cable pass-through holes in the back of the table to run the controller cords through.
- Page 5 Cord Management Your parts kit will contain Velcro straps with adhesive. Use the small straps underneath the table to hold the RipTide™ pump wires. Use the large velcro straps to mount to the back of the table. Your table will have 3 or 5 studs on the back to mount your large velcro straps to.
-
Page 6: Assembling Your System
Assembling your system There are different system configurations we offer. Use the diagram that best suits your needs. 3 Vessel RIMS System (5 gal - 20 gal) *20 Gallon Shown Refer to all manuals of each individual component for assembly and operation. Plumbing and Hardware Schematic: 3 Vessel, 1BBL System... - Page 10 3 Vessel Single Infusion (1 BBl) *1 BBL Shown...
- Page 14 Horizontal BrewEasy™ (20 gal - 1 BBl) *1 BBL Shown...
- Page 18 Any implied warranty that is found to arise by way of state or federal law, including any implied warranty of merchantability or any implied warranty of fitness, is limited in duration to the terms of this limited warranty and is limited in scope of coverage to this warranty. Blichmann Engineering disclaims any express or implied warranty, including any implied warranty of fitness for a particular purpose or merchantability, on items excluded from coverage as set forth in this limited warranty.
