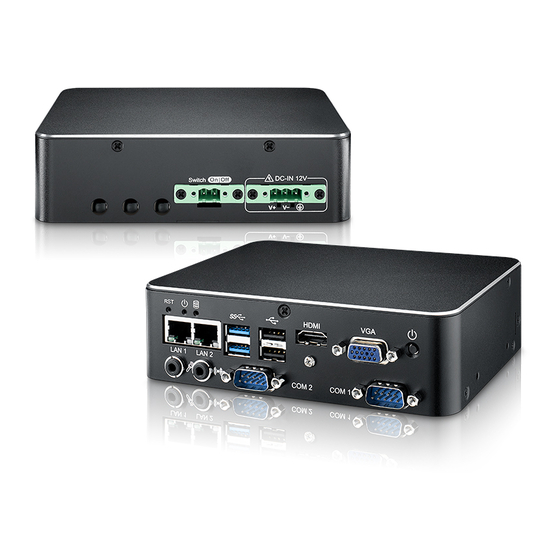

SPC-4000
Intel Atom
®
x7-E3950 (Apollo Lake) Fanless Embedded System,
Ultra-Compact, Rugged, -40°C to 85°C Operation
USER
USER
Manual
Manual
1.4.0 Edition 20190314

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPC-4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vecow SPC-4000

Summary of Contents for Vecow SPC-4000

  • Page 1 USER USER SPC-4000 Manual Manual Intel Atom ® x7-E3950 (Apollo Lake) Fanless Embedded System, Ultra-Compact, Rugged, -40°C to 85°C Operation 1.4.0 Edition 20190314...
  • Page 2 0.10 11/07/2018 Preliminary Release 1.00 11/21/2018 Official Release 1.10 01/19/2019 3, 5, 7, 52 Update 1.20 01/25/2019 Update 1.30 02/27/2019 28, 43, 44, 46, 47 Update 1.40 03/14/2019 17, 20, 25, 31, 35, 39, 44 Update ©Vecow SPC-4000 User Manual...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product;...
  • Page 4 12V DC power input ® SPC-4000, Intel Atom x7-E3950 SoC, 2 GigE LAN support IEEE SPC-4020A 1588 (PTP), 4 COM with 2 Isolated, 16 Isolated DIO, 4 USB, 1 SIM, 9V to 36V wide range DC power input ©Vecow SPC-4000 User Manual...
  • Page 5 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm Terminal Board with One 20-pin Terminal Block Connector and TMB-TMBK-20P DIN-Rail Mounting 4G Module Mini PCIe 4G/GPS Module with Antenna WiFi & Bluetooth WiFi & Bluetooth Module with Antenna ©Vecow SPC-4000 User Manual...

  • Page 6: Table Of Contents

    1.4 Mechanical Dimension 1.4.1 Dimensions of SPC-4010 1.4.2 Dimensions of SPC-4020 1.4.3 Dimensions of SPC-4020A CHAPTER 2 GETTING TO KNOW YOUR SPC-4000 2.1 Packing List 2.2 Front Panel I/O & Functions 2.3 Rear Panel I/O & Functions 2.4 Main Board Expansion Connectors 2.5 Main Board Jumper Settings...
  • Page 7 4.5 Security 4.6 Boot 4.7 Save & Exit APPENDIX A : Isolated DIO Guide APPENDIX B : Software Functions APPENDIX C : RAID Functions APPENDIX D : Power Consumption APPENDIX E : Supported Memory & Storage List ©Vecow SPC-4000 User Manual...

  • Page 8: Chapter 1 General Introduction

    Advanced Intel HD graphics 505 supports DirectX 12, OpenGL 4.3 and OpenCL 2.1 API, up to 4K resolution; Vecow SPC-4000 delivers more than 150% system performance improved and up to 300% graphics performance enhanced than the embedded engine powered by the former generation Intel ®...

  • Page 9: Features

    • 16 Isolated DIO, 6 USB, 1 SIM Socket • 3 Mini PCIe, 1 SATA III, 1 M.2 • 12V to 36V DC Power Input, optional supports 9V to 36V wide range DC Power Input • TPM 2.0 supported ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...

  • Page 10: Product Specification

    Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I210 GigE LAN supports IEEE 1588 ® LAN 2 Intel I210 GigE LAN supports IEEE 1588 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...
  • Page 11 Relative Humidity 95% at 85°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...

  • Page 12: Specifications Of Spc-4020

    Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I210 GigE LAN supports IEEE 1588 ® LAN 2 Intel I210 GigE LAN supports IEEE 1588 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...
  • Page 13 Relative Humidity 95% at 85°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...

  • Page 14: Specifications Of Spc-4020A

    Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I210 GigE LAN supports IEEE 1588 ® LAN 2 Intel I210 GigE LAN supports IEEE 1588 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...
  • Page 15 Relative Humidity 95% at 85°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...

  • Page 16: Mechanical Dimension

    5.0 (0.20”) A Detail 32.6 (1.3”) 45.8 (1.8”) 111.0 (4.4”) 1.4.3 Dimensions of SPC-4020A 190.4 (7.5”) 174.1 (6.9”) Unit : mm (inch) 155.4 (6.1”) 5.0 (0.20”) A Detail 32.6 (1.3”) 45.8 (1.8”) 111.0 (4.4”) ©Vecow SPC-4000 User Manual GENERAL INTRODUCTION...

  • Page 17: Chapter 2 Getting To Know Your Spc-4000

    GETTING TO KNOW YOUR SPC-4000 2.1 Packing List 2.1.1 Packing List for SPC-4010 Item Description SPC-4010 Embedded System SPC-4010 accessory box, which contains • Vecow Drivers & Utilities DVD • Wall-mounting bracket • Foot Pad • Screws & Terminal block...
  • Page 18 2.1.2 Packing List for SPC-4020 Item Description SPC-4020 Embedded System SPC-4020 accessory box, which contains • Vecow Drivers & Utilities DVD • Wall-mounting bracket • Foot Pad • Screws & Terminal block (Below) Item Description Outlook Usage PHILLPIS M4x16L with...
  • Page 19 2.1.3 Packing List for SPC-4020A Item Description SPC-4020A Embedded System SPC-4020A accessory box, which contains • Vecow Drivers & Utilities DVD • Wall-mounting bracket • Foot Pad • Screws & Terminal block (Below) Item Description Outlook Usage PHILLPIS M4x16L with...

  • Page 20: Front Panel I/O & Functions

    2.2 Front Panel I/O & Functions In Vecow's SPC-4000 series family, most of the general connections to the computer device, such as audio, USB, VGA, LAN Jack, Isolated COM and HDMI, are placed on the front panel. 2.2.1 SPC-4010 Front I/O & Functions 2.2.1.1 Reset Tact Switch...
  • Page 21 2.2.1.5 HDMI HDMI LAN 1 LAN 2 Isolated Isolated COM 2 COM 1 Onboard HDMI Port supports DDC channel mode. The connection supports up to 3840 x 2160 resolution at 30Hz. ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 22 HD audio and fully complies with Intel High Definition Audio (Azalia) specifications. To utilize the audio function in Windows platform, you need to install corresponding drivers for Realtek ALC892 codec. ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 23 1000Mbps Ethernet network; The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received. LED Location LED Color 10Mbps 100Mbps 1000Mbps Green/ Solid Solid Right Orange Green Orange Twinkling Twinkling Twinkling Left Yellow Yellow Yellow Yellow ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 24 Port (5-wire) (9-wire) (3-wire) TXD- TXD- DATA- TXD+ TXD+ DATA+ RXD+ RXD+ ----------- RXD- RXD- ----------- 1 to 4 ----------- RTS- ----------- ----------- RTS+ ----------- ----------- CTS+ ----------- ----------- CTS- ----------- ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 25 Please do note that a 4-second interval between each 2 power-on/power-off operation is necessary in normal working status. (For example, once turning off the system, you have to wait for 4 seconds to initiate another power-on operation). ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 26 Power System power status (on/off) 2.2.2.4 VGA HDMI LAN 1 LAN 2 Isolated Onboard VGA Port supports auxiliary channel mode. The connection supports up to 1920 x 1440 resolution at 60Hz. ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 27 3840 x 2160 resolution at 30Hz. 2.2.2.6 USB 2.0 HDMI LAN 1 LAN 2 Isolated There are 2 USB 2.0 connections available supporting up to 480MB per second data rate. ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 28 HD audio and fully complies with Intel High Definition Audio (Azalia) specifications. To utilize the audio function in Windows platform, you need to install corresponding drivers for Realtek ALC892 codec. ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 29 1000Mbps Ethernet network. The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received. LED Location LED Color 10Mbps 100Mbps 1000Mbps Green/ Solid Solid Right Orange Green Orange Twinkling Twinkling Twinkling Left Yellow Yellow Yellow Yellow ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 30 OUTPUT 0 SIO_GPO70 OUTPUT 1 SIO_GPO71 OUTPUT 2 SIO_GPO72 OUTPUT 3 SIO_GPO73 OUTPUT 4 SIO_GPO74 OUTPUT 5 SIO_GPO75 OUTPUT 6 SIO_GPO76 OUTPUT 7 SIO_GPO77 DIO_GND External 6-40VDC (NPN) External 6-48VDC (PNP) ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...

  • Page 31: Rear Panel I/O & Functions

    You could turn on or off the system power by using this contact. This terminal block supports dual function of soft power-on/power-off (instant off or delay 4 second), and suspend modes. Pin No. Definition Pin No. Definition ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 32 Port (5-wire) (9-wire) (3-wire) TXD- TXD- DATA- TXD+ TXD+ DATA+ RXD+ RXD+ ----------- RXD- RXD- ----------- 1 to 4 ----------- RTS- ----------- ----------- RTS+ ----------- ----------- CTS+ ----------- ----------- CTS- ----------- ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 33 4020A) input by terminal block in the rear side. In the normal power operation, power LED lightens in solid green and supports up to 65V surge protection. Pin No. Definition Pin No. Definition Chassis Ground ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 34 You could turn on or off the system power by using this contact. This terminal block supports dual function of soft power-on/power-off (instant off or delay 4 second), and suspend modes. Pin No. Definition Pin No. Definition ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...

  • Page 35: Main Board Expansion Connectors

    2.4 Main Board Expansion Connectors 2.4.1 SPC-4000 Main Board Pin Header Location CON1 CN18 CPU_FAN1 CN 15 CN 13 CN 16 CN14 SO-DIMM1 JDIO1 JPS2 JUSB1 JDIO2 JHDD1 CN10 CN12 CN11 JPWBTN1 VGA2 JRESET1 JSTATUS1 ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 36 HDD_LED_P 2.4.3 Battery The SPC-4000 real-time clock is powered by a lithium battery. It is equipped with Panasonic BR2032 190mAh lithium battery. It is recommended that you should not replace the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team.
  • Page 37 A_z_LINEI-L 2.4.5 JUSB1 : Internal USB 2.0 Connector JUSB1 SPC-4000 main board provides maximum eight expansion USB ports. The USB interface supports 480Mbps transfer rate which is complied with high speed USB specification Rev. 2.0. The USB interface is accessed through one 10-pin JST 1.0mm connector. You will need an adapter cable while using a standard USB connector.
  • Page 38 Mini PCIe function. The pin assignments of CN15 and JP5 are listed in the following table : Pin No. Function 1-3/2-4 mSATA Mini PCIe (Default) CN15 Pin No. Signal Name Pin No. Signal Name Reserved +3.3Vaux Reserved Reserved +1.5V ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 39 Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR Reserved 1.5V Reserved WAKE# 3.3Vaux ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 40 Signal Name Pin No. Signal Name Reserved +3.3Vaux Reserved Reserved +1.5V Reserved Reserved Reserved +3.3Vaux Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved reserved Reserved ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 41 If you want to change to RS-422 or RS-485, you can find the setting in BIOS. BIOS Setting Function RS-232 RS-422 (5-wire) COM 1 (CN6) (Isolated) COM 2 (CN7) (Isolated) RS-422 (9-wire) COM 3 (CN8) COM 4 (CN9) RS-485 RS-485 w/z auto-flow control ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 42 ----------- TXD+ TXD+ DATA+ ----------- RTS- ----------- TXD- TXD- DATA- 2.4.9 VGA VGA2 Pin No. Signal Name Pin No. Signal Name Green Blue DDC data Horizontal sync Vertical sync DDC clock ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 43 Ethernet engine. When both LAN 1 and LAN 2 work in normal status, basic iAMT function is enabled. Using suitable RJ-45 cable, you can connect SPC-4000 system to a computer, or to any other devices with Ethernet connection, for example, a hub or a switch.
  • Page 44 Yellow 2.4.12 CON1, J4 : LVDS CON1 CON1 SPC-4000 supports dual-channel 24-bit LVDS display and up to 1920 x 1200 pixels resolution. The pin assignments of CON1 are listed in the following table : Pin No. Signal Name Pin No.
  • Page 45 The LCD inverter is connected to J4 via a JST 7-pin, 2.5mm connector providing +5V/+12V power to LCD display. The pin assignments are listed in the following table : Pin No. Signal Name Pin No. Signal Name +12V +12V LBKLT_CTL LBKLT_EN ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 46 Pin No. Definition Pin No. Definition +12V +12V Only SPC-4020A can support 9V to 36V input through an additional wide range voltage power board (please find below image). ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 47 2.4.14 CN1, CN2 : SATA III Connector There are 2 onboard high performance Serial ATA III (SATA III) on SPC-4000. It supports higher storage capacity with less cabling effort and smaller required space. CN1 is co-use with CN15,which is selected by jumper JP5. The pin assignments of CN1 and CN2 are listed in the following table : Pin No.
  • Page 48 : Pin No. Signal Name Pin No. Signal Name P3V3 P3V3 P3V3 P3V3 P3V3 P3V3 S_SMB_CLK S_SMB_DAT +12V_EN_R P3V3_A BUF_PLTRST_N_A PCIE_WAKE CLK_PCIe GF1_DP CLK_PCIe GF1_DN PCIE_TXP4 PCIE_TXN4 PCIE_RXP4 PCIE_RXN4 ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 49 Signal Name Pin No. Signal Name PCIE_TXP5 PCIE_TXN5 PCIE_RXP5 PCIE_RXN5 CLK_PCIe GF2_DP CLK_PCIe GF2_DN P3V3 P3V3 P3V3 P3V3 P3V3 P3V3 USB_D_7P USB_D_6P USB_D_7N USB_D_6N P12V P12V P12V P12V P12V P12V P12V ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 50 Signal Name Pin No. Signal Name +12V FAN_TAC FAN_CTL 2.4.18 JPS2 : PS/2 Mouse Keyboard Pin Head JPS2 Pin No. Signal Name Pin No. Signal Name SIO_MCLK SIO_MDAT SIO_KCLK SIO_KDAT VCC5_KBMS ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 51 JDIO1 and JDIO2 Pin define are as below. Pin No. JDIO1 Definition JDIO2 Definition SIO_GPI80 SIO_GPI84 SIO_GPI81 SIO_GPI85 SIO_GPI82 SIO_GPI86 SIO_GPI83 SIO_GPI87 SIO_GPO70 SIO_GPO74 SIO_GPO71 SIO_GPO75 SIO_GPO72 SIO_GPO76 SIO_GPO73 SIO_GPO77 +3.3V +3.3V ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...

  • Page 52: Main Board Jumper Settings

    2.5 Main Board Jumper Settings 2.5.1 Front View of SPC-4000 Main Board With Jumper Location 2.5.2 JP3 : LVDS Module, Power Selection JP3 provides LVDS voltage selection function, closing Pin 1, 2 is for 3.3V LVDS power input; closing Pin 2, 3 is for 5V LVDS power input.
  • Page 53 2.5.5 JP2 : Backlight Control Level Select JP2 provides LVDS backlight control selection function, closing Pin 1, 2 is for 3.3V and closing Pin 2, 3 is for 5V Pin No. Function +3.3V (Default) ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...
  • Page 54 Pin No. Function +5V standby power (Default) +5V system power 2.5.7 JP7 : GPI signal pull high power rail Select Pin No. SIO_GPI80 to SIO_GPI87 Pull high to P3V3_A (Default) Hi-Z ©Vecow SPC-4000 User Manual GETTING TO KNOW YOUR SPC-4000...

  • Page 55: Chapter 3 System Setup

    SYSTEM SETUP 3.1 How to Open Your SPC-4000 3.1.1 SPC-4010/4020 Step 1 Turn SPC-4010/4020 bottom side up. Step 2 Look at the red and green sides and remove two PHILLIPS M3 screws. (Total four pcs) ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 56 Step 3 Remove two PHILLIPS M3 screws. Step 4 Remove the other two PHILLIPS M3 screws. Step 5 Remove the bottom cover. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 57 3.1.2 SPC-4020A Step 1 Remove one PHILLIPS M3 screw on the front side. Step 2 Remove two PHILLIPS M3 screws. Step 3 Remove the other two PHILLIPS M3 screws. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 58 Step 4 Remove one PHILLIPS M3 screw on the rear side. Step 5 Remove the bottom case carefully. Step 6 Finished. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 59: Installing Ddr3L Module

    3.2 Installing DDR3L Module 3.2.1 SPC-4010 Step 1 Find DDR3L SO-DIMM socket. (Note: only Non-ECC supported) Step 2 Install DDR3L RAM module Step 3 Finished. into SO-DIMM socket. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 60 3.2.2 SPC-4020/4020A Step 1 Remove two PHILLIPS M2.5 screws and DIO card. Step 2 Find DDR3L SO-DIMM socket. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 61 Step 3 Install DDR3L RAM module into SO-DIMM socket. Step 4 Finished. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 62: Installing Mini Pcie Card

    3.3 Installing Mini PCIe Card Step 1 Find Mini PCIe socket. Step 2 Install Mini PCIe card into socket. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 63 Step 3 Fasten a PHILLIPS M2.5 screw. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 64: Installing Antenna Cable

    3.4 Installing Antenna Cable Step 1 Check antenna cable, washer and nut. Step 2 Install antenna cable and then fasten washer and nut. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 65: Installing Sim Card

    3.5 Installing SIM Card Step 1 Push SIM card slot cover to open. Step 2 Open situation. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 66 Step 3 Install SIM card and close the cover. Step 4 Finished. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 67: Installing Ssd/Hdd

    3.6 Installing SSD/HDD 3.6.1 SPC-4010/4020 Step 1 Put SSD/HDD in the bottom cover. Step 2 Fasten PHILLPIS M3 screws. (one SSD/HDD with four PHILLIPS M3 screws) ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 68 Step 3 Connect SATA cable and SATA power cable to SSD/HDD. Step 4 Finished. ©Vecow SPC-4000 User Manual SYSTEM SETUP...
  • Page 69 3.6.2 SPC-4020A Step 1 Fasten PHILLPIS M3 screw. Step 2 Finished. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 70: Mounting Your Spc-4000

    3.7 Mounting Your SPC-4000 3.7.1 Wall mount Fasten four PHILLIPS M3 screws. 3.7.2 Din Rail Fasten four PHILLIPS M3 screws. ©Vecow SPC-4000 User Manual SYSTEM SETUP...

  • Page 71: Chapter 4 Bios Setup

    Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 72: Main Menu

    Set the time. Use <Tab> to switch between time elements. 4.3 Advanced Figure 4-3 : BIOS Advanced menu Select advanced tab to enter advanced BIOS setup options, such as CPU configuration, Network configuration, and USB configuration. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 73 Serial Port 1 to port 4 Configuration Options for Serial Port 1 to Serial Port 4. Entering the corresponding Port option then end user can change the settings such as I/O resource and UART mode. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 74 Both computers should have the same or compatible settings. Legacy Console Redirection Legacy Console Redirection Settings. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console redirection enable or disable. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 75 Enable this to disable core in each processor package. Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. VT-d Enable/Disable CPU VT-d. Figure 4-3-6-2 : CPU Information Socket specific CPU Information. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 76 Enable Ipv6 PXE boot Support. If disabled IPV6 PXE boot option will not be created. PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 77 Controls the execution of UEFI and Legacy Storage OpROM. Video Controls the execution of UEFI and Legacy Video OpROM. Other PCI devices Determines OpROM execution policy for devices other than Network, Storage, or Video. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 78: Chipset

    Figure 4-4-1 : North Bridge Settings Max TOLUD Maximum Value of TOLUD. Above 4GB MMIO BIOS assignment Enable/Disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when Aperture Size is set to 2048MB. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 79 Select the target OS. 4.4.3 LVDS Configuration Figure 4-4-3 : LVDS Panel Settings The LVDS Configuration option will be present if LVDS panel is connected on system. LCD Panel Type Select LCD Panel Resolution. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 80 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device DVMT Total Gfx Mem Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device Cd Clock Frequency Select the highest Cd Clock frequency supported by the platform ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 81 Compliance Mode Enable/Disable. Riser Card Slot Riser Card Slot settings. Intel(R) Ethernet Controller I210 Intel(R) Ethernet Controller I210 Settings Mini PCIe Slot with SMI Mini PCIe Slot with SIM settings. Mini PCIe/mSATA Mini PCIe/mSATA Slot Settings. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 82 Otherwise all drives spin up at boot. SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. ©Vecow SPC-4000 User Manual BIOS SETUP...
  • Page 83 Enable/Disable the SC BIOS Lock Enable feature. Required to be enabled to ensure SMM protection of flash. RTC Lock Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM. Flash Protection Range Registers (FPRR) Enable Flash Protection Range Registers. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 84: Security

    Discard or save changes option in setup dies not have any impact on HDD when password is set or removed. If the "Set HDD User Password" option is grayed out, do power cycle to enable the option again. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 85: Boot

    Select the keyboard NumLock state. Quiet Boot Enables or disables Quiet Boot option. Boot Option #x Sets the system boot order. New Boot Option Policy Controls the placement of newly detected UEFI boot options. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 86: Save & Exit

    Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. ©Vecow SPC-4000 User Manual BIOS SETUP...

  • Page 87: Appendix A : Isolated Dio Guide

    APPENDIX A : Isolated DIO Guide A.1 Function Description SPC-4000 offers a 16-bit Isolated DIO 20-pin terminal block connector and a watchdog timer. Isolated DIO pins are fixed by Hardware design that cannot change in/out direction in runtime process. DIO definition is shown below : Pin No.
  • Page 88 DO reference circuit : Sink Mode Device DIO Connector (NPN, Default) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) Source Mode Device DIO Connector (PNP) 6-48V DC DIO_VDC (Pin 20) DO (Pin11-18) DIO_GND (Pin10,19) ©Vecow SPC-4000 User Manual Appendix A...
  • Page 89 Sample folder include sample program, driver library, and API library. Source folder include sample program source code that compile on Visual Studio 2008. A.4 Sample Execute DIO demo tool (SPC4K.exe). Sample SPC4K.exe, as shown below : ©Vecow SPC-4000 User Manual Appendix A...
  • Page 90 DO/DIO pin writable check button (pin 18 ~ pin 11/pin 18 ~ pin 11, pin 8 ~ pin 1) : User setting, DO/DIO pin writable of DIO configuration. Use for Read (DIO)/Write button activate. ©Vecow SPC-4000 User Manual Appendix A...
  • Page 91 WDT counting by program timer after set WDT. Shown after Write button action. WDT setup day format texts (user setting) : User setting, WDT value, format : day‘hour’minute’second.. WDT counting day format text (read only) : WDT counting, format : day‘hour'minute'second. ©Vecow SPC-4000 User Manual Appendix A...

  • Page 92: Appendix B : Software Functions

    Mask ([15:0]) : In/Out, pin setting by hexadecimal bitmask 1 : Output; 0 : Input Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or call by pointer error, or hardware problem) ©Vecow SPC-4000 User Manual Appendix B...
  • Page 93 Set isolated DIO output (DO) DO ([7:0]) : Output state, pin setting by hexadecimal bitmask 1 : High; 0 : Low Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or hardware problem) ©Vecow SPC-4000 User Manual Appendix B...
  • Page 94 FALSE (0) : Fail (Initial error, or setup 0 error, or hardware problem) BOOL CancelWDT () Cancel watchdog timer Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or hardware problem) ©Vecow SPC-4000 User Manual Appendix B...

  • Page 95: Appendix C : Raid Functions

    Advanced → SATA Configuration → SATA Mode Selection C.2 OS Installation SPC-4000 is featured with three SATA, including two internal SATA and 1 mSATA. You can select one of the SATA ports for OS installation. We use CFast card for Windows 10 OS installation as an example.
  • Page 96 C.6 To Create RAID Volume on "Rapid Storage Technology" Software SPC-4000 is featured with three SATA devices for RAID volume, so there are three options for choose on this page. Let's take RAID 1 as an example, please select "RAID 1".
  • Page 97 Then add "Logical Device" for Windows access. C.8 If One SATA HDD on RAID Volume is Out-of-use After RAID 1 volume created, you can see the figure of SATA device allocation. HDD CAUTION Sign ©Vecow SPC-4000 User Manual Appendix C...
  • Page 98 A warning will pop-up to ask you if the disk is not a member of the original RAID volume. If you press "Rebuild", it will replace the broken SATA HDD to the last SATA HDD of RAID volume. ©Vecow SPC-4000 User Manual Appendix C...

  • Page 99: Appendix D : Power Consumption

    SATA 0 Intel SSD E5400s 120GB SATA 1 Toshiba HDD MQ01ABD050 500GB LAN 1 (i210) 1.0 Gbps LAN 2 (i210) 1.0 Gbps Graphics Output HDMI Power Plan Balance (Windows10 Power plan) Power Source Chroma 62006P-100-25 ©Vecow SPC-4000 User Manual Appendix D...
  • Page 100 E3950 Power on and boot to Win 7 (64bit) Run 100% CPU Run 100% CPU Power usage without 3D usage with 3D Input Current Consumption Current Consumption Apollo Lake 1.271A 15.25W 1.702A 20.42W E3950 ©Vecow SPC-4000 User Manual Appendix D...
  • Page 101 PASS PASS PASS PASS PASS (Socket 1) E.2 NON-ECC Test Temp. Brand Info (Celsius) 25ºC Vecow 4GB 240PIN DDR3L-1333 SODIMM M340L-W28M1 25ºC 25ºC Kingston 2GB 240PIN DDR3L-1600 SODIMM KVR16LS11S6/2 25ºC 25ºC Kingston 4GB 240PIN DDR3L-1600 SODIMM KVR16LS11/4 25ºC 25ºC CT51264BF160BJ.
  • Page 102 Innodisk 3MG2-P DGS25-64GD81BC1QC 64GB Intel SSD 540s SSDSC2KW120H6 120GB SATA SSD Intel SSD E 5400s SSDSC2KR120H6 120GB MEMXPRO 2.5" SSD M3A 128GB 128GB LITE-ON K8-L1256 256GB LITE-ON K8-L1512 512GB SATA HDD TOSHIBA MQ01ABF050 500GB ©Vecow SPC-4000 User Manual Appendix E...
  • Page 103 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2019. All rights reserved.
