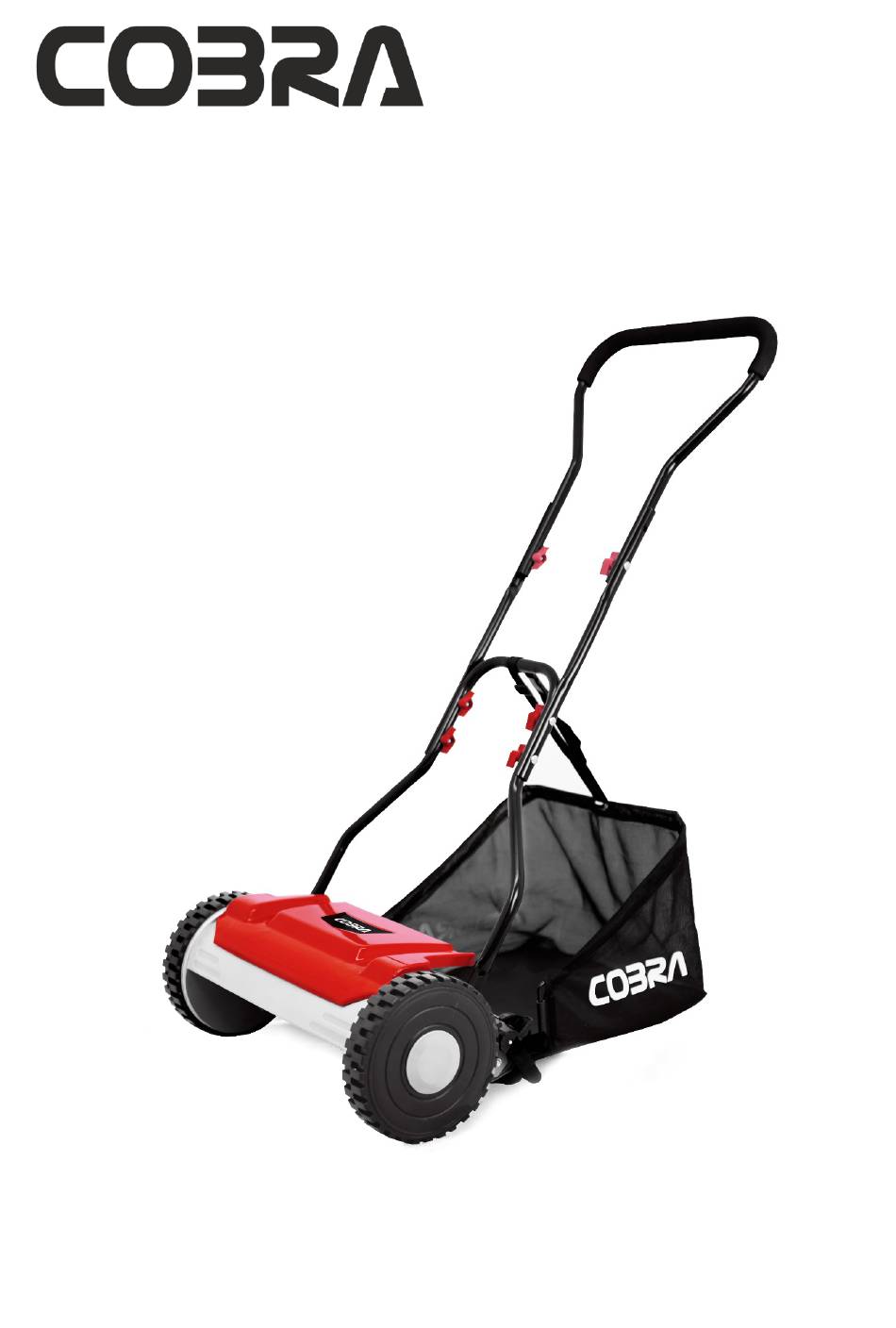

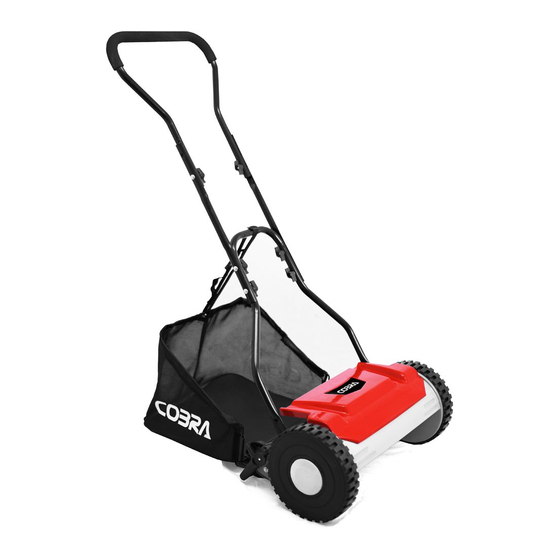

- Page 1 MODEL: HM381 COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk...
- Page 2 WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. GENERAL SAFETY RULES WARNING When using petrol tools, basic safety precautions, including the following, should always be followed to reduce the risk of serious personal injury and/or damage to the unit.
- Page 3 In time your chassis may peel because of the abrasive action of the debris making contact. This can be remedied by touching up paintwork where necessary to prevent corrosion. Warning: Do not touch the blade. 2. PARTS DESCRIPTION 3. TECHNICAL DATA Model HM381 Cutting width 38 cm Height of Cut 13, 23, 32 and 38 mm Net Weight...
- Page 4 4. ASSEMBLY The handle assembly is constructed in four parts. An upper handle frame, two middle handle tubes and a lower handle frame. Lower Handle Assembly The assembly requires the two middle tube sections to be bolted to the lower and upper handle frames.
- Page 5 Fitting the Handles to the Mower Body Align the large holes at the bottom ends of the handle assembly with the lugs of the mower body as illustrated. Carefully squeeze the ends together and release over the lugs of the mower. Fit the Split Pin Fit the split pin to secure the handle frame to the mower, as shown.
- Page 6 Grass is ripped out rather than Adjust the blade and cylinder settings as shown cleanly cut. above. The cylinder and bottom blade are Replace or sharpen the blades by a Cobra blunt. dealer. Excessive vibration and Damaged cylinder or bottom blade Replace the damaged blades.
- Page 7 Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration.
