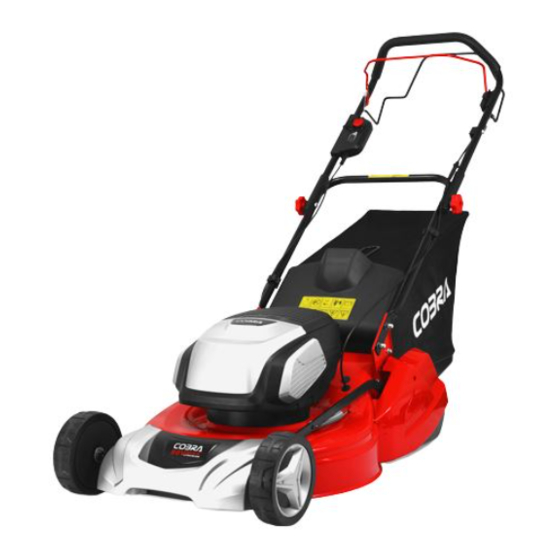

MODEL: RM51SP80V (DYM192611)
COBRA LAWN MOWER
OWNER'S MANUAL
WARNING!
When using the machine the safety rules must be followed. For your own safety and bystanders please read these
instructions before operating the machine. Please keep the instructions safe for later use.
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM51SP80V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cobra RM51SP80V

Summary of Contents for Cobra RM51SP80V

  • Page 1 MODEL: RM51SP80V (DYM192611) COBRA LAWN MOWER OWNER’S MANUAL WARNING! When using the machine the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the machine. Please keep the instructions safe for later use.

  • Page 2: Table Of Contents

    CONTENT SECTION 1 SYMBOLS MARKED ON THE PRODUCT ……………..………….….3 SECTION 2 GENERAL SAFETY RULES……………… ……………..….………….4 SECTION 3 GENERAL IDENTIFICATION ……………………………….…………7 SECTION 4 TECHNICAL DATA ....………………………………………..7 SECTION 5 ASSEMBLY ......…………………………………………8 SECTION 6 ADJUSTMENT OF CUTTING HEIGHT..……………………………10 SECTION 7 SAFETY PRECAUTIONS…………………………………..………11 SECTION 8 OPERATION INSTRUCTIONS…………..……………………...…..11 SECTION 9 BLADE ........

  • Page 3: Section 1 Symbols Marked On The Product

    KNOW YOUR LAWN MOWER Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn mower. Following these simple instructions will also maintain your lawn mower in good working order. Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency.

  • Page 4: Section 2 General Safety Rules

    Battery Disposal: Old accumulators and batteries must not be added to household waste, but should be disposed of in accordance with the applicable legislation. Take unusable rechargeable batteries to the dealer’s or community’s battery collection point. Disposing of the packaging: The packaging is made of cardboard and separately labeled foil which is also recyclable.
  • Page 5 IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. 1) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 2) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator 3) Never mow while people, especially children, or pets are nearby.
  • Page 6 27) Check the grass catcher frequently for wear or deterioration. 28) Replace worn or damaged parts for safety. 29) Children are not allowed to use the machine. 30) This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 7: Section 3 General Identification

    7. Deck 8.Battery door 9.Cable clamp 10. Locking knob 11. Self-drive control handle 12. Brake control handle 4. TECHNICAL DATA Model: RM51SP80V (DYM192611) Rated Voltage: 80V d.c. No Load Speed: 2800min Cutting Width: 510mm Grass catch bag capacity Net Weight: 32.6kg...

  • Page 8: Section 5 Assembly

    Vibration 2.5 m/s² K=1.5 m/s² Battery Lithium-ion Model Number DYMA104 Rated Voltage 40Vd.c. Capacity 5.0AH/180Wh Number of Battery 20pcs Battery Charger Model Number DYMA85 Input 220-240VAC,50Hz,2A Output 40Vd.c.,4A Allowable Charging Temperature 0-50℃ Range 5. ASSEMBLY 5.1 FOLDING HANDLE 1. Fix the lower handlebars into the unit body with bolts, washers, and locking nuts using a suitable spanner. (Fig.2A/Fig.2B/Fig.2C/Fig.
  • Page 9 Fig.3A Fig.3B Fig.3C Fig.3D Fig3E 5.3 FIT THE ISOLATOR KEY 1. Open the battery door. (Fig.4A) 2. Insert the isolator key into the slot. (Fig. 4B） Fig.4A Fig.4B 5.4 FIT THE BATTERIES 1. Open the battery door. 2. Make sure the isolator key is switched off. Switch mark ”1” is ON”, “0” is “OFF”. (Fig. 5A) 3.

  • Page 10: Section 6 Adjustment Of Cutting Height

    Fig.5D 5.5 REMOVE THE BATTERY 1. Open and hold up the battery door. 2. Press and hold the battery latch button at the bottom of the battery pack. (Fig.6) 3. Remove battery pack from the product. (Fig.6) Fig.6 5.6 Rear Roller The wide rear roller cuts right up to the edge of borders and create classic stripes so you'll achieve a beautiful finish to your lawn with ease.

  • Page 11: Section 7 Safety Precautions

    Fig.8 WARNING: Make this adjustment only when the blade is stopped. WARNING: Make sure the isolator key is switched to the off position. 7. SAFETY PRECAUTIONS 1. Always operate with the deflector or grass catcher in the correct position. 2. Always stop the motor before removing the grass catcher or adjusting the height of cut position. 3.
  • Page 12 Fig.10 CAUTION: your mower is designed to cut normal residential grass of a height no more than 250mm. Do not attempt to mow through unusually tall dry or wet grass (e.g., pasture) or piles of dry leaves. Debris may build up on the mower deck or contact the motor presenting a potential fire hazard. 8.3 TO STOP THE MOWER MOTOR AND BLADE Release the brake control bar to stop the mower motor.
  • Page 13 Fig.12 1- Indicator power 2 – Battery power level LEDs 3 – Fault Indicator Fig.12 8.5 FOR THE BEST RESULTS WHEN MOWING Clear the lawn of debris. Be sure that the lawn is clear of stones, sticks, wire or other foreign obj ects, which could be accidentally be thrown out by the mower in any direction and cause serious personal injury to the operator and others as well as damage to property and surrounding objects.

  • Page 14: Section 9 Blade

    Do not spray the unit with water. Ingress of water may destroy the switch and the electric motor. Clean the unit with a cloth, hand brush, etc. Expert inspection is required, do not make any adjustment by yourself. Contact your local Cobra Dealer: a) if the lawn mower strikes an object.

  • Page 15: Section 11 Storage

    Machine leaves ragged finish Height of cut too low, increase the height of cut Cutting Blade Blunt, have the blade re-sharpen or replaced. See a Cobra dealer. Warning: Before performing any maintenance or cleaning work, always remove batteries and switch off the isolator key! Proceed only once the motor and blade are stationary.

  • Page 16: Section 13 Warranty

    Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly.

  • Page 17: Section 15 Ec-Declaration Of Conformity

    15. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
