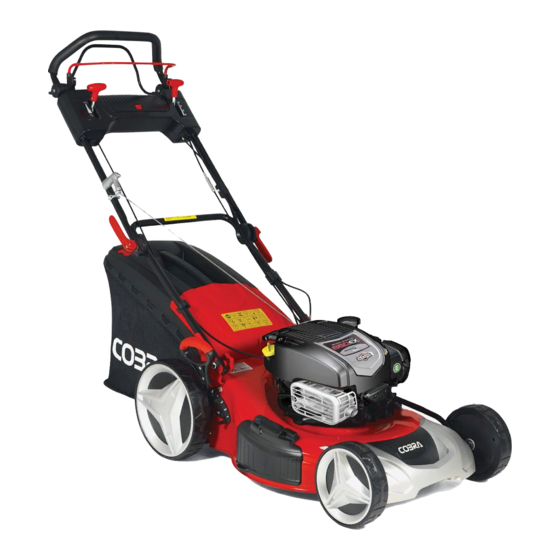

- Page 1 MODEL: MX514SPB COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SYMBOLS MARKED ON THE PRODUCT………………………………. 3 SECTION 1 GENERAL SAFETY RULES………………………………………………. 3 SECTION 2 SECTION 3 PARTS DESCRIPTION……………………………………………………... 6 TECHNICAL DATA……………………………………………………………7 SECTION 4 ASSEMBLY………………………… ……………………………………….. 7 SECTION 5 “3 IN 1”………………………………………………………………………… 9 SECTION 6 SECTION 7 OPERATION INSTRUCTIONS…………………………………………….. 11 SECTION 8 MAINTENANCE INSTRUCTIONS……………………………………..….. -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
- Page 5 16. Do not start the engine when standing in front of the discharge chute. 17. Never put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19.
-
Page 6: Parts Description
3. PARTS DESCRIPTION Fig.1A Upper handle 2. Brake control handle 3. Throttle choke lever 4. Starter handle 5. Rope Guide 6.Locking lever 7. Lower handle 8. Grass catcher 9. Height adjusting lever 10. Deck Sideward flap Spark plug 13. Fuel cap 10. -
Page 7: Technical Data
4. TECHNICAL DATA Model MX514SPB Engine type Briggs 650E Self-propelled Engine displacement 190 cm Blade width 510mm Rated speed 2800/min Fuel tank capacity 2.0L Grass catcher capacity Net Weight 35.6kg Height adjustment: 25~75mm,7 adjustment MX514SPB Guaranteed Sound pressure level 84.9dB(A)(K=3dB(A)) at the operator’s position... - Page 8 Fig.2D Fig.2E Fig.2F Fig.2G Fig.2H 5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE A).Pull the locking lever opening; B).Rotating the upper handle centered of the angle adjusting gear for adjusted a appropriate angle into the scope -20º to 20º as the Fig.3 shown; C).Push the locking lever closed to connect the lower handle and the upper handle.
-
Page 9: In 1
5.4 STARTER HANDLE Move the starter handle from the engine to the rope guide. Fig.5A Fig.5B 5.5 HEIGHT OF CUT Apply outward pressure to disengage lever from rack. Move lever forward or back to adjust height. (Fig.6 and see clause 7.9) Fig. - Page 10 - Only move at a walking pace. - Regularly clean mulching wedge, housing inner side and mowing blade. Starting Operation ONE: Retrofitting for mulching mower WARNING: only with a stopped engine and standstill cutter. 1. Raise the rear cover and remove the grass catcher. 2.
-
Page 11: Operation Instructions
-Lift rear cover and remove the mulching wedge. 2. Removing the side discharge channel for side discharge: -Lift the sideward flap and remove the side discharge channel. -The sideward flap automatically closes the discharge opening on the housing by mean of spring force. -Regularly clean the sideward flap and discharge opening. - Page 12 Do not tilt the lawn mower when starting the engine. Start the mower on a level surface, free of high grass or obstacles. Keep hands and feet away from the rotating parts. Do not start the engine when standing in front of the discharge opening. 7.3 OPERATION PROCEDURES During operation, tightly hold the brake handle with both hands.
- Page 13 cutting in thick grass it may be necessary to use one of the slowest speeds in order to get a clean well mowed cut. When mowing long grass you may have to cut the lawn in two passes, lowering the blade another 1/3 of the length for the second cut and perhaps cutting in a different pattern than was used the first time.
-
Page 14: Maintenance Instructions
Fig.13 8. MAINTENANCE INSTRUCTIONS SPARK PLUG Use only original replacement spark plug. For best results, replace the spark plug every 100 hours of use. 9. LUBRICATION INSTRUCIONS CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING. 1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil. 2. - Page 15 When you change the blade, Must use the original type marked on blade (Cobra Part 263002489) (for order the blade, please contact your local dealer) 10.4 ENGINE Refer to the separate engine manual for engine maintenance instructions.
-
Page 16: Storage Instructions (Off Season)
area. 11. STORAGE INSTRUCTIONS (OFF SEASON) The following steps should be taken to prepare the lawn mower for storage at the end of the mowing season. 1. Drain the fuel from the engine by running the engine until it stops. Start the engine and let it run until it has used up all remaining petrol and stalls. -
Page 17: Troubleshooting
12. TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle choke not in the correct position Move throttle choke to the correct position start. for the prevailing conditions. Fuel tank is empty. Fill the tank with fuel: refer to the ENGINE MANUAL. Air filter element is dirty. -
Page 18: Warranty
Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration. -
Page 19: Ec-Declaration Of Conformity
15. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity Cobra Garden Machinery We herewith declare, Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
