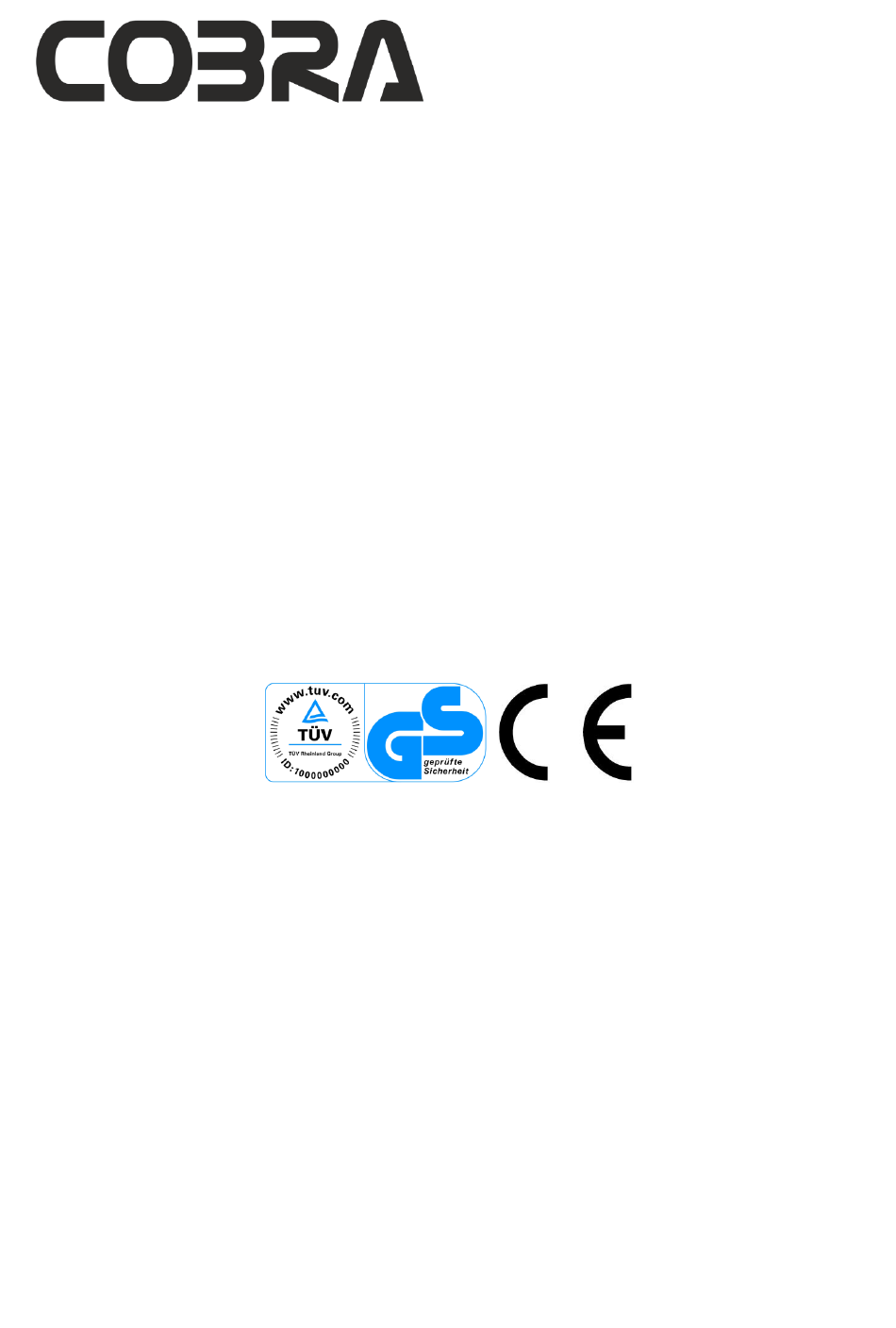

- Page 1 MODELS: RM46B RM46SPB RM46C RM46SPC COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SYMBOLS MARKED ON THE PRODUCT…………………………… 3 SECTION 1 GENERAL SAFETY RULES…………………………………………… 3 SECTION 2 PARTS DESCRIPTION………………………………..…………….…. 6 SECTION 3 TECHNICAL DATA…………………………………………………...…. 7 SECTION 4 ASSEMBLY…………………………………………………………….… 7 SECTION 5 OPERATION INSTRUCTIONS……………………………………..…. 10 SECTION 6 MAINTENANCE INSTRUCTIONS ……………………………..……. 13 SECTION 7 LUBRICATION INSTRUCTIONS …………………………………..…... -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
- Page 5 16. Do not start the engine when standing in front of the discharge chute. 17. Never put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19.
-
Page 6: Parts Description
3. PARTS DESCRIPTION Fig. C for RM46SPB Fig. D for RM46B 1. Upper handle 2. Self-drive control handle 3. Starter handle 4. Rope Guide 5. Locking lever 6. Grass catcher 7. Height adjusting lever 8. Deck 9. Spark Plug 10. Fuel cap 11. -
Page 7: Technical Data
4. TECHNICAL DATA Model RM46SPB RM46B RM46C RM46SPC Engine type Briggs 500E Briggs 500E DG450 DG450 Self-Propelled Engine Displacement 140cm³ 140cm³ 135cm³ 135cm³ Blade Width 460mm 460mm 460mm 460mm Rated Speed 2800/min 2800/min 2800/min 2800/min Fuel Tank Capacity 0.8L 0.8L 1.2L... - Page 8 Fig.1D Fig.1E for RM46B and RM46SPB Fig.1F for engine RM46C and RM46SPC ASSEMBLE THE GRASS CATCHER Drop the cloth bag through the metal bracket, open up the reinforced rim on the three sides by hand or using a screwdriver. Wrap and then clench the reinforced material around the metal support brackets on the three sides to secure the bag in position.
- Page 9 Engage the Brake control handle then move the starter handle from the engine to the rope guide. Fig.3A for the Briggs engine Fig.3B for the Cobra engine 5.4 HEIGHT OF CUT Apply outward pressure to disengage the lever from the rack. Move lever forward or back to adjust height.
-
Page 10: Operation Instructions
(inside the rubber boot) is fastened securely over the metal tip on the spark plug. For RM46B and RM46SPB: 2. Press the primer bulb 3-5 times before starting the engine. (Fig.6A Briggs and Stratton Engines) 3.1 When starting the engine and operating, turn throttle choke lever to “... - Page 11 Fig.6C Fig.6D Fig.6E Start the engine carefully according to the instructions, with your feet well away from the blade. Do not tilt the lawn mower when starting the engine. Start the mower on a level surface, free of high grass and obstacles.
- Page 12 6.6 FOR THE BEST RESULTS WHEN MOWING Clear lawn of debris: Be sure that the lawn is clear of stones, sticks, wire or other objects, which could be accidentally thrown out by the mower in any direction and cause serious injury to the operator and others as well as damage to property and surrounding objects.
-
Page 13: Maintenance Instructions
6.9 HEIGHT ADJUSTMENT INSTRUCTIONS CAUTION: Do not at any time make any adjustment to lawnmower without first stopping the engine and disconnecting the spark plug wire. CAUTION: before changing the mowing height, stop the mower and disconnect spark plug cable. Your mower is equipped with a central height adjustment lever offering 6 height positions. - Page 14 Fig.11A for Briggs engine Fig.11B for Briggs engine Fig.11C for Cobra engine Fig.11D for Cobra engine NOTE: Replace the filter if frayed, torn, damaged or unable to be cleaned. 9.2 CUTTING BLADE CAUTION: Be sure to disconnect and ground the spark plug wire before working on the cutting blade to prevent accidental engine starting.
-
Page 15: Storage Instructions (Off Season)
Possible damage resulting from blade unbalance condition is not the responsibility of the manufacturer. When you change the blade, you must use the original type marked on the blade (Cobra Part number 263001465. Please contact your local dealer to order a replacement) 9.4 ENGINE Refer to the separate engine manual for engine maintenance instructions. - Page 16 NOTE: - When storing any type of power equipment in an unventilated or material storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts. - Be careful not to bend or kink cables. - If the starter rope becomes disconnected from the rope guide on the handle, disconnect and ground the spark plug wire.
-
Page 17: Troubleshooting Guide
Engine overheats Cooling air flow is restricted. Remove any debris from slots in shroud, blower housing, and air passages For RM46B RM46SP: install RC12YC spark plug Incorrect spark plug. For RM46C RM46SPC RM46SPCE: install NGK BPR6ES spark plug Mower vibrates Cutting assembly is loose. -
Page 18: Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 19: Ec-Declaration Of Conformity
14. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
