MODEL: MX564SPB
COBRA LAWN MOWER
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX564SPB and is the answer not in the manual?

Questions and answers

Summary of Contents for Cobra MX564SPB

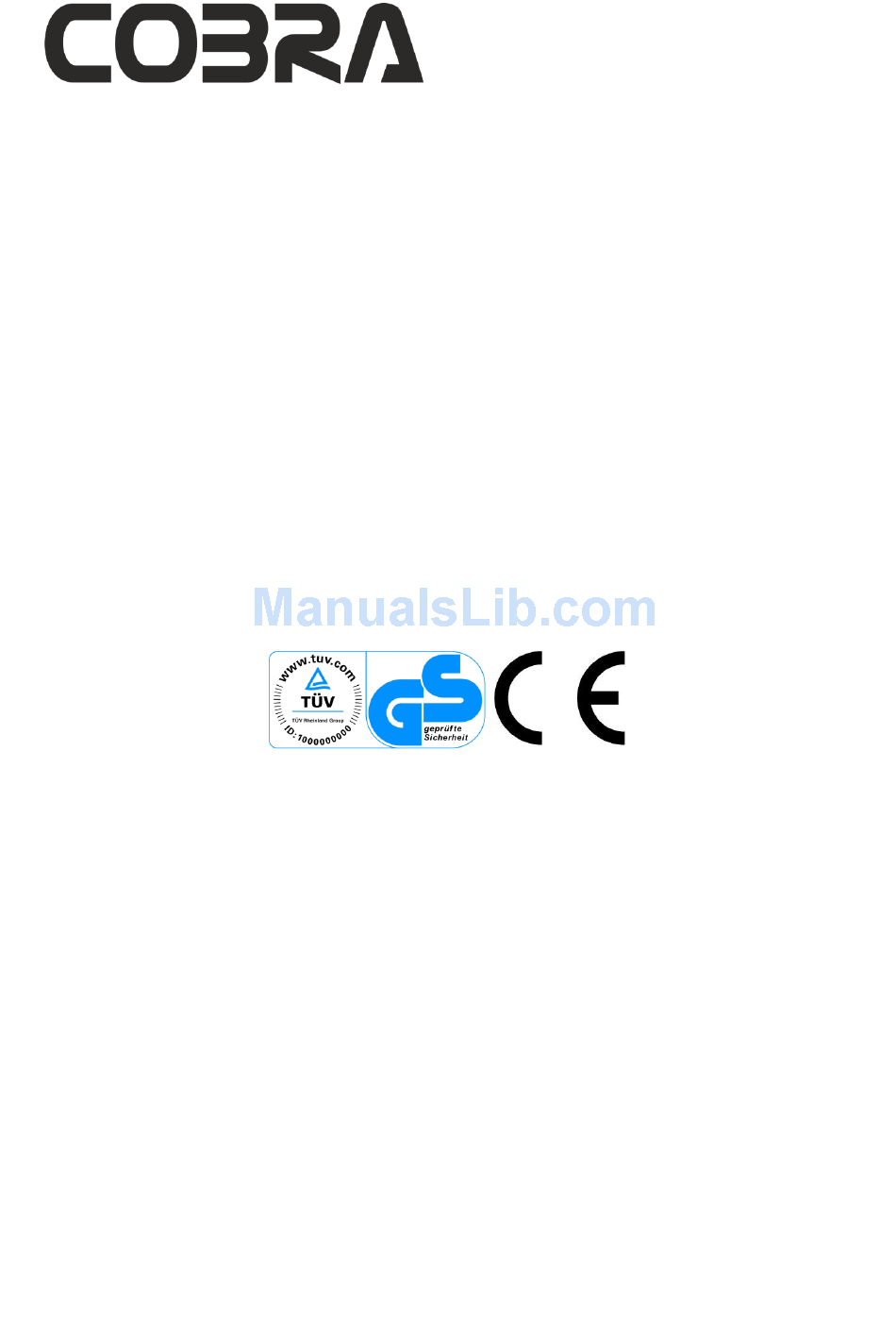

  • Page 1 MODEL: MX564SPB COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
  • Page 2: Table Of Contents

    CONTENTS SYMBOLS MARKED ON THE PRODUCT………………………………… 3 SECTION 1 GENERAL SAFETY RULES………………………………………………… 3 SECTION 2 SECTION 3 PARTS DESCRIPTION……………………………………………………..6 TECHNICAL DATA…………………………………………………………… 6 SECTION 4 ASSEMBLY………………………… ………………………………………… 7 SECTION 5 “3 IN 1”…………………………………………………………………………. 9 SECTION 6 SECTION 7 OPERATION INSTRUCTIONS……………………………………………..11 SECTION 8 MAINTENANCE INSTRUCTIONS……………………………………..……...
  • Page 3: Symbols Marked On The Product

    WARNING: For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig.
  • Page 4 Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
  • Page 5 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19. Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key, make sure engine has had time to cool. - Before unclogging chute and clearing blockages.
  • Page 6: Parts Description

    14.Fuel cap Cable clamp Height adjusting lever 17. Self-drive control handle Side discharge channel Mulching wedge Including A: Spark plug wrench 4. TECHNICAL DATA Model MX564SPB Engine type 126T Self-propelled Engine displacement 190 cm Blade width 560mm Rated speed 2800/min Fuel tank capacity 1.0L...
  • Page 7: Assembly

    MX564SPB Guaranteed Sound pressure level at 84.8dB(A) (K=3 operator’s position dB(A)) (According to EN ISO 3744, EN ISO 4871) Measured sound power level 93.2dB(A) K=2.09dB(A) Guaranteed Sound Power level 98 dB(A) (According to 2000/14/EC) Vibration 4.337m/s² (According to EN ISO 20643 K=1.5...
  • Page 8 Fig.2G Fig.2H 5.2 ADJUSTMENT FOR AN APPROPRIATE ANGLE A).Pull the locking lever opening. B).Rotating the upper handle centered of the angle adjusting gear for adjusted a appropriate angle into the scope -20º to 20º as the Fig.3 shown; C).Push the locking lever closed to connect the lower handle and the upper handle. Fig.3 5.3 MOUNTING AND DISMOUNTING THE GRASS CATCHER 1.
  • Page 9: In 1

    5.5 HEIGHT OF CUT Apply outward pressure to disengage the lever from rack. Move the lever forward or back to adjust the height. (Fig.6 and see clause 7.9) Fig.6 5.6 Tool Box This lawn mower has a tool box, you can push the button to open it, and then press the cover to lock it. You can put tools such as a spanner, screwdriver in this box.
  • Page 10 Fig.8A Fig.8B Fig.8C TWO: Resetting for side-discharge mowing Only when the engine and cutting blade are at standstill! 1. Lift the rear cover and remove the grass catcher. 2. Mount the mulching wedge. 3. Lift the sideward flap for the side discharge. (Fig.9A) 4.
  • Page 11: Operating Instructions

    3. Mount the grass catcher: -To fit: Raise the rear cover and hitch the grass catcher on rear of mower. -To remove: Grasp and lift the rear cover, remove the grass catcher. 7. OPERATING INSTRUCTIONS 7.1 BEFORE STARTING Service the engine with petrol and oil as instructed in the separate engine manual packed in your mower. Read instructions carefully.
  • Page 12 7.3 OPERATION PROCEDURES During operation, tightly hold the brake handle with both hands. Note: During operation, when the brake handle is released, the engine will stop and thus stopping the lawnmower from operating. 7.4 TO STOP ENGINE CAUTION: The blade continues to rotate for a few seconds after the engine is shut off. 1.
  • Page 13 the most effective job of mowing. Clean underside of deck: Be certain to clean the underside of the cutting deck after each use to avoid a build-up of grass, which would prevent proper mulching. Mowing leaves. The mowing of leaves can also be beneficial to your lawn. When mowing leaves make sure they are dry and are not laying too thick on the lawn.
  • Page 14: Maintenance Instructions

    Fig.14A Fig.14B 8. MAINTENANCE INSTRUCTIONS SPARK PLUG Use only original replacement spark plug. For best results, replace the spark plug every 100 hours of use. 9. LUBRICATION INSTRUCIONS CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING. 1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil. 2.
  • Page 15 Replace with an approved factory replacement blade only. Possible damage resulting from blade unbalance condition is not the responsibility of the manufacturer. When you change the blade, you must use the original type marked on blade (Cobra Part No. 263002490 please contact your local dealer) 10.4 ENGINE Refer to the separate engine manual for engine maintenance instructions.
  • Page 16: Storage Instructions (Off Season)

    circulation, which is essential to engine performance and life. Be certain to remove all grass, dirt and combustible debris from muffler area. 11. STORAGE INSTRUCTIONS (OFF SEASON) The following steps should be taken to prepare lawn mower for storage. 1. Empty the tank after the last mow of the season. a) Empty the petrol tank with a suction pump.
  • Page 17: Troubleshooting

    12. TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle choke not in the correct position Move throttle choke to the correct position start. for the prevailing conditions. Fuel tank is empty. Fill the tank with fuel: refer to the ENGINE MANUAL. Air filter element is dirty.
  • Page 18: Warranty

    Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration.
  • Page 19: Ec-Declaration Of Conformity

    15. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity Cobra Garden Machinery We herewith declare, Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
