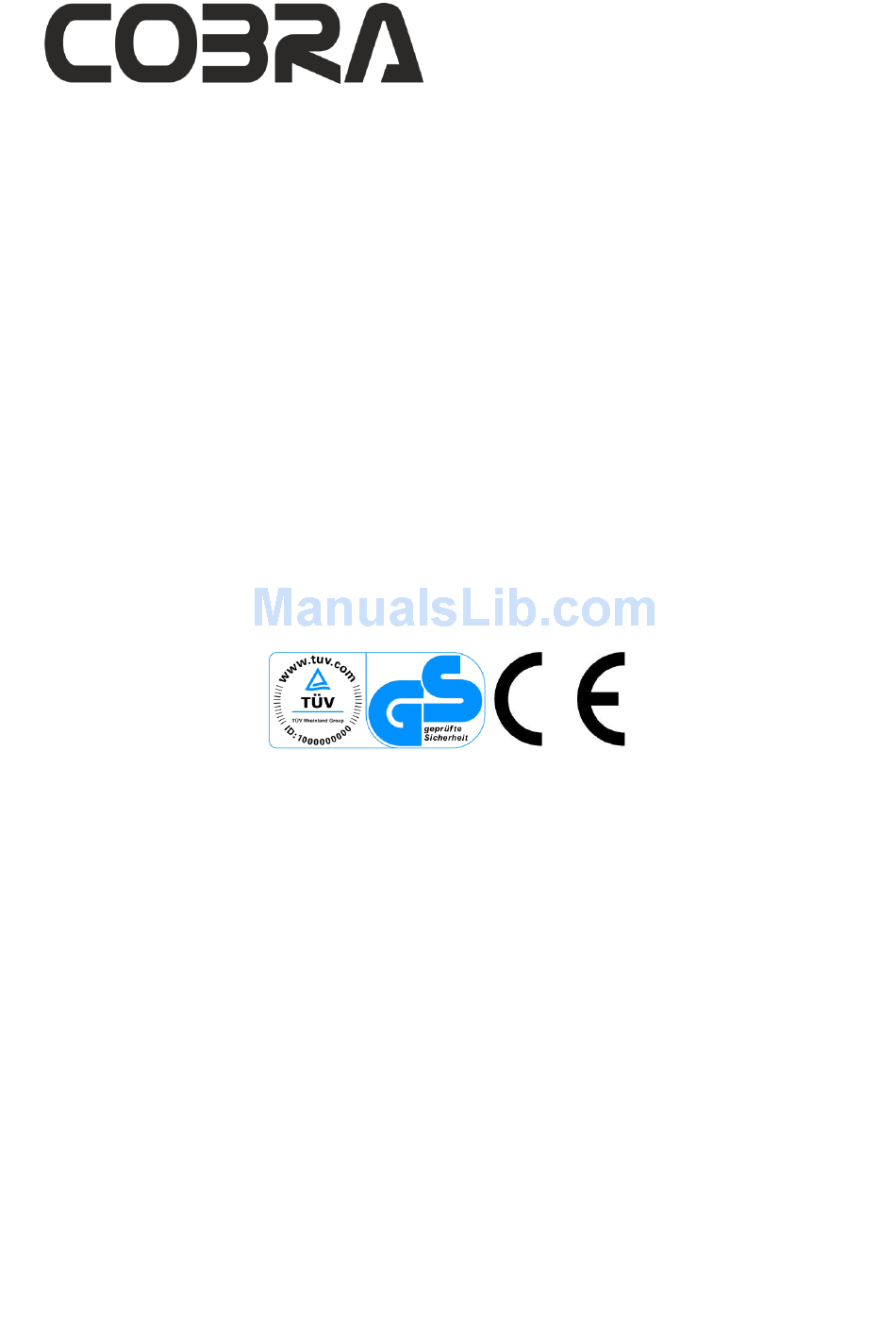

- Page 1 MODEL: MX46SPE COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENT SECTION 1 SYMBOLS MARKED ON THE PRODUCT ……………..………….………. 3 SECTION 2 GENERAL SAFETY RULES……………… ……………..………….………. SECTION 3 GENERAL IDENTIFICATION ... ……………………………………… SECTION 4 TECHNICAL DATA ......………………………………………. 7 SECTION 5 ASSEMBLY ........………………………………………. 7 SECTION 6 ADJUSTMENT OF CUTTING HEIGHT …………………………………….. SECTION 7 ADJUSTMENT FOR AN APPROPRIATE ANGLE………………………….. -
Page 3: Section 1 Symbols Marked On The Product
KNOW YOUR LAWN MOWER Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn trimmer. Following these simple instructions will also maintain your lawn trimmer in good working order. Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency. -
Page 4: Section 2 General Safety Rules
DOUBLE INSULATED Your mower is double insulated. This means that all external parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts. 2. GENERAL SAFETY RULES The purpose of the safety rules is to attract your attention to possible dangers. The safety symbols and the explanations with them, require your careful attention and understanding. - Page 5 IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. 1. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 2. Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator 3.
- Page 6 mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 29. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
-
Page 7: Section 4 Technical Data
4. TECHNICAL DATA Model: MX46SPE Rated Voltage: 230V~ Rated Frequency: 50Hz Rated Power: 1800W No Load Speed: 2900/min Cutting Width: 460mm Grass catcher: 60 L Net weight: 31.2kg Degree of protection against liquid: IP24 Height adjustment : 25-75mm, 7 adjustment Sound pressure level at the 81.3dB(A) K=3 dB(A) - Page 8 Fig.2G Fig.2H 5.2 ASSEMBLING THE GRASS CATCHER 1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 3A/Fig. 3B/ Fig. 3C) 2. To remove: grasp and lift the rear cover, remove grass catcher. Fig.3A Fig.3B Fig.3C...
-
Page 9: Section 6 Adjustment Of Cutting Height
Fig.3D Fig.3E 6. ADJUSTMENT OF CUTTING HEIGHT Apply outward pressure to disengage the lever from the rack. Move the lever forward or back to adjust the height. The height (the blade to the ground) can be adjusted from 25mm (position 1) to 75mm (position 7), 7 height positions. - Page 10 8. “3 IN 1” The lawn mower has 3 in 1 features: Rear grass collection. Grass mulching. Side-discharge. What is mulching? When mulching, the grass is cut in one working stage, then finely chopped and returned to the grass strip as natural fertilizer.
-
Page 11: Section 9 Safety Precautions
Fig 6C 1. Lift the rear cover and remove the grass catch bag. 2. Mount the Mulching wedge. (Fig 6A/Fig.6B) 3. Lift sideward flap for side discharge (Fig 6C) 4. Mount the discharge guide for side discharge on the support pin of the sideward flap. (Fig 6C/Fig.6D) 5. -
Page 12: Section 10 Starting
Fig.7A Fig.7B Fig.7C 10. STARTING 10.1 STARTING Before connecting up the lawn mower to the electric power supply, make sure that the mains supply voltage is 230V~50Hz. Before starting the lawn mower, fix the extension cord with the machine as the Fig.8A /Fig.8B shown. - Page 13 - 13 -...
-
Page 14: Section 11 Blade
CAUTION! The equipment is suitable for use only in a power supply with permissible modulus of system impedance is 0.237Ω or less. 10.2 CONNECTION FOR AUTO DRIVE – SELF PROPELLED Grip the Self-drive control handle, the lawnmower will move forward automatically with about 3.6km/h, release the self-drive handle, the lawnmower will stop moving. -
Page 15: Section 12 Extension Cords
(3) must be torque to 25NM. WARNING: For service, replace the blade with Cobra blade: Cobra Part no. 263001504 Fig.10 Warning: Disconnect the electric cord from the power supply. WARNING: Protect hands by using heavy gloves or a rag to grasp the cutting blades when replace the blade. - Page 16 CAUTION! Faults which can not be rectified with the aid of this table may be rectified by a Cobra Service Centre only.
-
Page 17: Section 15 Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 18: Section 17 Ec-Declaration Of Conformity
17. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
