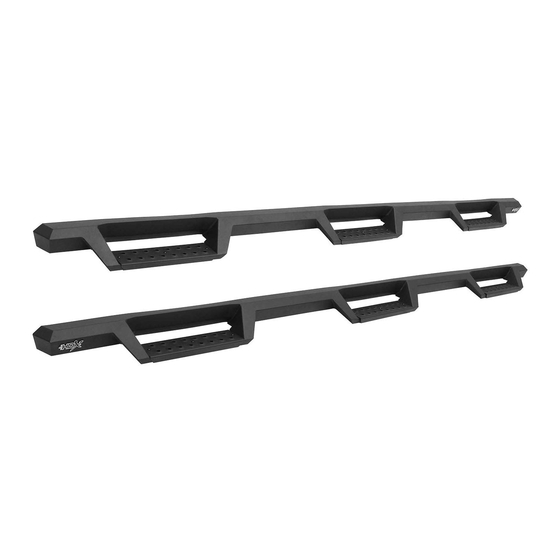

Westin HDX DROP STEP WTW Installation Instructions

ITEM QUANTITY
1 2
2 1
3 4
4 12
5 28
6 28
7 16
8 1
9 2
10 2
11 4
12 4
13 2
14, 15 2
16 2
17 2
18 2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W17-0072
P.N.: 75-5653418-RevA
INSTALLATION INSTRUCTIONS

APPLICATION:

2016-2017 Toyota Tacoma - Double Cab 6 Ft Bed

PART NUMBER:

56-534185, 56-5341852

CONTENT

DESCRIPTION
STEP BAR ASSEMBLY
FRONT DRIVER SIDE MOUNTING BRACKET
MOUNTING BRACKET B
LONG M8 HEX HEAD CAP SCREW (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
SHORT M8 HEX HEAD CAP SCREW (YELLOW ZINC)
FRONT PASSENGER SIDE MOUNTING BRACKET
M12 LONG HEX HEAD CAP SCREW (YELLOW ZINC)
M12 SHORT HEX HEAD CAP SCREW (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 HEX NUT (YELLOW ZINC)
ISOLATOR BRACKET, DRIVER (14) AND PASSENGER (15)
TOP ISOLATOR MOUNT BRACKET
ISOLATOR KIT
M12 NUT PLATE (YELLOW ZINC)
ITEM 2 ITEM 3

PROCEDURE

HDX DROP STEP WTW
ITEM 8 ITEM 14
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
1
TOOLS NEEDED
13MM SOCKET
13MM WRENCH
RATCHET
TORQUE WRENCH
RATCHET EXT.
18MM SOCKET
19MM SOCKET
18MM WRENCH
19MM WRENCH
ITEM 16 ITEM 17
www.westinautomotive.com
DATE: 11/20/17
ITEM 18
