Westin 33-2060 Instructions

AUTOMOTIVE PRODUCTS, INC.

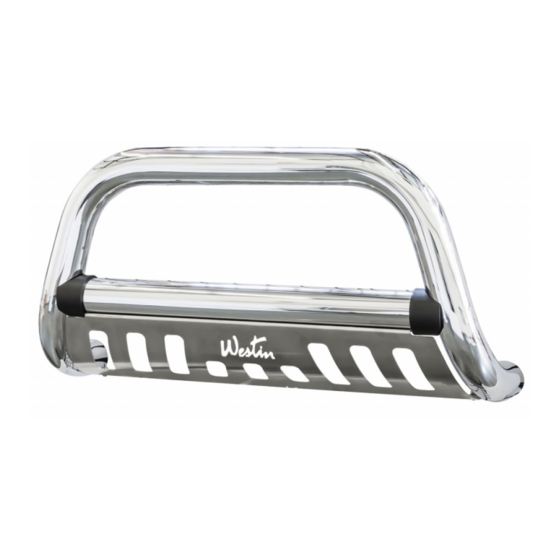

BULL BAR ASSEMBLY

ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
33-2060
33-2065

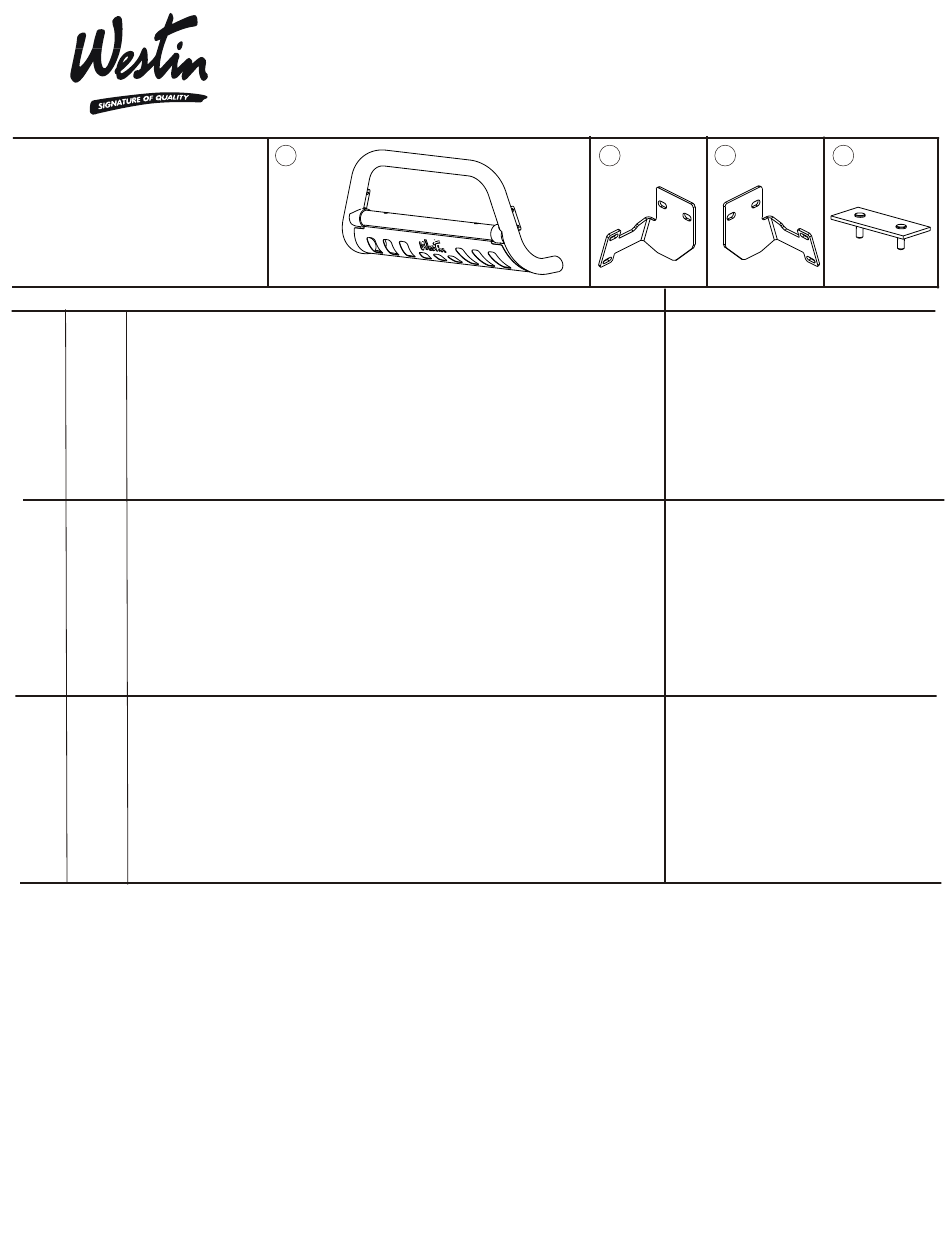

ITEM QTY
1 1 BULL BAR ASSEMBLY
2,3 2 BRACKET, PASSENGER (2) AND DRIVER (3)
4 2 BOLT PLATE
5 2 PLASTIC PLUG
6 4 RUBBER BUMPER
7 4 3/8-16X 1.25" HEX HEAD BOLT, STAINLESS STEEL
8 8 3/8" FLAT WASHER, STAINLESS STEEL
9 4 3/8" LOCK WASHER, STAINLESS STEEL
10 4 3/8-16 HEX NUT, STAINLESS STEEL
11 4 3/8" FLAT WASHER, YELLOW ZINC
12 4 3/8" LOCK WASHER, YELLOW ZINC
13 4 3/8-16 HEX NUT, YELLOW ZINC
1 1 ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3 2 SOPORTE, ACOMPAÑANTE
4 2 PLACAS DE PERNOS
5 2 TAPONES DE PLÁSTICO
6 4 PARACHOQUES DE HULE
7 4 PERNOS CON CABEZA HEXAGONAL DE 3/8-16
8 8 ARANDELA PLANA SAE DE 3/8", ACERO INOXIDABLE
9 4 ARANDELAS DE PRESIÓN DE 3/8
10 4 TUERCAS HEXAGONALES DE 3/8-16
11 4 ARANDELA PLANA SAE DE 3/8", ZINC AMARILLO
12 4 ARANDELAS DE PRESIÓN DE 3/8"
13 4 TUERCAS HEXAGONALES DE 3/8-16
1 1 LA BULL BAR
2,3 2 SUPPORT, PASSAGER (2) ET CONDUCTEUR (3)
4 2 PLAQUES DE BOULON
5 2 BOUCHON DE PLASTIQUE
6 4 PARE-CHOCS EN CAOUTCHOUC
7 4 BOULON A TETE HEXAGONALE 3/8-16
8 8 RONDELLE PLATE SAE 3/8 PO, ACIER INOXYDABLE
9 4 RONDELLE A FREIN 3/8 PO
10 4 ÉCROU HEXAGONAL 3/8-16
11 4 RONDELLE PLATE SAE 3/8 PO, ZINC JAUNE
12 4 RONDELLE A FREIN 3/8 PO
13 4 ÉCROU HEXAGONAL 3/8-16
STEP 1. Remove the contents from box and check for damage. Verify all parts are present. Read instructions completely
before beginning. NOTE: Westin advises the installer to use a thread lubricant on all of the stainless steel fasteners.
STEP 2. NOTE: It will be necessary to remove the front license plate and bracket. Remove license plate from bracket. Using
a 3/16" drill bit, drill out the two pop rivets that hold the bracket to the bumper. If local/state laws requires a license
plate, license plate relocation kit 32-0055 is available.

STEP 3. Determine passenger and driver brackets.

STEP 4. Locate openings along front of bumper. Insert hand through one of the openings to find metal cross brace channel
behind plastic bumper cover. The cross brace channel has an opening across the back of it. SEE FIGURES 2 AND 3.
STEP 5. Insert bolt plate into opening along the back of the cross brace channel with the studs protruding out of the channel.
Insert brackets through opening in front bumper and attach to bolt plate using 3/8" yellow zinc fasteners. Leave loose.
SEE FIGURE 2.
STEP 6. Attach Bull Bar to mount brackets using 3/8" stainless steel fasteners. SEE FIGURE 3. Level and adjust Bull Bar as
desired and tighten all fasteners. Recommended torque values are 26 Ft. Lbs. for 3/8" yellow zinc fasteners and 17 Ft.
Lbs. for 3/8" stainless steel fasteners.
Light Installation: Insert Threaded Stud On Base Of The Light Through Hole In Cross Tube. Using a ratchet, extension and socket
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION:
APLICACIÓN:
APPLICATION:
1
CONTENTS - CONTENIDO - CONTENU
(2) Y EL CONDUCTOR
", ACERO INOXIDABLE
, ACERO INOXIDABLE
, ZINC AMARILLO
, ZINC AMARILLO
, ACIER INOXYDABLE
, ACIER INOXYDABLE
, ZINC JAUNE
, ZINC JAUNE
2008 FORD ESCAPE AND 2008 FORD ESCAPE HYBRID
2008 MERCURY MARINER AND 2008 MERCURY MARINER HYBRID
2008 FORD ESCAPE Y FORD ESCAPE HYBRID MODELO 2008
2008 MERCURY MARINER Y MERCURY MARINER HYBRID MODELO 2008
2008 FORD ESCAPE ET FORD ESCAPE HYBRID MODELE 2008
2008 MERCURY MARINER ET MERCURY MARINER HYBRID MODELE 2008
(3)
X 1,25" , ACERO INOXIDABLE
X 1,25 PO, ACIER INOXYDABLE
2 3
TOOLS - HERRAMIENTA - OUTILS
9/16" SOCKET
9/16" WRENCH
RATCHET
TORQUE WRENCH
DADO DE 9/16"
LLAVE DE TUERCAS DE 9/16"
MANERAL
LLAVE DE TORQUE
DOUILLE 9/16 PO
CLE 9/16 PO
CLIQUET
CLE DE COUPLE
WO: 269894
75-0830 REVISION A 4/24/08
