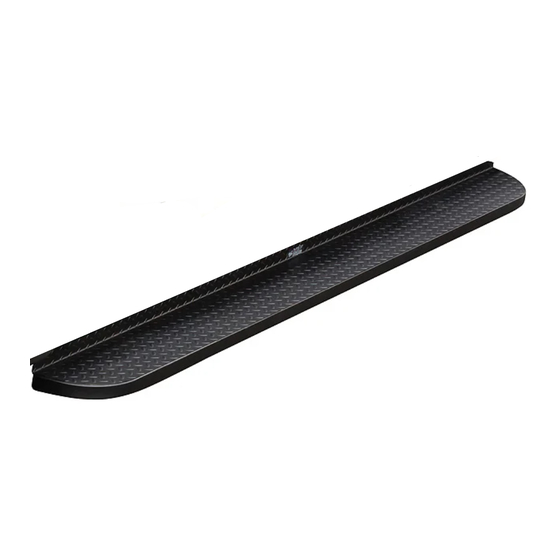

Westin HDX RUNNING BOARDS Installation Instructions

AUTOMOTIVE PRODUCTS, INC.
1

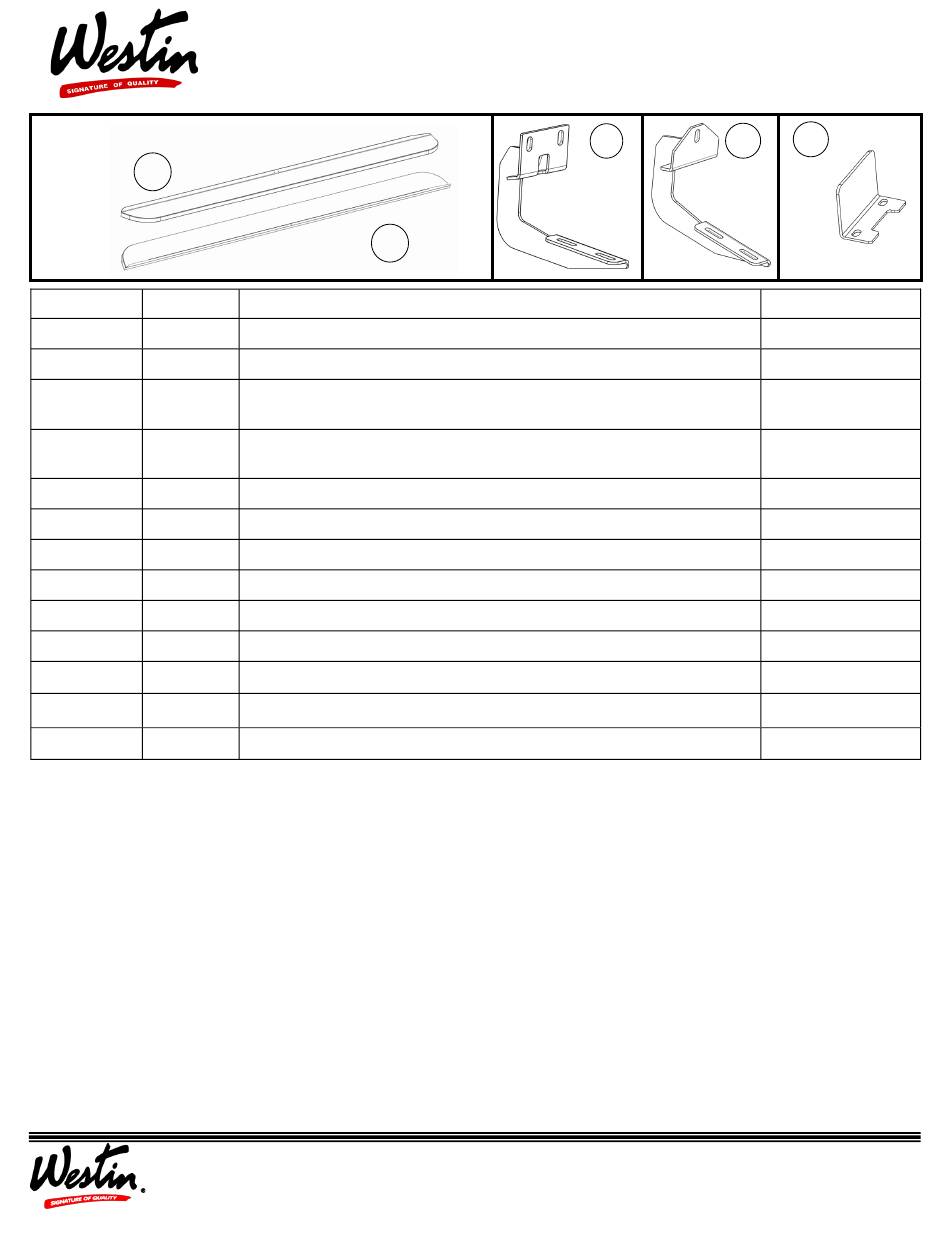

ITEM QUANTITY
1 1
2 1
3 6
4 2
5 2
6 36
7 36
8 36
9 24
10 12
11 12
12 4
13 4
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING .
1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instructions
before attempting installation.
2. Identify driver and passenger side running boards and install M8 u-nut clips (Item 9) to the underside of the boards. Figure 1.
3. Starting on the drivers side rocker panel, locate a piece of black tape. Remove the tape to reveal a rectangle hole. Take (2) M8 nut clips
(item 9) and place them over the two round holes located vertically into the rocker panel. Figure 3.
4. Take the drivers side front mounting bracket (item 3), and attach it to the previously installed nut clips using (2) M8 hex head bolts (item
6), (2) M8 lock washers (item 8), and (2) M8 large flat washers (item 7). Do not fully tighten at this time, the cradles will face the rear of
the vehicle. Figure 4.
5. Attach the mounting bracket to the bottom holes in the rocker panel using (2) M8 hex head bolts (item 6), (2) M8 large flat washers
(item 7), (2) M8 flat washers (item 10), (2) M8 lock washers (item 8), and (2) M8 hex nuts (item 11). Do not fully tighten at this time.
Figures 4 & 6.
6. Repeat steps 3-5 for the center and rear mounting brackets.
7. For 09-14 Super Crew p/n 57-53525, the center brackets will mount only using (1) M8 nut clip (item 9). Figure 5.
8. Take the drivers side running board and place it onto the mounting bracket cradles; align the running board with the mounting holes in
the brackets and attach using (6) M8 hex head bolts (item 6), (6) M8 lock washers (item 8), and (6) M8 large flat washers (item 7)
Figure 2. Do not fully tighten at this time.
9. Align and adjust the running board as needed then fully tighten all hardware at this time. Torque all M8 hardware to 20 ft lbs.
10. Repeat steps 3-8 for the passenger side.
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-0115-RevA ECO #: W14-0030

INSTALLATION INSTRUCTIONS

APPLICATION: FORD F150 2004-14 SUPER CAB/SUPER CREW
PART # 57-53315, 57-53525, 57-52365
2
RUNNING BOARD PASSENGER
RUNNING BOARD DRIVER
MOUNTING BRACKETS - 3 DRVR./3 PASS.
P# 57-53525 WILL HAVE QTY. OF 4 ONLY.- 2 DRVR/2 PASS.
CENTER BRACKET 1 DRVR.-1 PASS.
THESE BRACKETS WILL BE IN P# 57-53525 KIT ONLY. FOR 09-14 F150 SUPER CREW.
M8 24MM Flat Washer
M8 16MM FLAT WASHER
M9.5 External Tooth Lock Washer
M9.5 Hex Head Self Tap Screw
HDX RUNNING BOARDS
3
DRIVER
DESCRIPTION
BOOT SCRAPER
M8 HEX HEAD BOLT
M8 LOCK WASHER
M8 U-NUT
M8 HEX NUT
Thank You for choosing Westin products
For Additional installation assistance please call
1
5
4
DRIVER
57-53525 ONLY
TOOLS NEEDED
13MM SOCKET
13MM WRENCH
RATCHET
RATCHET EXTENSION
TORQUE WRENCH
5/16" DRILL BIT
TRANSFER PUNCH
SILICONE
Customer service (800) 793-7846
www.westinautomotive.com
DATE: 04/15/2014
