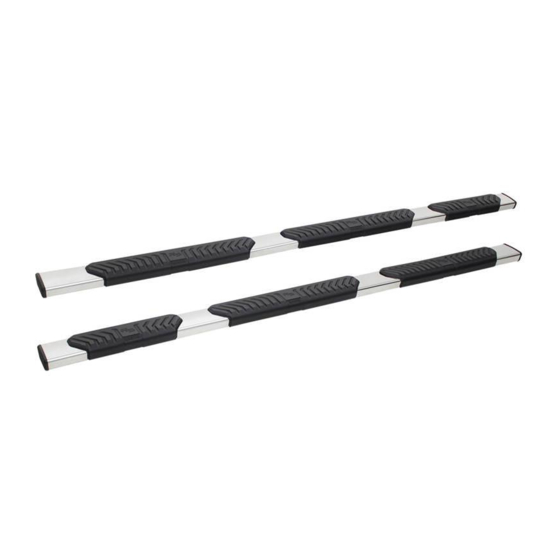

Westin R5 WHEEL TO WHEEL NERF STEP BARS Installation Instructions Manual

ITEM QUANTITY
1 2
2 2
3 2
4 2
5 2
6 2
7 2
8 3
9 1
10 2
11 2
12 2
13 6
14 4
15 8
16 6
17 2
18 4
19 4
20 2
21 24
22 24
23 24
24 6
25 12
26 12
27 12
28 16
29 32
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-2853473-RevA ECO #: W18-0126
INSTALLATION INSTRUCTIONS
APPLICATION:
Ram 1500 Quad Cab 2019 6.4 ft. Bed (Excl. 2019 Ram 1500
PART NUMBER:
28-534730, 28-534735
CONTENT
STEP BAR ASSEMBLY FRONT SECTION (1 DRIVER, 1 PASSENGER)
STEP BAR ASSEMBLY REAR SECTION (1 DRIVER, 1 PASSENGER)
LINK BRACKET (1 DRIVER, 1 PASSENGER)
TALL REINFORCEMENT LINK
SHORT REINFORCEMENT LINK
MOUNTING BRACKET A
MOUNTING BRACKET B
TOP ISOLATOR BRACKET (1 DRIVER, 1 PASSENGER)
TOP ISOLATOR BRACE (1 DRIVER, 1 PASSENGER)
BOTTOM ISOLATOR BRACKET (1 DRIVER, 1 PASSENGER)
MOUNTING BRACKET BASE
PLASTIC BRACKET COVER
M10 FLANGED HEX HEAD BOLT (YELLOW ZINC)
M10 FLANGED HEX HEAD BOLT (BLACK ZINC)
M10 FLAT WASHER
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M8 HEX NUT (YELLOW ZINC)
M8 SQUARE NECK BOLT (BLACK ZINC)
M8 SPLIT LOCK WASHER (BLACK ZINC)
M8 FLAT WASHER (BLACK ZINC)
M8 HEX NUT (BLACK ZINC)
M6 HEX HEAD CAP SCREW (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
R5 WHEEL TO WHEEL NERF STEP BARS
Classic)
DESCRIPTION
STEP PAD
LINK PLATE
ISOLATOR KIT
PLATE ADAPTER
M10 HEX NUT
for additional installation assistance please call
1
TOOLS NEEDED
16MM SOCKET
16MM WRENCH
13MM SOCKET
13MM WRENCH
10MM SOCKET
10MM WRENCH
15MM SOCKET
1/2" EXTENSION
TORQUE WRENCH
BREAKER BAR
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
RATCHET
IMPACT GUN
DATE: 10/16/18
