Summary of Contents for Cobra GTRM40

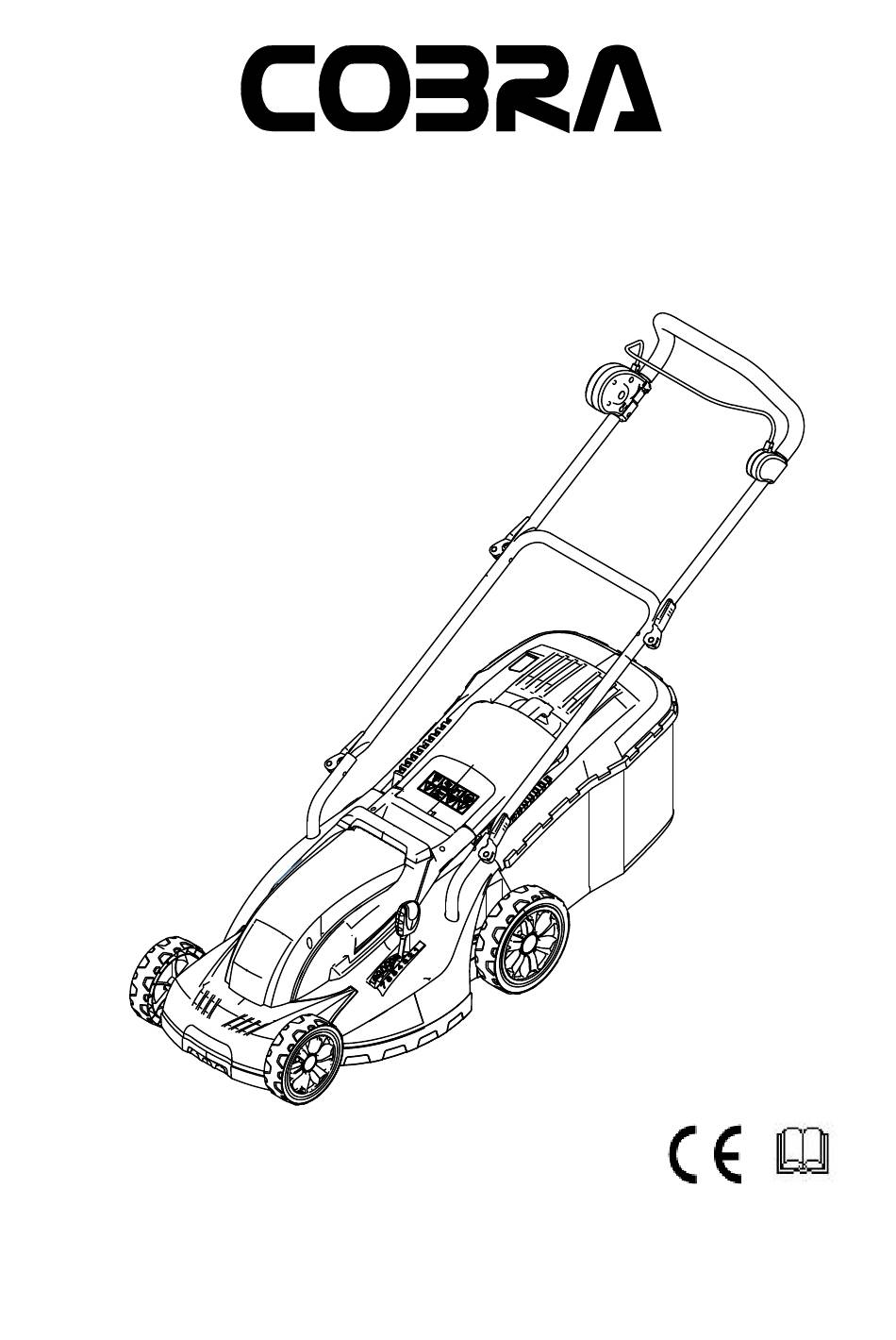

- Page 1 GTRM40 Electric Lawn Mower CAUTION: Before using our lawn mower, please read this manual carefully to understand the proper use of your unit.Keep this manual handy.
-
Page 2: Table Of Contents
GTRM40 Original Instruction Manual INDEX Symbo ls General Safety Instruction s Desc ription of produ ct parts Asse mbly & Operati on Techn ical Data Troub leshoo ting Maintenance Guarantee CE-Desc ription WWW.COBRAGARDEN.CO.UK... -
Page 3: Symbols
GTRM40 Original Instruction Manual SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explanations which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. - Page 4 GTRM40 Original Instruction Manual children must not come near the area where the product is. Beware of sharp tines Remove plug from mains before maintenance or if cord is damaged. Cutting device continues to rotate after the product is switched off. Wait until all components have completely stopped before touching the lawn mower.
-
Page 5: General Safety Instructions
GTRM40 Original Instruction Manual Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Intended use This electric lawnmower is intended for bagging, mulching and discharging lawns in domestic and hobby gardens. - Page 6 GTRM40 Original Instruction Manual Never pick up the machine when the motor is running. Electrical safety The machine plugs must match the outlet . Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) the machine. Unmodified plugs andmatching outlets will reduce the risk of electric shock.
- Page 7 If in doubt contact a qualified electrician or the nearest Cobra Service Centre. WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intend ed for outdoor use.
- Page 8 GTRM40 Original Instruction Manual Use and care Do not force the machine. Use the correct the machine for your application. The correct the machine will do the job better and safer at the rate for which it was designed. Do not use the machine if the switch does not turn it on and off. If the machine cannot be controlled correctly with the switch then it must be repaired.
- Page 9 GTRM40 Original Instruction Manual Before working with the appliance Persons using the appliance must not be under the influence of intoxicants, alcohol, medication, etc. Before you begin work, make that you are familiar with all attachments and operating controls as well as their functions.
- Page 10 Check the appliance for damage, and have any damage repaired at a Cobra Service Centre. In the case of lawnmowers with rotating blades, never stand in front of the grass ejection holes.
- Page 11 GTRM40 Original Instruction Manual check before using it. In particular, check that protective equipment, electrical controls, current-carrying cables and threaded connections are not damaged and are secure. Replace damaged parts before operating the unit. Operating times Comply with the national/municipal regulations concerning the times when the mower may be used (if required, contact your local authority).
-
Page 12: Description Of Product Parts
GTRM40 Original Instruction Manual Description of product parts In the box FIG 1 Instructions for use • Mower and upper handle with switch box and cord • Middle handle • Quick release lock x 4 • Grass bag • Cord clip x2 •... - Page 13 GTRM40 Original Instruction Manual FIG 2 Switch box Swtich bar Upper handle Middle handle Quick release lock Full grass indicator Grass bag Lower handle Height adjusting handle WWW.COBRAGARDEN.CO.UK...
-
Page 14: Asse Mbly & Operati On
GTRM40 Original Instruction Manual ASSEMBLY When assembling this machine, please follow the instructions for assembly printed. Towards the front of the manual (fig 3) FIG 3 1) Fit the upper handle, middle handle and lower handle together with the quick release lock system. - Page 15 GTRM40 Original Instruction Manual FIG 6 Note: The packaging material is made of recycle materials. Dispose of packaging materials in accordance with regulations. Switching on the unit Do not switch on the unit until it has been completely assembled. Before switching on the unit, always check the connection cable for signs of damage;...
- Page 16 GTRM40 Original Instruction Manual Connect Blue to N 13AMP fuse (Neutral) approved 1362 Brown L (Live) Outer sleeve firmly Cable grip clamped WARNING! Never connect live or neutral wires to the earth terminal of the plug. WWW.COBRAGARDEN.CO.UK...
- Page 17 GTRM40 Original Instruction Manual SWITCHING ON AND OFF (fig 7) FIG 7 Do not start the motor in tall grass. Switch on: press the button. Hold down the on button (1) and pull the switch bar (2) towards the handle and hold in position >...
- Page 18 GTRM40 Original Instruction Manual SETTING CUTTING HEIGHT (fig 5) FIG 5 If you want to change the cutting height, please push the adjusting Lever first in order to make the it out of the tooth and then push the lever to the required position (1 to 7) Warning: Never operate the adjusting handle roughly.
- Page 19 GTRM40 Original Instruction Manual Grass bag full indicator & storage - There are two functions in this machine. 1) If the collection bag is empty or it is not full with grass, the grass full indicator will open. fig 8 FIG 8 If the collection bag is full with grass the grass full indicator will close.
-
Page 20: Technical Data
GTRM40 Original Instruction Manual - This lawn mower can be folded in order to save space. Fig 11 FIG 11 1) Loosen the quick release lock system on handles 2) Fold the handles as fig 11 3) Store it. Technical data General >... -
Page 21: Troubleshooting
Correct the cutting height. 2) Motor power drops: Correct the cutting height Clean discharge channel/housing Replace the mower cutter blade at a Cobra Service Centre 3) Grass catcher is not filled sufficiently Correct the cutting height Allow the lawn to dry... -
Page 22: Maintenance
GTRM40 Original Instruction Manual MAINTENANCE AND CARE WARNING Before performing any maintenance or cleaning work, always pull out the mains plug! 1) Do not spray the unit with water. Ingress of water may destroy the Switch/plug combination unit and the electric motor. -
Page 23: Guarantee
GTRM40 Original Instruction Manual GUARANTEE AND SERVICE After purchase date, a full 1 year guarantee applies to material and production defects. If the product shows defects as a result of material and production defects during the period of guarantee, we guarantee free repair on condition that: the product has been used properly and for the purpose for which it has been intended. -
Page 24: Ce-Description
GTRM40 Original Instruction Manual CE-Description We, the importer Henton & Chattell Ltd NG2 3HW Declare the product: GTRM40 (SLM40KZD) Product Description: 230-240V AC, 50Hz, 1600w Class II, IPX4, 3500 min cutting width 400mm Complies with the following directives: 2006/42/EC (MD)
