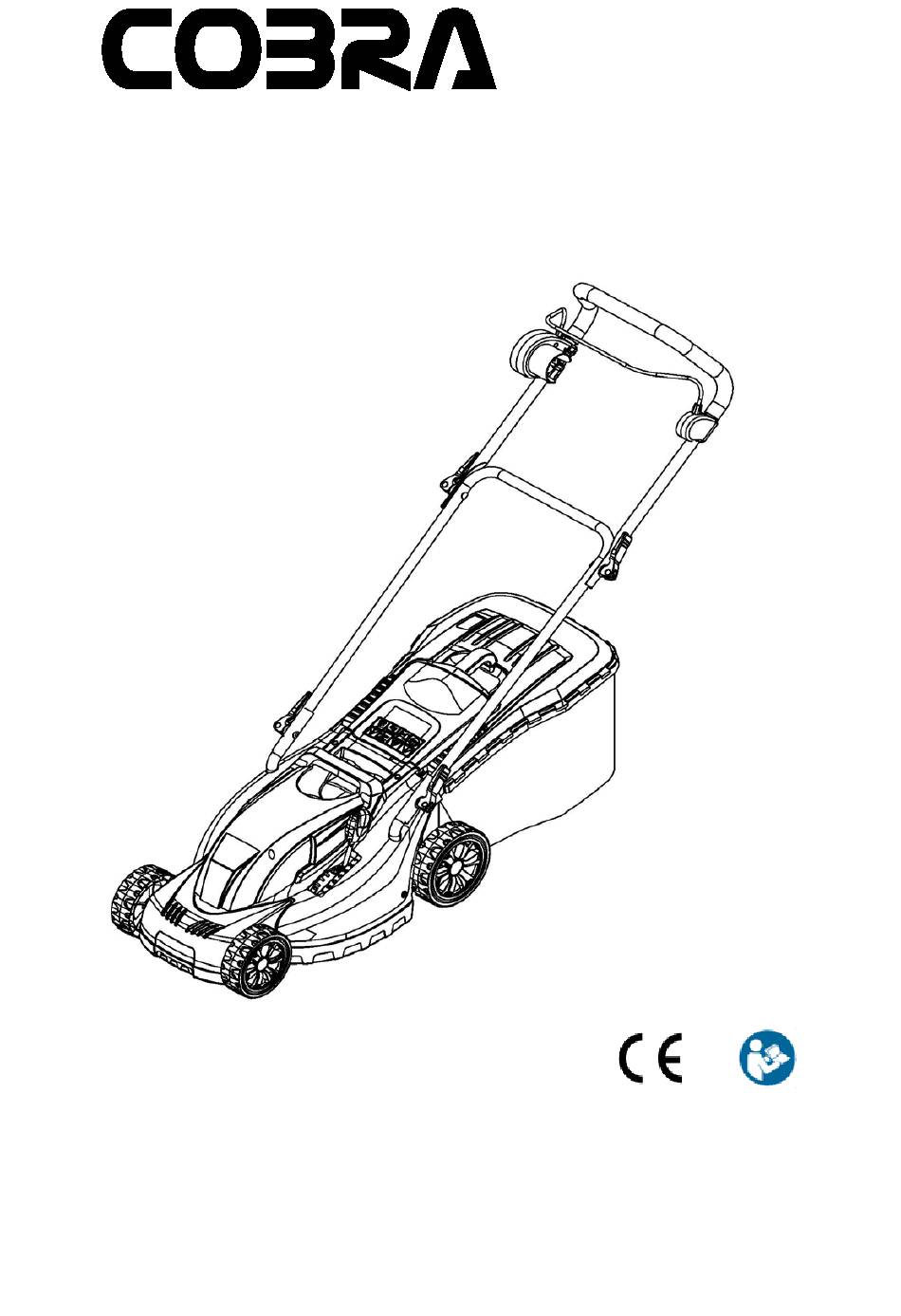

- Page 1 GTRM34 Electric Lawn Mower CAUTION: Before using our lawn mower, please read this manual carefully to understand the proper use of your unit. Keep this manual handy.
- Page 2 INDEX Symbols General Safety Instructions Description of product parts Assembly & Operation Technical Date Troubleshooting Maintenance Guarantee CE-Description...
- Page 3 SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explanations which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. Before any use, refer to the corresponding paragraph in the present manual.
- Page 4 Beware of sharp tines Remove plug from mains before maintenance or if cord is damaged. Keep hands and feet away from the cutters. Double insulation. Keep the connection cable away from the cutters. Keep the mains power cord away form cutting area. Recycle unwanted materials instead of disposing of them as waste.
-
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING！ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "the machine" in the warnings refers to your mains-operated (corded) lawnmower or battery-operated (cordless) lawnmower. -
Page 6: Personal Safety
• If in doubt contact a qualified electrician or the nearest Cobra Service Centre. • WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use. -
Page 7: Special Safety Instructions
Use and care • Do not force the machine. Use the correct the machine for your application. The correct the machine will do the job better and safer at the rate for which it was designed. • Do not use the machine if the switch does not turn it on and off. If the machine cannot be controlled correctly with the switch then it must be repaired. -
Page 8: Operating Safety
Before working with the appliance • Persons using the appliance must not be under the influence of intoxicants, alcohol, medication, etc. • Before you begin work, make that you are familiar with all attachments and operating controls as well as their functions. •... - Page 9 Check the appliance for damage, and have any damage repaired at a Cobra Service Centre. • In the case of lawnmowers with rotating blades, never stand in front of the grass ejection holes.
-
Page 10: Operating Times
check before using it. In particular, check that protective equipment, electrical controls, current-carrying cables and threaded connections are not damaged and are secure. • Replace damaged parts before operating the unit. Operating times Comply with the national/municipal regulations concerning the times when the mower may be used (if required, contact your local authority). - Page 11 Description of product parts in the box FIG 1 Mower and upper handle with switch box and cord • Lower handle x 2 • Middle handle • Upper handle • Quick release lock x 4 • Grass bag • Cord clip x2 •...
- Page 12 1. Switch box 2. Switch bar 3. Upper handle 4. Middle handle 5. Quick release lock 6. Full grass indicator 7. Grass bag 8. Lower handle 9. Height adjusting handle 10. Fix screw for lower hand...
-
Page 13: Intended Use
INTENDED USE This lawn mower has been designed for cutting grass. Any other use is not permitted. The lawn mower is suitable for private use in the garden only, lawn mowers for private use are those which are used for cutting grass and lawns in the garden, however not for cutting grass in public parks, playing fields or on farms or in forests. -
Page 14: Switching On The Unit
5) FIG 7 Note: The packaging material is made of recycle materials. Dispose of packaging materials in accordance with regulations. Switching on the unit Do not switch on the unit until it has been completely assembled. Before switching on the unit, always check the connection cable for signs of damage;... - Page 15 2) Secure with the cable grip. The loop of the mains cable must be adequately long so that the cable grip can slide from one side to the other. SWITCHING ON AND OFF (fig 8) FIG 8 Do not start the motor in tall grass. Switch on: press the button on the combined switch/plug.
- Page 16 SETTING CUTTING HEIGHT (fig 6) FIG 6 If you want to change the cutting height, please push the adjusting Lever first in order to make the it out of the tooth and then push the lever at the required position (1 to 7) Warning: Never operate the adjusting handle roughly.
- Page 17 Grass bag full indicator & storage - There are two functions in this machine. 1) If the collection bag is empty or it is not full with grass, the grass full indicator will open. fig FIG 9 if the collection bag is full with grass the grass full indicator will close. fig 10 FIG 10...
- Page 18 - This lawn mower can be folded in order to save space. Fig 12 FIG 12 1) Loosen the quick release lock system on handles 2) Fold the handles as fig 12. 3) Store it. Technical Data General Rated voltage: 230-240 V~, 50 Hz >...
-
Page 19: Troubleshooting
2) Motor power drops: Correct the cutting height Clean discharge channel/housing Replace the mower cutter blade at a Cobra Service Centre 3) Grass catcher is not filled sufficiently Correct the cutting height Allow the lawn to dry ... -
Page 20: Maintenance And Care
MAINTENANCE AND CARE WARNING！ Before performing any maintenance or cleaning work, always pull out the mains plug! 1) Do not spray the unit with water. Ingress of water may destroy the Switch/plug combination unit and the electric motor. 2) Clean the unit with a cloth, hand brush, etc. 3) Always wear gardening gloves when handling or working near the sharp blades. - Page 21 Declare the product: GTRM34 (SLM34KZB) Product Description: 230-240V AC, 50Hz, 1200w Class II, IPX4, 3500 / cutting width 340mm Complies with the following directives: 2006/42/EC (MD) 2006/95/EC (LVD) 2004/108/EC (EMC) 2011/65/EU (RoHS) The conformity assessment procedure followed was in accordance with:...
