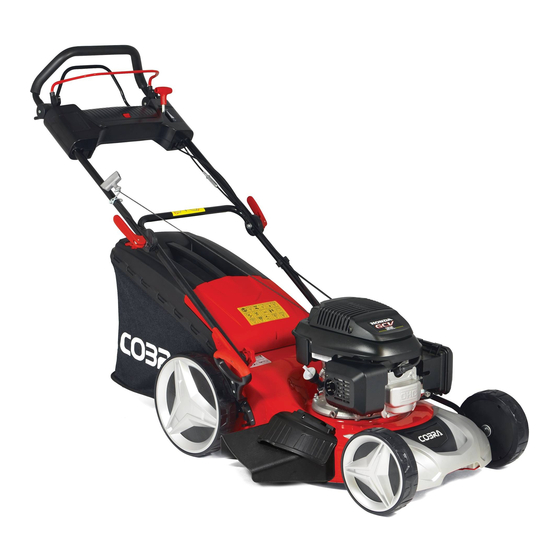

Cobra MX46SPH Owner's Manual
  1. Manuals
  2. Brands
  3. Cobra Manuals
  4. Lawn Mower
  5. MX46SPH
  6. Owner's manual

Cobra MX46SPH Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MODELS: MX46SPH
COBRA LAWN MOWER
OWNER'S MANUAL
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX46SPH and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra MX46SPH

Summary of Contents for Cobra MX46SPH

  • Page 1 MODELS: MX46SPH COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...

  • Page 2: Table Of Contents

    CONTENTS SECTION 1 SYMBOLS MARKED ON THE PRODUCT……………………………3 SECTION 2 GENERAL SAFETY RULES…………………………………………….3 SECTION 3 PARTS DESCRIPTION………………………………..…………….…..6 SECTION 4 TECHNICAL DATA…………………………………………………...…..6 SECTION 5 ASSEMBLY…………………………………………………………….….7 SECTION 6 “3 IN 1”……………………………………………………………….…..9 SECTION 7 OPERATION INSTRUCTIONS……………………………………..…..11 SECTION 8 MAINTENANCE INSTRUCTIONS ……………………………..……...14 LUBRICATION INSTRUCTIONS …………………………………..….14 SECTION 9 SECTION 10 CLEANING………………………………………………………….…..14...

  • Page 3: Symbols Marked On The Product

    WARNING： For your own safety please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig.
  • Page 4 Training Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
  • Page 5 19. Stop the engine and disconnect the spark plug wire, make sure that all moving parts have come to a complete stop and, where a key is fitted remove the key, make sure engine has had time to cool: - Before unclogging the chute and clearing blockages. - Before checking, cleaning or working on the lawn mower.

  • Page 6: Parts Description

    3. PARTS DESCRIPTION Fig.C MX46SPH 1. Upper handle 2. Starter handle 3. Rope Guide 4. Locking Lever 5. Grass catcher 6. Height adjusting lever 7. Deck 8. Sideward flap 9. Spark Plug 10. Oil Cap 11. Fuel cap 12. Cable-clamp 13.

  • Page 7: Assembly

    5. ASSEMBLY FOLDING HANDLE For the MX46SPH 1. Fix the lower handlebars into the mower body with the locking knobs, bolts and washers as Fig. 1A,/Fig.1B/Fig.1C shown. 2. Lift the two locking levers to release the upper handlebars for folding. (Fig.1D) 3.
  • Page 8 5.4 STARTER HANDLE Move the starter handle from the engine to the rope guide. (Fig.4A, 4B) Fig. 4A MX46SPH 5.5 HEIGHT OF CUT Apply outward pressure to disengage the lever from the rack. Move lever forward or back to adjust the height. (Fig.5A see clause 7.9)

  • Page 9: In 1

    5.6 Tool Box For the MX46SPH This MX46SPH lawn mower has a tool box. Push the button to open it, and then press the cover to lock it. You can put tools such as spanners and screwdrivers in this box.
  • Page 10 TWO: Resetting for side-discharge mowing 1. Lift the rear cover and remove the grass catcher. 2. Mount the discharge channel. 3. Lift the sideward flap for side discharge (Fig.7D) 4. Mount the discharge guide for side discharge on the support pin of the sideward flap. (Fig.7E/Fig.7F) 5.

  • Page 11: Operating Instructions

    7. OPERATING INSTRUCTIONS 7.1 BEFORE STARTING Service the engine with petrol and oil as instructed in the separate engine manual packed with your mower. Read all instructions carefully. WARNING! Petrol is highly flammable. Store fuel in containers specifically designed for this purpose. Refuel outdoors only, before starting the engine and do not smoke while refueling or handling fuel.
  • Page 12 Start the engine carefully according to the instructions and with feet well away from the blade. Do not tilt the lawn mower when starting the engine. Start the mower on a level surface, free of high grass or obstacles. Keep hands and feet away from the rotating parts. Do not start the engine when standing in front of the discharge opening. 7.3 OPERATION PROCEDURES During operation, tightly hold the brake handle with both hands.
  • Page 13 CAUTION: before changing the mowing height, stop the mower and disconnect the spark plug cable. For the MX46SPH Your mower is equipped with a central height adjustment lever offering 7 height positions. The height (the blade to the ground) can be adjusted from 25 mm (position 1) to 75 mm (position 7).

  • Page 14: Maintenance Instructions

    8. MAINTENANCE INSTRUCTIONS SPARK PLUG Use only the original replacement spark plug. For best results, replace the spark plug every 100 hours of use. 9. LUBRICATION INSTRUCTIONS CAUTION: DISCONNECT THE SPARK PLUG BEFORE SERVICING. 1. WHEELS-Lubricate the ball bearings in each wheel at least once a season with a light oil. 2.
  • Page 15 Cobra Part Number 263002488 for the MX46SPH – Available to order from your local dealer. WARNING: Periodically inspect the blade adapter for cracks, especially if you strike a foreign object. Replace when necessary. For best results your blade should be sharp. Slightly worn blades may be re-sharpened with care. After removing the blade, it may be ground or filed, so that the cutting edge is as close to the original bevel as possible.

  • Page 16: Storage Instructions (Off Season)

    The following steps should be taken to prepare the lawn mower for storage at the end of the mowing season. 1. Drain the fuel from the engine by running the engine until it stops. Start the engine and let it run until it has used up all remaining petrol and stalls. Remove the spark plug.

  • Page 17: Trouble Shooting Guide

    12 TROUBLES SHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle chock not in the correct Move throttle chock to correct position start. position for the prevailing conditions. Fuel tank is empty. Fill tank with fuel: refer to ENGINE OWNERS MANUAL. Air cleaner element is dirty.

  • Page 18: Warranty

    Please Register Your Mower If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Cobra. You can register by completing and mailing the registration card that should be in the box or by going online to: www.cobragarden.co.uk and clicking on Product Registration.

  • Page 19: Ec-Declaration Of Conformity

    15. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
