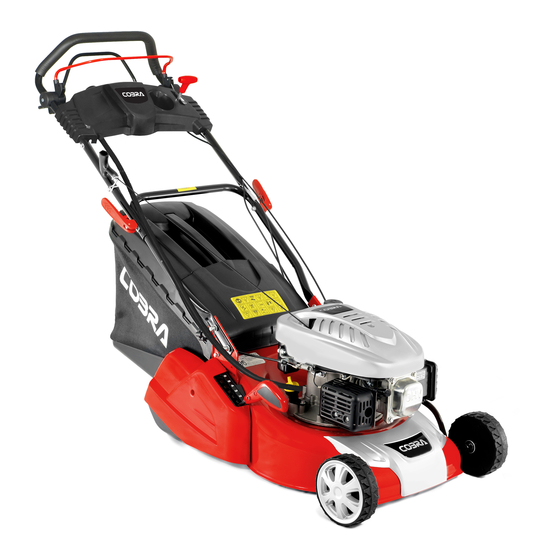

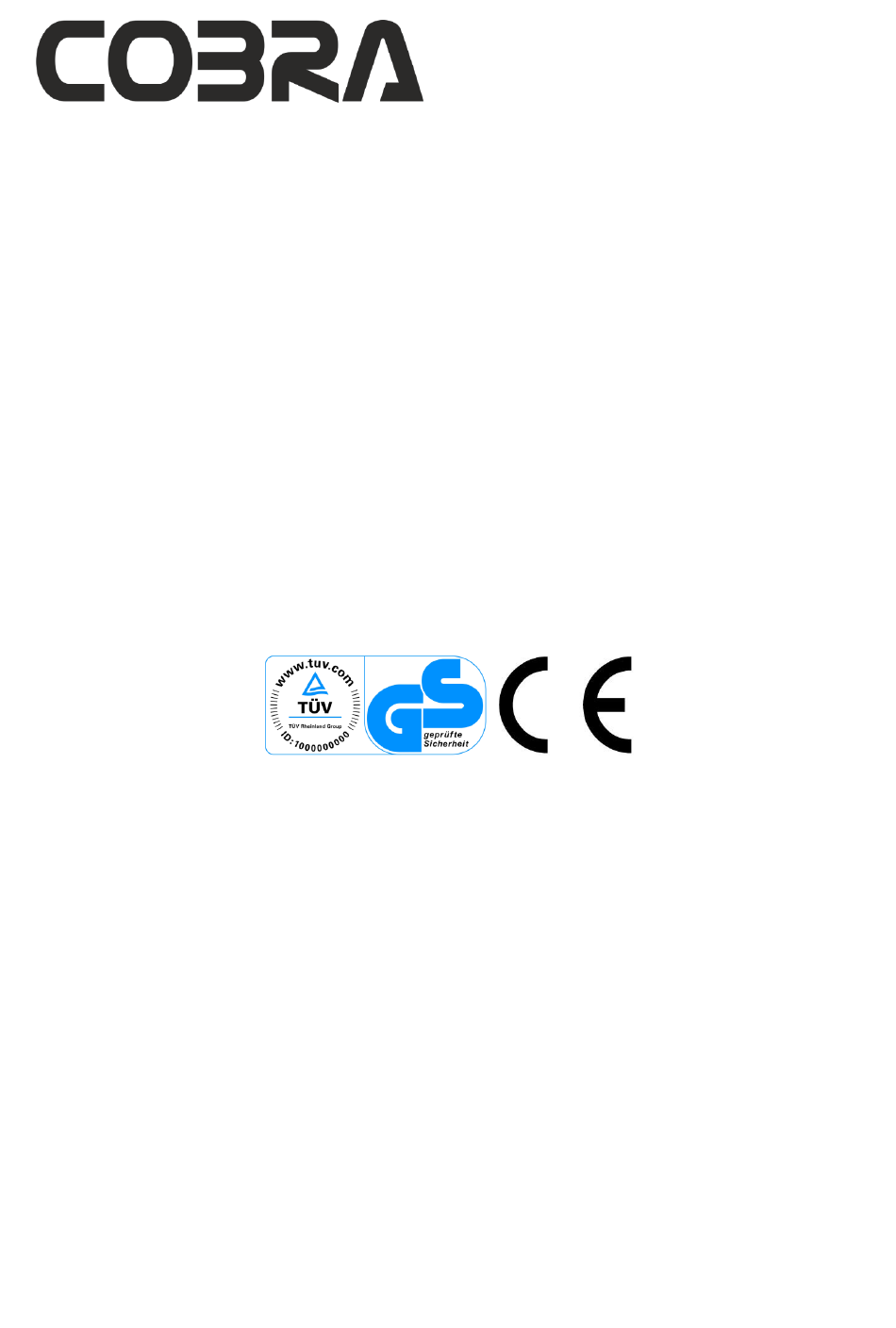

- Page 1 RM46SPCE COBRA LAWN MOWER OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk - 1 -...
-
Page 2: Table Of Contents
CONTENTS SYMBOLS MARKED ON THE PRODUCT…………………………… 3 SECTION 1 GENERAL SAFETY RULES…………………………………………… 3 SECTION 2 PARTS DESCRIPTION………………………………..…………….…. 6 SECTION 3 TECHNICAL DATA…………………………………………………...…. 6 SECTION 4 ASSEMBLY…………………………………………………………….… 7 SECTION 5 OPERATION INSTRUCTIONS……………………………………..…. 9 SECTION 6 MAINTENANCE INSTRUCTIONS ……………………………..……. 13 SECTION 7 LUBRICATION INSTRUCTIONS …………………………………..…... -
Page 3: Symbols Marked On The Product
WARNING： For your own safety please read this manual before attempting to operate your new mower. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarise yourself with your mower before each use. 1. SYMBOLS MARKED ON THE PRODUCT Fig. - Page 4 manufacturer before operating this machine. Training 1. Before using the lawnmower read the instructions carefully. Familiarise yourself with the controls and pay particular attention in learning how to stop the machine in an emergency. 2. Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
-
Page 5: Parts Description
grass. 16. Do not start the engine when standing in front of the discharge chute. 17. Never put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. 18. Always ensure the engine is fully switched off before picking up/carrying the Lawnmower. 19. -
Page 6: Technical Data
11. Cable clamp 12. Throttle choke lever 13. Self-drive control handle 14. Brake control handle 15. Key Ignition and Battery Charging point Including A: Spark plug wrench 4. TECHNICAL DATA Model RM46SPCE Engine type Cobra DG450 Self-Propelled Engine Displacement 135cm³ Blade Width... -
Page 7: Assembly
RM46SPCE Guaranteed Sound pressure level 86,0dB (A)(k=3 dB (A)) at operator’s position (According to EN 836 Annex H & EN ISO 4871) Measured sound power level 91,7dB (A) k= 1,81dB (A) Guaranteed Sound Power level 96dB(A) (According to 2000/14/EC) Vibration 2.988m/s²... - Page 8 5.3 STARTER HANDLE Engage the Brake control handle then move the starter handle from the engine to the rope guide. Fig.3A for the Cobra Engine 5.4 HEIGHT OF CUT Apply outward pressure to disengage the lever from the rack. Move lever forward or back to adjust height.
-
Page 9: Operation Instructions
Fig. 4 5.5 Rear Roller Your mower features a rear roller, which helps cut right up to the edge of borders and creates a traditional striped lawn finish. It is recommended to alternate the direction of mowing periodically, to improve turf growth. Vary the height of cut depending on the lawn and weather conditions. - Page 10 When starting a warm engine and operating, turn throttle choke lever to “ ” position. (Fig.6C) 4. Standing behind the mower grasp the brake control handle and hold it against the upper handle as shown in (Fig.6D) 5. Grasp the starter handle and pull up rapidly. Return it slowly to the rope guide bolt after engine starts. Release the brake control handle to stop the engine and blade (Fig.6D) Fig.6B Fig.6C...
- Page 11 Keep hands and feet away from the rotating parts. Do not start the engine when standing in front of the discharge opening. 6.3 OPERATION PROCEDURES During operation, tightly hold the brake handle with both hands. Note: During operation, when the brake handle is released, the engine will stop and thus stop the lawnmower from operating.
- Page 12 autumn months. Make sure they are dry and are not laying too thick on the lawn. Do not wait for all the leaves to be off the trees before you mow. WARNING: If the mower blade strikes a foreign object, then stop the engine. Remove the wire from the spark plug, thoroughly inspect the mower for any damage and repair the damage before restarting and operating the mower.
-
Page 13: Maintenance Instructions
5. Place a few drops of SAE30 oil on the foam filter and squeeze tightly to remove any excess oil. 6. Reinstall the filter. Fig.11C for Cobra engine Fig.11D for Cobra engine NOTE: Replace the filter if frayed, torn, damaged or unable to be cleaned. - Page 14 Possible damage resulting from blade unbalance condition is not the responsibility of the manufacturer. When you change the blade, you must use the original type marked on the blade (Cobra Part number 263001465. Please contact your local dealer to order a replacement) 9.4 ENGINE...
-
Page 15: Charging The Starter Battery
The starter battery is maintenance-free and is normally charged by the lawnmower. In certain cases, however, the battery will need to be charged by the user: 1. before the initial start-up of the lawnmower. 2. If discharged, before the winter season, or if left unused for long periods (> 6 months). Charging procedure: 1. - Page 16 CAUTION! The engine must have completely cooled down before storing the lawnmower. NOTE: - When storing any type of power equipment in an unventilated or material storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts.
-
Page 17: Troubleshooting Guide
12. TROUBLES SHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Engine does not Throttle choke not in the correct Move throttle choke to the correct position start. position for the prevailing conditions. Fuel tank is empty. Fill the tank with fuel: refer to the ENGINE MANUAL. -
Page 18: Warranty
Any damage that occurs from the use of non-genuine Cobra parts will not be covered. We reserve the right to reject any claim where the purchase cannot be verified or when it is clear that the product was not maintained properly. -
Page 19: Ec-Declaration Of Conformity
15. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery Henton & Chattell Ltd, London Road, Nottingham NG2 3HW United Kingdom That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
