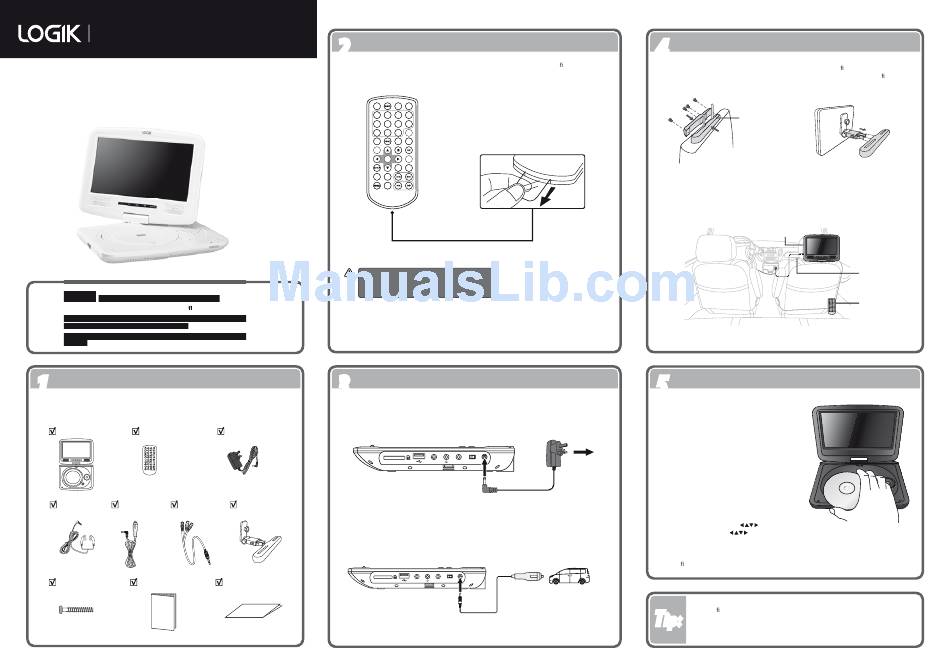

Quick Start Guide
9" Portable DVD Player
L9SPDW14
Thank you Thank you
for purchasing your new Logik DVD Player. for purchasing your new Logik DVD Player.
Please follow this quick start guide for a successful rst time set up. Please follow this quick start guide for a successful rst time set up.
We recommend that you spend some time reading the instruction manual in order to We recommend that you spend some time reading the instruction manual in order to
fully understand all the operational features it offers. fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep the instruction manual for Read all the safety instructions carefully before use and keep the instruction manual for
future reference. future reference.
1 1

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please
do so according to any local regulations.
DVD Player x 1 Remote Control x 1
STEP MUTE SOURCE
1 2 3 4
5 6 7 8
9 0 10+ DISPLAY
SUBTITLE AUDIO MENU
TITLE
ENTER MODE
VOL- VOL+
REPEAT SLOW
180°
ZOOM
OPEN
Earphone Car Power 3.5mm to RCA
Adapter AV Converter
Screws x 4 Instruction Manual
(ø4 x 25mm)
Inst ruct ion
Man ual
2 2

Operating your remote control

Remove the plastic strip from the battery if the battery is being used for the rst time. It
is located at the bottom end of the remote control.
STEP
MUTE
1 2 3
5 6 7
9 0 10+
SUBTITLE
AUDIO
TITLE
ENTER
VOL-
REPEAT SLOW
ZOOM
Install the batteries correctly by following the
polarity (+ and -) indications in the battery
compartment.
3 3

Power supply

Using the Mains Adapter
(for indoor use)
Mains Adapter
Mounting Kit x 1
Using the Car Power Adapter
(for in-car use)
DVD Player
(Right side)
Quick Start Guide
Quick Start Guide
SOURCE
4
8
DISPLAY
MENU
MODE
VOL+
DVD Player
(Right side)
AV OUT COAXIAL ON OFF DC IN 9-12V
To the Mains
Socket
To DC IN 9V-12V
Socket
AV OUT COAXIAL ON OFF DC IN 9-12V
To Cigarette Lighter
Socket
To DC IN 9V-12V
Socket
4 4

Mounting in a car

1. For car headrests which cannot be 2. Grip the DVD rmly with both hands
removed, secure the car mount as and slot the angled support rmly
shown: into the support bar. It will click.
Ensure the entire unit is secure.
Horizontal
support bar
3. Unscrew the bolts holding the horizontal mounting bar together. Slip both halves
of the mounting bar around the headrests' leg supports. Screw in the bolts,
loosely. Ensure that the mounting bar is level. Tighten the bolts.
Mounting Kits
(hidden by DVD unit)
STEP MUTE SOURCE
1 2 3
5 6 7
9 0 10+ DISPLAY
SUBTITLE AUDIO MENU
TITLE
VOL- VOL+
REPEAT SLOW
ZOOM
5 5

Basic operation

1. Slide the ON/OFF switch on the unit to the
ON position.
2. Press the OPEN switch on the unit to open
the disc cover.
3. Hold the disc by its edges and carefully
place onto the disc holder with the label
side facing up. Gently push the disc down
until you hear a "click".
4. Close the disc cover. The unit starts
playback if the disc does not have any
menus recorded on it. If the disc has one or
more titles recorded on it, a menu screen
will appear on the screen.
5. To play a title, press the buttons on
the unit or press the / 0-9 / 10+
buttons on the remote control to highlight
the track title and then press the ENTER
button on the unit or the remote control to
con rm.
T T
You will nd that there are many exciting features available.
ip: ip:
To get to know all these features, please take some time to read the
instruction manual provided.
DVD player
Car Power
Adapter
Remote
4
8
Control
QSG-L9SPDW14-140310V1
