DSA-5100 Installation Guide

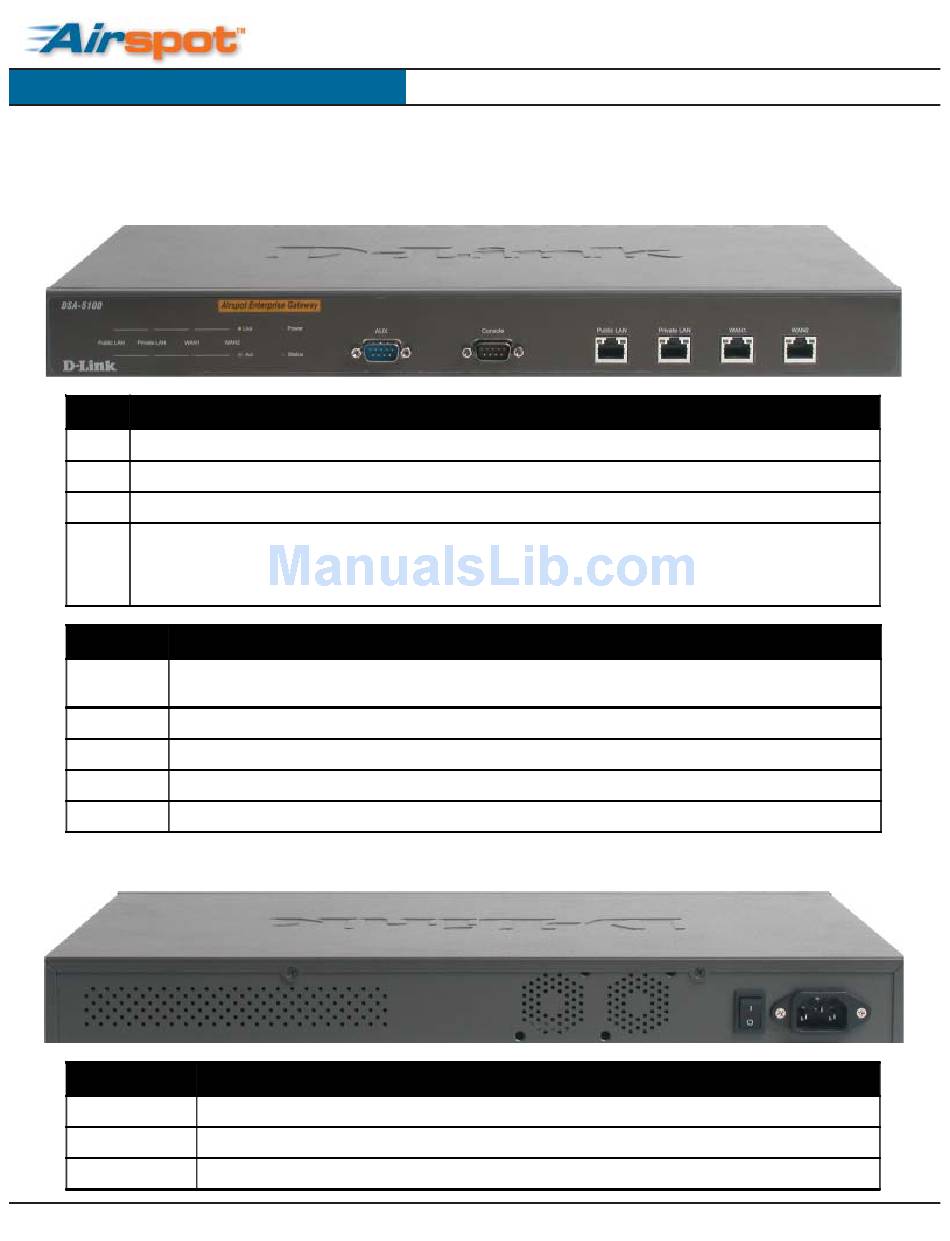

Hardware Overview
Front Panel
LED
Function
Link
Solid green indicates a good connection on the associated port.
Act
The Act LED flashes during data transmission on the associated port.
Power
A solid light indicates a proper connection to the power supply.
The status LED has three states:
• Unlit when the system's BIOS is loading or when powered off.
Status
• Flashing indicates the operating system is loading.
• Solid when the system is fully loaded and ready to use.
Port
Function
Direct connection to your computer's serial port using an RS-232 cable for gateway configuration.
Console
(The console settings are: Bits per second: 115200, Data bits: 8, Parity: None, Stop bits: 1)
Public LAN
Connects to your open network environment. Requires authentication to use network resources and Internet.
Private LAN
Connects to your trusted internal network. Authentication is not required to access network resources.
WAN1
Connects to your Internet connection or Intranet.
WAN2
Connects to your Internet connection or Intranet.
Rear Panel
Item
Power Connector
Power Switch
Cooling Fans
Description
The power cord attaches here.
Powers the unit off and on.
Be sure to keep the unit in a well ventilated area and do not block the cooling fan vents.
2
Hardware Overview
